Intelligent Automatic Pipe Storage System

In today’s competitive industrial landscape, the efficient management of raw materials has transitioned from an operational convenience to a strategic imperative. For facilities handling substantial volumes of steel pipes, seamless tubes, alloy tubing, and structural profiles, traditional storage methods—floor stacking, manual racking, or crane-dependent systems—consistently underperform. They consume excessive floor space, create safety hazards, slow down production workflows, and incur significant labor costs.

The Herochu Intelligent Automatic Pipe Storage System represents a fundamental paradigm shift in how factories store and retrieve long-profile materials. By integrating advanced robotics with robust structural engineering, Herochu delivers a solution that transforms chaotic warehouses into precision-driven logistics hubs.

Engineering Excellence Behind the Automation

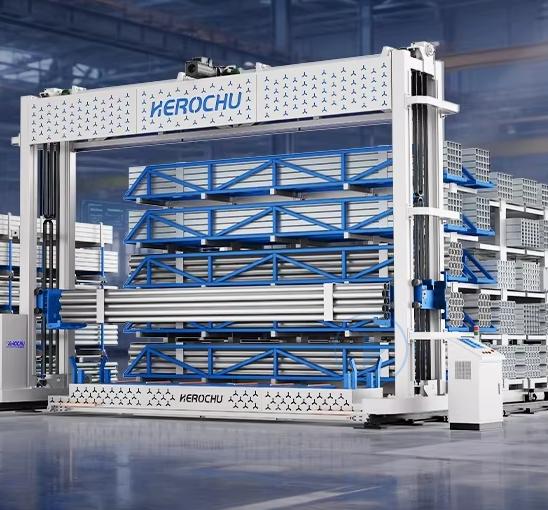

At the core of the Herochu Intelligent Automatic Pipe Storage System lies a meticulously engineered structure comprising four essential components: a loading and unloading gantry system, profile material racks with customizable configurations, material frames designed to securely hold single or bundled profiles, and precision linear guide rails paired with a robust chain-driven transmission system.

The system’s motion architecture combines linear guide rails for horizontal stability with a heavy-duty chain transmission for vertical lift, achieving impressive operational speeds: 9 meters per minute for vertical elevation and 12 meters per minute for inlet and outlet operations. This performance ensures that even during high-demand production shifts, pipe retrieval never becomes a bottleneck.

Constructed from high-strength structural steel with a durable powder-coated finish, the entire structure is built to withstand daily industrial use while resisting corrosion, impact, and wear.

Technical Specifications That Set the Standard

The Herochu Intelligent Automatic Pipe Storage System is engineered with precision and performance in mind. Standard configurations accommodate material lengths of 6000mm, with customization options available to handle bundles up to 8000mm or even 12 meters. Each storage cell measures 600mm × 500mm, designed to evenly support long profiles and prevent sagging or warping over extended storage periods.

The system supports load capacities ranging from 1000kg to 10000kg per unit, with individual rack layers supporting 3 to 5 metric tons. The number of storage floors is fully customizable based on facility ceiling height and inventory volume, with standard configurations offering 8 to 13 levels. Positioning accuracy achieves ±2mm repeatability through high-precision linear guide rails, ensuring smooth, damage-free transfers.

Space Optimization and Operational Efficiency

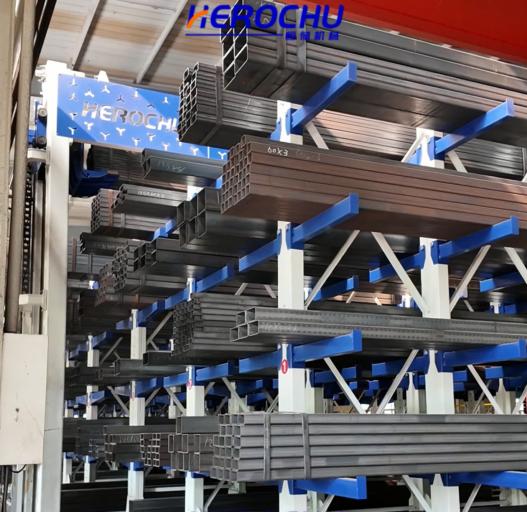

One of the most compelling advantages of the Herochu Intelligent Automatic Pipe Storage System is its ability to maximize vertical space without sacrificing operational speed. By stacking materials vertically along a single shared gantry aisle, the system eliminates the wide access lanes required by traditional forklifts, reclaiming 50% to 80% of warehouse floor space.

Various profiles can be densely and orderly stacked in the vertical storage area, saving a significant amount of production space. This makes the process of searching for materials substantially easier, and the retrieval and storage process becomes more convenient and efficient.

Intelligent Control and Seamless Integration

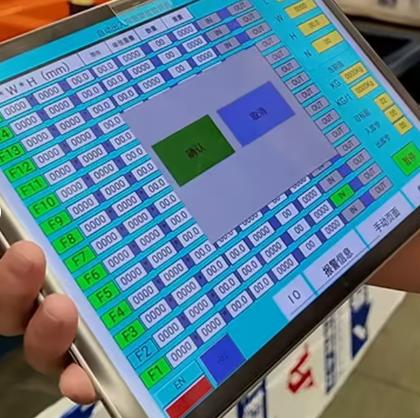

The Herochu Intelligent Automatic Pipe Storage System employs advanced management and control systems that enable the completion of entire loading and unloading operations through an operator console. This liberates manpower from repetitive material handling tasks, allowing personnel to focus on higher-value activities.

Items can be retrieved as needed and placed neatly, saving space while providing clearer visibility into inventory quantity and stock levels. The system supports real-time digital inventory management and seamlessly connects with factory ERP and MES platforms, enabling true smart factory integration.

Built for Reliability and Safety

Every Herochu Intelligent Automatic Pipe Storage System holds CE, EU, and ISO 9001 certifications, reflecting the company’s commitment to meeting strict international standards for safety, performance, and quality. This isn’t just a storage solution—it’s a long-term investment in reducing operational friction, minimizing material damage, and freeing teams to focus on high-priority tasks instead of manual handling.

The system features real-time load monitoring and laser obstruction sensors that automatically halt operation during misalignments or overloads, ensuring both equipment and personnel safety.
