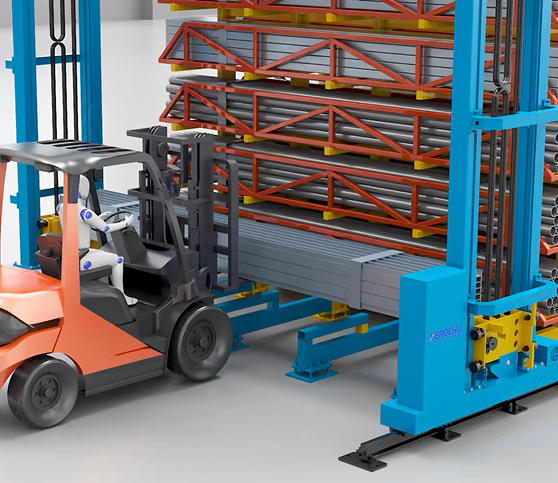

Automatic profile storage warehouse system

Herochu Automatic Profile Storage Warehouse System: Your Workshop’s Smart Storage Solution

The Herochu Automatic Profile Storage Warehouse System represents a groundbreaking leap forward in material handling and storage optimization. Designed for workshops and manufacturing facilities that work with long profiles, this innovative system transforms how you organize, store, and retrieve materials, creating a seamless flow between your warehouse and production lines.

Customizable Design for Your Unique Needs

Starting at $39,999, Herochu’s system is fully customizable to fit your workshop’s specific requirements. Whether you’re working with aluminum, steel, or other profile materials, our engineers can tailor the system to accommodate your materials’ dimensions, weights, and production volumes.

Key Features:

• Double Tower Design: Comprising a 17-layer feed tower and 19-layer main material tower, totaling 36 storage locations
• Spacious Bins: Single-storey 470mm bins can store profiles up to 6000mm in length and 220mm in diameter
• High Capacity: Each bin boasts a rated load capacity of 3000kg
• Precise Movement: Linear guide rail + chain transmission system with vertical lifting speed of 9m/min
• Efficient Material Flow: Inlet and outlet speed of 12m/min for quick access to your materials

How It Works: A Seamless Material Flow System

The Herochu system is designed to create an efficient buffer between your warehouse and coating plant, optimizing material transfer and reducing downtime.

Two Independent Loading/Unloading Stations

• Easy access to stored materials from both sides
• Minimized waiting times for material retrieval
• Improved workflow efficiency

Vertical Lift Transport System

• Profiles are transported to predetermined locations on the rack
• Quick and easy loading/unloading of stock
• Reduced manual handling and associated risks

Comprehensive System Components

The Herochu Automatic Profile Storage Warehouse System includes:

1. Loading and Unloading Gantry System: Provides precise positioning for material placement
2. Profile Material Racks: Customizable in number of layers and quantity
3. Material Frames: Designed to hold single or bundled profiles of various types
4. Guide Rails: Ensure smooth and accurate movement of materials
5. High-Capacity Structure: Built for durability and long-term reliability

The Herochu Advantage: Why Choose Our System?

1. Unmatched Space Optimization

• Maximizes storage capacity in limited workshop spaces
• Reduces the need for additional storage areas
• Improves overall workshop organization

2. Enhanced Operational Efficiency

• Significantly reduces material handling time
• Minimizes production bottlenecks
• Enables just-in-time material delivery to production lines

3. Improved Work Safety

• Reduces or eliminates manual handling of heavy materials
• Lowers the risk of workplace injuries
• Creates a safer working environment

4. Superior Stock Management

• Real-time inventory tracking capabilities
• Reduces stock shortages and overages
• Enables better production planning

5. Cost-Effective Solution

• Lowers overall material handling costs
• Reduces labor requirements
• Increases return on investment through improved efficiency

Technical Specifications

Feature	Specification
Overall Length	6000mm
Number of Floors	Customizable
Load per Layer	3T
Movement Mode	Linear Guide Rail + Chain
Transmission Mode	Chain Drive
Vertical Lifting Speed	9m/min
Inlet/Outlet Speed	12m/min
Size of Each Grid	600mm × 500mm
Number of Storage Units	Customizable

Industry Certifications

The Herochu Automatic Profile Storage Warehouse System proudly carries:

• CE Certification
• UE Certification
• ISO 9001 Quality Management System Certification

These certifications ensure that our system meets the highest international standards for quality, safety, and performance.

Why Workshops Choose Herochu

For Coating Plants

• Acts as an efficient buffer between warehouse and coating line
• Ensures continuous material supply to coating operations
• Reduces downtime between coating batches

For Manufacturing Facilities

• Improves material flow throughout the production process
• Enables just-in-time material delivery
• Reduces work-in-progress inventory

For Warehouses

• Maximizes storage capacity
• Improves inventory accuracy
• Reduces material handling costs

The Future of Workshop Storage

The Herochu Automatic Profile Storage Warehouse System isn’t just a storage solution – it’s a strategic investment in your workshop’s future. By automating material handling, you’re not just saving space and time; you’re creating a more efficient, safer, and more productive work environment.

Get Started Today

Transform your workshop’s material handling system with Herochu. Contact us today to discuss your specific requirements and discover how our customizable Automatic Profile Storage Warehouse System can revolutionize your operations.

Remember, this system isn’t just about storage – it’s about creating a smarter, more efficient workshop that can compete in today’s fast-paced manufacturing environment. Invest in Herochu and invest in your workshop’s future.
