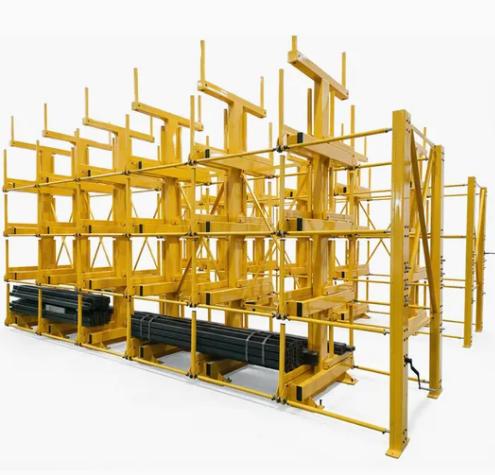

Roll Out Manual Cantilever Storage Rack

Industrial warehouses storing long, heavy materials such as steel pipes, profiles, and tubes face a persistent operational challenge: how to access stored materials efficiently without compromising safety or space utilization. Traditional fixed cantilever racks require wide forklift aisles that consume valuable floor space, and operators often struggle to maneuver heavy pipes into tight storage positions. Herochu has engineered a solution through its Roll Out Manual Cantilever Storage Rack—a pipe profile warehouse storage system that transforms material handling efficiency through innovative crank-out technology.

Manual Crank Mechanism for Space-Saving Loading and Unloading

The defining feature of Herochu’s Roll Out Manual Cantilever Storage Rack is its manual crank mechanism, which enables space-saving loading and unloading without requiring cumbersome lifting or reaching. Unlike fixed cantilever racks that demand forklifts to navigate narrow aisles and insert forks into high slots, this system brings the material out to the operator. A simple crank turn extends the cantilever arms outward from the column, allowing operators to access pipes and profiles at the aisle face rather than reaching deep into the rack. This design breakthrough eliminates the struggle of maneuvering pipes into tight spaces and eliminates the time wasted coordinating multiple workers for basic tasks.

Corrosion-Resistant Construction for Long-Term Durability

Industrial storage environments demand equipment that can withstand continuous use and exposure to harsh conditions. Herochu’s roll out manual cantilever storage rack features corrosion-resistant construction that protects against rust for long-lasting durability. The rack is fabricated from premium structural steel and treated with a durable electrostatic powder coating that provides a critical layer of protection against corrosion. The galvanized steel frame ensures stability and strength for heavy loads, maintaining structural integrity throughout years of industrial use.

High Load Capacity for Pipe and Profile Storage

The Roll Out Manual Cantilever Storage Rack delivers impressive load-bearing capability, with each arm supporting substantial weights in standard configurations. Single-layer load-bearing capacity ranges from 3 to 8 tons, with the actual capacity determined by arm depth and the number of load points per arm. This capacity makes the system suitable for storing everything from lightweight aluminum profiles to heavy industrial steel pipes. The Q235B high-strength steel frame with dual-beam crossbar design ensures exceptional load-bearing capabilities without structural deformation.

Customizable Layers and Flexible Configuration

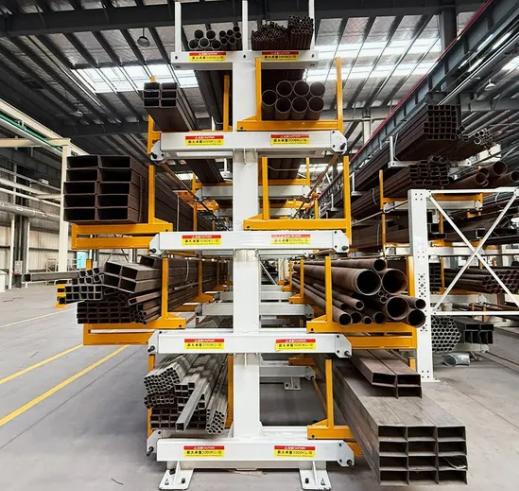

Every warehouse has unique storage requirements. Herochu’s roll out manual cantilever storage rack offers customizable layers, allowing facilities to tailor the number of shelves according to their specific space and needs. The system accommodates pipe lengths from 6 meters to 12 meters with adjustable compartment dimensions. Arm length, load capacity, number of layers, and layer height can all be customized to meet specific industrial requirements. This flexibility ensures that the system can be configured for diverse applications, from steel pipe storage to aluminum profile management.

Independent Compartments per Tier

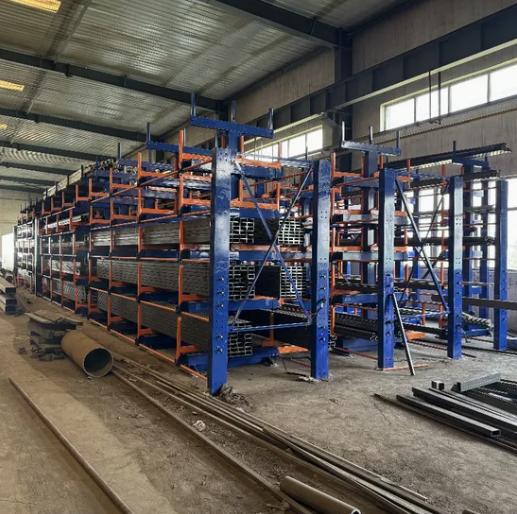

The roll out manual cantilever storage rack incorporates independent compartments per tier, providing dedicated storage on both sides of the rack structure. This classified storage approach enables facilities to organize different material types in separate compartments—carbon steel pipes on one side, stainless tubing on the other, aluminum extrusions on a separate row—all within the same footprint. This organization reduces search time, minimizes material damage, and improves overall warehouse efficiency.

Electrostatic Powder Coating for Enhanced Longevity

The surface treatment of the roll out manual cantilever storage rack plays a crucial role in its long-term performance. Herochu applies electrostatic powder coating that provides a smooth finish and enhances the shelf’s longevity. This coating process creates a durable, corrosion-resistant surface that withstands the rigors of daily industrial use while maintaining an attractive appearance. The powder-coated finish also facilitates easier cleaning and maintenance, contributing to a cleaner, more professional warehouse environment.

Plug-In Installation for Convenient Setup

Time-efficient installation is essential for minimizing operational disruption. Herochu’s roll out manual cantilever storage rack features plug-in installation, enabling easy setup with minimal tools required for convenient use. This straightforward assembly process reduces downtime during installation and allows facilities to quickly implement organized storage solutions without extensive construction or specialized labor.

Safety and Operational Efficiency

Safety is a critical consideration in industrial material storage. Poorly stacked pipes and manually arranged long materials can easily cause rolling, falling, or handling accidents. Herochu’s roll out manual cantilever storage rack provides stable storage positions that keep materials securely organized and reduce potential workplace hazards. The manual crank mechanism eliminates the need for workers to reach deep into racks or lift heavy materials manually, significantly reducing the risk of ergonomic injuries. Optional safety accessories, protective components, and customized structural solutions can be added according to different operating conditions.

Applications Across Industries

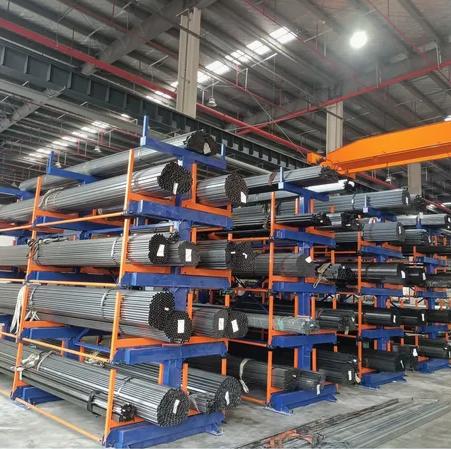

The Roll Out Manual Cantilever Storage Rack is suitable for a wide range of industries, including steel processing plants, metal manufacturing facilities, automotive suppliers, engineering workshops, logistics centers, and construction material warehouses. It is particularly effective for facilities that handle long, heavy materials requiring frequent access and where floor space is at a premium.

Herochu’s Roll Out Manual Cantilever Storage Rack represents a transformative approach to pipe and profile warehouse storage. By combining a manual crank mechanism with corrosion-resistant construction, high load capacity, customizable layers, independent compartments, electrostatic powder coating, and plug-in installation, this system delivers the efficiency, safety, and performance that modern industrial warehouses demand.
