Pipe yards and bar stock warehouses share a common bottleneck: material arrives in long lengths, often in mixed bundles, and has to be stored in a way that protects the product while keeping it accessible for daily order picking. Stacking everything on the floor might be the default answer, but it is also the most expensive one when you factor in floor space, material damage, and the labor hours wasted on searching. Herochu’s heavy-duty steel cantilever rack provides a structural alternative — purpose-built compartments, Q235B steel frame, and mechanical crank loading that together turn a chaotic storage yard into a systematic material management hub.

Compartment-Based Storage: One Product, One Location

Mixed storage is the enemy of fast picking. When a pipe yard dumps 2-inch, 3-inch, and 4-inch schedule-40 pipes into a single floor pile, every pick requires sorting. The forklift operator lifts the top bundle to reach the one underneath, sets it aside, and tries to remember where it went when the next order calls for that size. Multiply this by dozens of SKUs across multiple grades and finishes, and a service center’s picking speed grinds to a fraction of what the equipment and workforce could achieve.

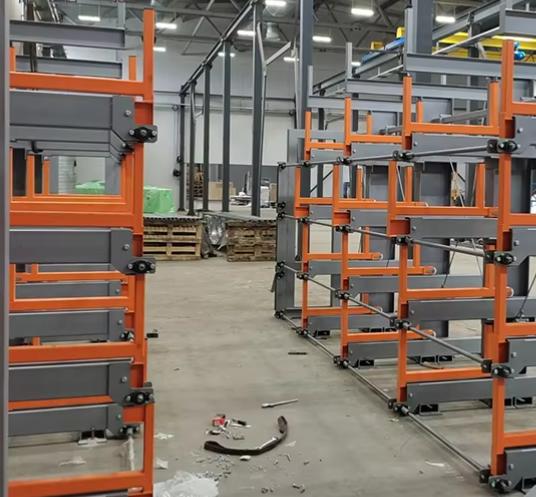

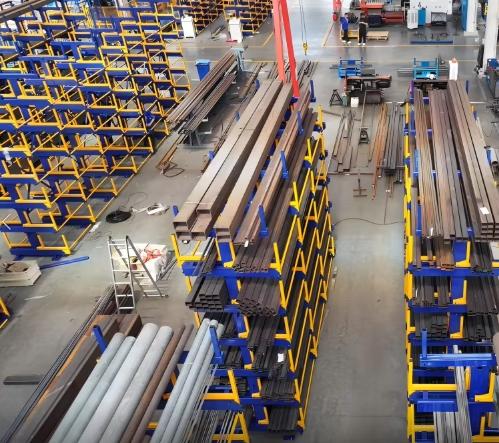

Herochu cantilever racks solve this with independent compartments. Each tier houses a dedicated storage bay on both sides of the upright column. One compartment holds 6-meter lengths of 2-inch carbon steel pipe. The next compartment over holds 3-inch stainless tubing. A separate bay stores flat bar stock or angle iron. The compartments are physically separated by the column structure and arm spacing, so materials never mix. Operators read the compartment label, drive to the location, and retrieve the bundle — no sorting, no double-handling, no guesswork.

This compartment approach also supports inventory accuracy. When every SKU has an assigned bay, cycle counting becomes a walk-through exercise rather than a forklift-intensive project. The shelf label matches the warehouse management system entry, and the physical stock either matches the count or it does not — there is no ambiguity about whether a missing bundle is buried somewhere under a different pile.

Heavy-Duty Load Capacity Across the Model Range

Herochu builds the pipe and bar stock cantilever rack in four configurations that scale with material length and weight requirements. The following table lays out the base specifications:

The 3-ton and 5-ton ratings represent working loads — the weight each compartment carries day in and day out without progressive deformation. Behind these numbers, Herochu tests every design at 150 percent of rated capacity to confirm structural integrity under overload conditions. A 5-ton compartment undergoes static loading at 7.5 tons, and the permanent deflection after unloading must stay below half a percent of the arm span.

For bar stock applications, the 5-ton rating on the HC-G9065 and HC-G12065 models proves particularly relevant. Solid round bars pack densely — a single compartment stacked with 50-millimeter diameter bars can easily approach 4 to 5 tons. The dual-beam crossbar design in Herochu’s frame distributes this weight across multiple arm connections, preventing the localized bending that would eventually sag a conventional single-arm cantilever.

Q235B Steel and Dual-Beam Crossbar Construction

The frame material matters because industrial racking operates in conditions that office furniture never sees. Pipe yards are humid from cutting fluid mist. Outdoor storage bays cycle through temperature swings that condense moisture on steel surfaces. Forklift impacts are not a design load on paper but they happen in practice. Herochu builds columns, arms, and crossbars from Q235B carbon structural steel — a grade with 235 MPa minimum yield strength, good weldability, and sufficient ductility to absorb occasional impact without brittle fracture.

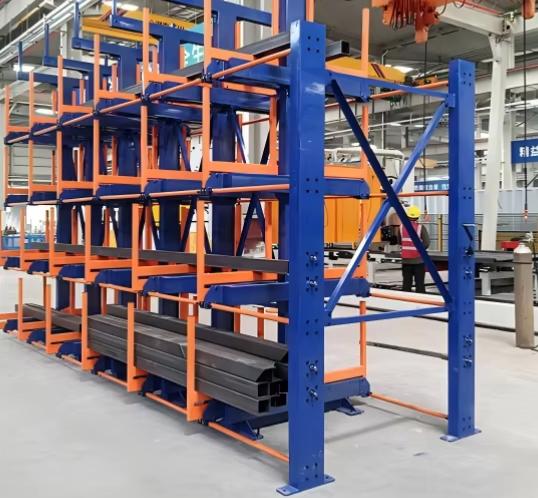

The dual-beam crossbar deserves attention as the structural feature that separates Herochu racks from commodity cantilever systems. In a standard design, each arm functions independently — bolted to the column at one end, free at the other. Under load, the bending moment concentrates at that single connection. Over years of service, the bolt holes elongate slightly, the arm droops, and operators start shimming to compensate.

Herochu adds a horizontal crossbar that ties the free ends of adjacent arms together on the same tier. This simple addition changes the load path. Instead of each arm fighting its own bending moment alone, the crossbar redistributes weight so neighboring arms share the burden. Peak stress at any single connection drops. Deflection stays uniform across the entire tier. The arms return to true alignment when unloaded. For warehouse managers who include rack condition in their annual safety audits, straight arms year after year mean one less item on the corrective action list.

Manual Crank for Controlled Pipe and Bar Loading

Long steel products create a handling challenge that palletized goods never do. A 12-meter bundle of pipe suspended from a single crane hook swings like a pendulum. Even experienced crane operators need multiple approaches to line up the bundle with the target compartment, and each failed attempt risks bumping into adjacent bays.

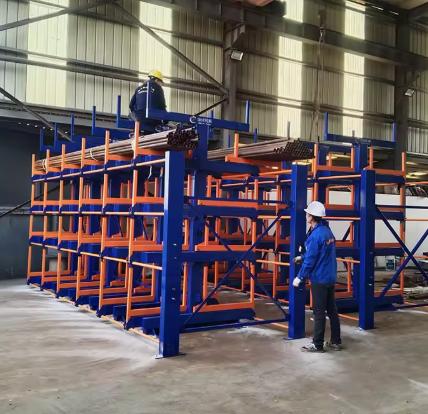

Herochu integrates a manual crank mechanism into the loading system. The crane operator lowers the bundle into the compartment bay — rough positioning is acceptable — and a ground-level operator uses the hand crank to guide the bundle along the arm to its final resting position. The crank’s gear reduction converts the weight of a 5-ton load into manageable hand-wheel effort. This two-step loading process — crane for vertical lift, crank for horizontal positioning — eliminates the precision demands on crane operators and prevents the side-to-side drift that causes collision damage between compartments.

For bar stock, the crank adds particular value during unloading. Dense bundles of solid round bars create considerable friction against the arm surface. Dragging a 4-ton bar stock bundle off the rack with a crane alone risks jerking the load and damaging adjacent compartments. The crank provides controlled, incremental withdrawal that keeps the bundle stable throughout the extraction.

Material Discharge: Dual-Side Mechanical Assistance

All four models in the Herochu pipe cantilever rack lineup feature dual-side mechanical assistance for material discharge. This means operators can load or unload from either side of the rack — a practical advantage that shapes how facilities design their material flow.

Consider a service center that receives inbound pipe shipments on the north dock and ships customer orders from the south dock. With dual-side access, receiving loads pipe into compartments from the north side while order pickers retrieve from the south side. The two workflows never cross paths. Forklifts do not queue. Operators do not wait for someone else to finish before accessing a bay.

The mechanical assistance component ensures that loading and unloading happen at the same controlled speed regardless of which side the operator uses. Both sides of the rack connect to the same crank-driven carriage system, so the loading precision is identical from either approach.

Adjustable Clear Space Between Layers

Pipe diameters vary from 15-millimeter thin-wall tubing to 300-millimeter heavy-wall pipe. A rack with fixed arm spacing wastes vertical space on small-diameter products and cannot fit large-diameter products at all. Herochu designs adjustable clear space into every model.

The base configuration starts at 600 millimeters between layers — enough room for most standard pipe diameters with clearance for fork blades or crane slings. Facilities that store predominantly large-diameter pipe can increase this spacing during installation or reconfigure later as inventory mix changes. Facilities storing small-diameter tubing can tighten the spacing to add more layers within the same column height, increasing storage density without expanding the rack footprint.

Arm positions bolt to the column with pre-drilled hole patterns at regular intervals. Adjusting arm height means unbolting, repositioning, and re-torquing — a straightforward procedure that takes minutes per arm and requires no cutting, welding, or fabrication.

Protecting Bar Stock and Pipe Quality

Material damage in storage erodes profit margins silently. A scratched stainless pipe that cannot ship as prime product sells for less. A bent bar stock length that needs straightening before machining adds labor cost. A dented aluminum tube that gets scrapped entirely represents 100 percent material loss.

Herochu cantilever racks prevent these losses through separation. Pipes rest on flat arm surfaces with no contact between layers. Bar stock sits on arms with a slight inward tilt — typically 2 to 3 degrees — that guides round products toward the column rather than toward the open aisle where they could roll off. The powder-coated finish on the arms provides a smooth, non-abrasive surface that does not mar pipe or bar finishes during loading and unloading.

Independent compartments eliminate the damage that occurs when workers pull pipes from the middle of a stacked pile. There is no pile to dig through — each bundle has its own bay, and retrieving it does not disturb any other material in the rack.

Certification and Quality Assurance

Herochu manufactures the heavy-duty pipe and bar stock cantilever rack under ISO 9001 certified quality management. Material certificates for incoming Q235B steel are verified against purchase specifications before fabrication begins. Weld inspections follow a documented checklist. Dimensional checks at final assembly confirm that bolt-hole alignment, arm spacing, and column verticality meet design tolerances.

Completed racks carry CE marking, indicating compliance with European health and safety requirements for industrial storage equipment. The structural design meets the load-rating standards that insurers and workplace safety regulators expect. For facilities operating under ISO 14001 or OHSAS 18001 management systems, the documentation package that ships with each rack supports audit requirements for equipment procurement and safety verification.

Operational Life and Reconfigurability

A cantilever rack represents a long-term capital investment — most installations remain in service for 15 to 20 years or longer. During that span, a facility’s inventory mix changes. The products stored today may differ from the products stored five years from now. Herochu’s bolt-together design supports this reality. Arm spacing adjusts without cutting or welding. Bays can be added to an existing row by extending the column line. Entire rows can be relocated within the facility if the floor plan changes.

The manual crank mechanism uses sealed bearings and hardened gear surfaces that maintain smooth operation through years of daily use. Periodic lubrication of the crank assembly — a five-minute task at each bay — constitutes the primary maintenance requirement. There are no motors, sensors, or control systems to calibrate or repair. This mechanical simplicity keeps the total cost of ownership low and eliminates the downtime risk that comes with more complex automated storage systems. For pipe yards and bar stock warehouses that need reliable, heavy-duty storage without adding maintenance complexity to their operations, the Herochu cantilever rack delivers a straightforward, durable solution.
