Servo-Driven Swing Feeder: Precision Loading for Laser Cutting

In the competitive landscape of modern metal fabrication, efficiency and precision are not merely goals but prerequisites for survival. The loading of raw materials, particularly steel plates, has long been a bottleneck in the production workflow. Traditional methods often rely on manual labor or outdated pneumatic systems that lack the finesse and speed required by contemporary CNC laser cutters. To address these challenges, Herochu introduces its advanced Servo-Driven Swing Feeder, a sophisticated material handling solution designed to redefine the standards of automated loading. This system is engineered specifically for high-volume environments, offering a seamless integration of power, intelligence, and reliability. By combining a robust mechanical structure with state-of-the-art control technology, the Herochu servo swing feeder ensures that steel plate loading is no longer a limiting factor in productivity. It guarantees consistent, high-speed operation, allowing fabricators to maximize the utilization of their laser cutting machines around the clock. This article explores the technical attributes and operational benefits of this essential component in the automated factory.

Core Technology and Performance

The operational heart of the Herochu Servo-Driven Swing Feeder lies in its intelligent control architecture. Unlike pneumatic manipulators, which often require manual handle guidance and have limited speed control, this unit operates on a fully automatic servo-driven platform. The integration of a genuine Siemens PLC (Programmable Logic Controller) serves as the central nervous system, orchestrating all movements—from the vertical lift and horizontal swing to the precise placement of the steel plate. This fully automated approach ensures that once a program is selected, the system operates with zero operator intervention for the loading cycle. The independent touch screen control panel on the Herochu unit allows operators to preset multiple loading programs, catering to a variety of steel sheet sizes and weights with just a few taps, dramatically reducing setup time between production runs.

Unmatched Precision and Speed

Precision is non-negotiable in laser cutting, and the Herochu swing feeder excels in this domain through its advanced servo control technology. The Siemens S7 PLC and servo drive system work in concert to achieve a steel plate positioning repeatability of within ±0.5mm. This level of accuracy ensures that every sheet is placed precisely on the laser cutting bed, optimizing material usage and minimizing scrap. The system utilizes a servo encoder feedback loop, which constantly monitors and adjusts the position of the swing arm, ensuring consistent placement even during high-speed operation. Speed is another critical advantage. The servo motor swing arm completes a full loading cycle—from pickup to placement—in under 10 seconds, significantly out-pacing manual operations. This rapid cycling allows the Herochu system to support continuous 24/7 production, feeding the laser cutter at a rate that matches its high-speed cutting capabilities.

Robust Design for Heavy-Duty Applications

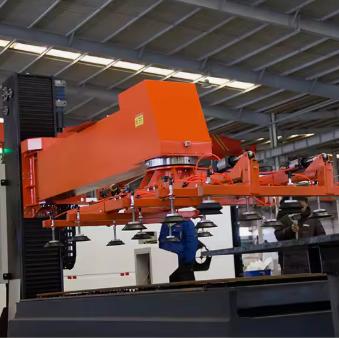

Herochu engineers have designed this equipment for the demanding environment of a steel service center. The heavy-duty industrial build begins with a welded steel frame and a sturdy floor-mounted column that ensures stability during operation. The manipulator is capable of handling steel plate loads up to 500kg, making it suitable for a wide range of applications. The system features a 600W motor that provides the necessary power for reliable operation. To guarantee longevity and consistent performance under continuous heavy loads, the unit is equipped with hardened guide rails and a precision gear reducer that minimize wear and tear. This robust construction ensures that the Herochu Servo-Driven Swing Feeder remains a reliable workhorse for years, providing a fast return on investment through labor reduction and increased laser cutter uptime.
