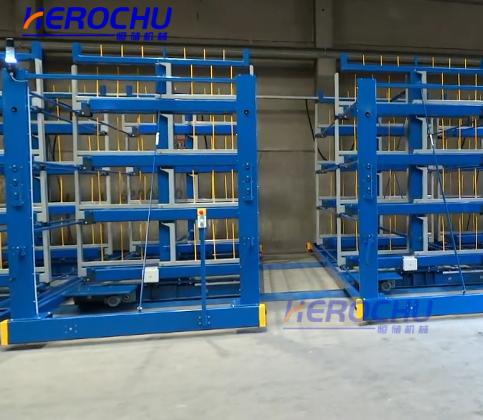

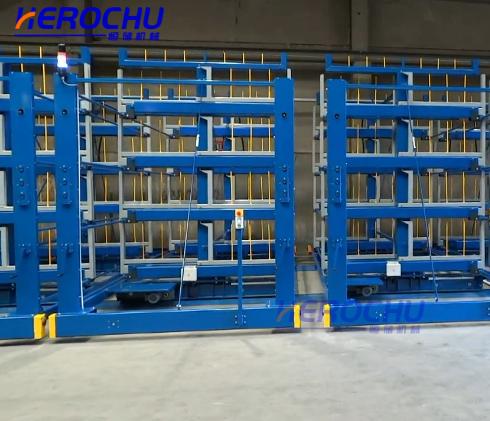

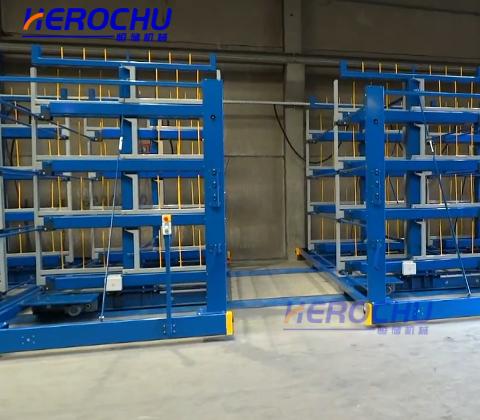

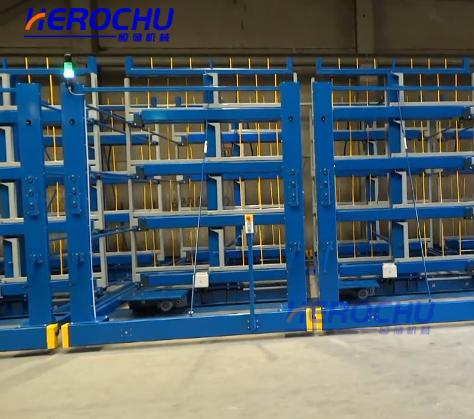

Industrial Cantilever Storage Rack for Steel Bar & Pipe

Steel service centers and metal fabrication shops manage an inventory problem that standard pallet racking cannot solve. Steel bars arrive in lengths of 6 to 12 meters. Round pipes, square tubes, flat bars, and angle irons all demand dedicated storage that prevents bending, isolates grades, and lets operators retrieve the right material without reshuffling half the warehouse. Herochu addresses this with an industrial cantilever storage rack system built around a dual-beam crossbar frame — a structural approach that distributes heavy loads across multiple support points rather than concentrating stress at single arm connections.

Why Standard Racking Fails for Long Steel Products

Pallet racks work because pallets are uniform. A 48-by-40-inch pallet slides onto a pair of beams, the weight distributes evenly across two supports, and the system functions predictably for decades. Steel bars break that model. A 9-meter length of 50-millimeter diameter round bar weighs over 140 kilograms and spans far beyond any pallet rack beam pair. Support it at only two points and the unsupported center section sags under its own weight. Support it poorly and the bar rolls, slides, or drops when an operator attempts retrieval.

Cantilever racks resolve this by providing multiple support arms along the length of the material. Each arm carries a fraction of the total weight, keeping deflection within acceptable limits. But not all cantilever racks distribute load equally well. Herochu’s dual-beam crossbar design takes the concept further by connecting adjacent arms on the same tier with a horizontal structural tie. This transforms individual cantilever arms — each fighting gravity alone — into a unified load-sharing assembly.

Dual-Beam Crossbar: Engineering That Prevents Sag

A conventional cantilever arm bolts to the upright column at a single point. The arm functions as a true cantilever: fixed at one end, free at the other. Under a 3-ton load, the bending moment at the connection point is substantial. Over hundreds of loading cycles, microscopic yielding at the bolt hole can accumulate into visible arm droop. Operators compensate by shimming or over-tightening bolts — temporary fixes that mask a structural problem.

Herochu’s dual-beam crossbar ties the free ends of adjacent arms together with a horizontal beam. This connection changes the load path. Instead of each arm acting independently, the crossbar redistributes weight so that a heavy load on one arm receives partial support from its neighbors. The result is lower peak stress at any single connection point and more uniform deflection across the entire tier. For facilities storing dense bar stock — where a single compartment might hold several tons of solid round bars stacked three or four rows deep — this load-sharing behavior keeps the rack straight over years of heavy use.

Q235B Steel: The Right Grade for Static Load-Bearing

Structural steel selection matters for racking, not because the loads are dynamic in the aerospace sense, but because the rack sits under load continuously for years. Creep — the slow, permanent deformation of metal under sustained stress — becomes a design consideration when a 5-ton pipe bundle occupies the same compartment for six months at a time.

Q235B carbon structural steel offers a yield strength of 235 megapascals minimum, with an ultimate tensile strength in the range of 370 to 500 megapascals. These values place it in the sweet spot for static storage applications: strong enough to handle rated loads with generous safety margins, ductile enough to deform visibly before fracture, and weldable with standard procedures that do not require preheating or post-weld stress relief. Herochu fabricates columns, arms, and crossbars from Q235B and verifies material certificates for every heat of steel that enters the production line.

The frame geometry also contributes to load capacity. Columns use a closed box section rather than open C-channel, providing torsional rigidity that resists twisting when loads shift during crane operations. Base plates spread the column load across a wider area of the warehouse floor, reducing the point pressure that can crack floor slabs in older facilities.

Load Capacity and Safety Margins

Each Herochu compartment carries a rated load between 3,000 and 5,000 kilograms, depending on model and arm configuration. The rating is not a theoretical maximum — it represents the working load that the compartment handles daily without progressive deformation. Behind that rating sits a 150 percent overload test protocol. A 5-ton rated compartment undergoes static loading at 7.5 tons. The structure must hold that overload without permanent deflection exceeding 0.5 percent of the arm span. This margin accounts for several real-world scenarios: the momentary impact when a crane deposits a bundle, the uneven weight distribution when pipes shift slightly during placement, and occasional overloading when operators estimate bundle weight incorrectly.

For steel bar storage specifically, load distribution becomes more predictable than pipe storage. Solid bars sit flat on the cantilever arms with full surface contact. Round bars nest into each other but still transfer weight directly downward rather than creating point loads at pipe-to-pipe contact lines. Herochu designs arm surfaces with a slight inward tilt — typically 2 to 3 degrees — that naturally guides round stock toward the column rather than toward the open end of the arm. This geometry detail is subtle but consequential: it prevents the gradual outward roll that can occur when round bars rest on perfectly horizontal arms under warehouse vibration.

CE, EU, and ISO 9001 Certification

Industrial racking in regulated markets requires documentation that goes beyond a spec sheet. Herochu holds ISO 9001 certification for its quality management system, which governs everything from incoming material inspection to final dimensional checks before shipment. Each rack system ships with a certificate of conformance that ties the serial-numbered columns and arms to their specific heat of steel, providing full traceability if an auditor or insurer ever needs to verify material provenance.

CE marking confirms that the rack design meets the essential health and safety requirements of applicable European directives. For cantilever racking, this primarily involves structural integrity under load and the absence of sharp edges or pinch points that could injure operators during normal use. EU compliance extends this framework to member-state-level regulations, giving facility managers in European markets confidence that the rack meets local workplace safety standards without requiring additional engineering review.

Steel Bar and Pipe Applications

The same rack structure handles both bar and pipe storage because the cantilever arm concept is format-agnostic. A compartment that holds 3 tons of 100-millimeter round bars on Monday can hold 3 tons of 150-millimeter schedule-40 pipe on Tuesday — no reconfiguration required beyond possibly adjusting arm spacing if the product diameters differ significantly.

Steel service centers use Herochu cantilever racks to organize inventory by grade, diameter, and heat number. The independent compartment structure means that 304 stainless bars sit in labeled bays separate from 316 stainless, eliminating the grade-mix errors that cause costly customer rejections. Structural steel fabricators store angle irons, channels, and I-beams in compartments organized by section size, letting the cutting station pull the right stock without searching through mixed piles.

Pipe distributors benefit from the dual-side access configuration. One side of the rack faces the receiving dock, where inbound bundles load directly into compartments. The opposite side faces the shipping area, where pickers retrieve orders without crossing into receiving traffic. This flow-through layout cuts material handling time and reduces forklift congestion during peak operating hours.

Manual Crank Precision for Bar and Pipe Loading

Long steel products present a handling challenge that short pallets do not. A 12-meter bundle of pipe, suspended from a single crane hook, behaves like a pendulum. Even with tag lines, the bundle drifts during transport and requires several attempts to align with the target compartment. Each failed attempt burns crane time and risks impact damage to adjacent compartments.

Herochu integrates a manual crank mechanism into the loading path. The crane operator positions the bundle within the compartment bay — precision is helpful but not critical — and lowers it onto the crank-guided carriage. A ground-level operator then uses the hand crank to advance the bundle along the arm until it reaches its final position. The crank provides mechanical advantage that makes moving 5-ton loads across the arm surface a one-person task. It also constrains lateral movement, so the bundle cannot swing into neighboring compartments.

For bar stock specifically, the crank mechanism adds value when loading dense, heavy bundles. Solid bars stack more compactly than pipes, so a full compartment of round bar stock weighs near the maximum rated load. The crank’s gear reduction transforms this weight into manageable hand-wheel effort, eliminating the need for secondary handling equipment at the rack face.

Installation Without Field Welding

Herochu cantilever racks use a bolted assembly system that arrives at the job site ready to erect. Columns bolt to base plates with pre-drilled patterns. Arms bolt to columns. Crossbars bolt between arms. Every connection uses Grade 8.8 high-strength fasteners torqued to specification with a standard impact wrench. No welding happens on site, which eliminates several cost and schedule variables: no hot-work permits, no certified welder scheduling, no fire watch, no grinding or repainting of field welds.

The factory-applied powder coating stays intact through installation. Touch-up paint is unnecessary because nothing gets burned, ground, or scarred during assembly. A standard 6-meter bay can go from crate to fully operational in a morning for a two-person crew. Larger installations scale linearly — a 10-bay row of 12-meter HC-G12065 racks might take two days with the same crew size.

Long-Term Return on Investment

A well-built cantilever rack delivers value across multiple dimensions. Floor space utilization improves as pipes and bars move from horizontal stacking to vertical compartments. The same 100-square-meter floor area that stored 200 pipe bundles at ground level can store 1,000 bundles in a 5-tier rack system — a 5x increase in storage density that delays or eliminates the need for warehouse expansion.

Material damage drops because pipes no longer rest on each other. Scratches, dents, and bends from floor stacking disappear almost immediately after racks go into service. For service centers that sell on visual quality — where a scratched stainless pipe loses value — this preservation alone can justify the rack investment.

Retrieval time shrinks because operators go directly to labeled compartments rather than searching through ground-level piles. A job that previously took 10 minutes of forklift maneuvering becomes a 2-minute pick from a known location. Over thousands of picks per year, the cumulative labor savings add up.

Herochu’s industrial cantilever storage rack system gives steel service centers, pipe distributors, and fabrication shops a structural platform that matches their inventory reality: long, heavy, and varied. The dual-beam crossbar, Q235B steel frame, manual crank assist, and independent compartment design combine into a storage solution that stays straight under load, protects material quality, and speeds up every pick and put-away cycle.
