Heavy-Duty Cantilever Rack for Industrial Pipe Storage | Herochu

Industrial facilities that store long steel pipes, aluminum profiles, and heavy tubing face a recurring problem: floor-level stacking chews up square footage, exposes inventory to bending damage, and slows retrieval to a crawl every time a forklift operator needs to dig through a pile. A cantilever rack engineered specifically for classified pipe storage solves all three problems at once. Herochu builds these systems with independent compartments, dual-side access, and mechanical crank assistance — turning chaotic pipe yards into organized, high-density storage bays.

Why Floor Stacking Costs More Than a Rack

When 6-meter or 12-meter steel pipes lie on the warehouse floor, each bundle competes for the same horizontal real estate. Workers spend minutes, not seconds, locating the right diameter or wall thickness. Pipe surfaces scratch against each other. The bottom layer absorbs the weight of everything stacked above, leading to ovality and micro-deformation that quality control flags later. Forklift maneuvering around sprawling material piles introduces safety hazards that no amount of caution tape can fully eliminate.

Herochu’s heavy-duty cantilever rack replaces this mess with vertical compartmentalization. Each tier acts as an independent storage bay. Pipes sit on dedicated arms with clear space between layers — typically 600 millimeters, adjustable to match the job at hand. The result is a system where every pipe bundle has a defined home, every forklift operator knows exactly where to go, and inventory counts stay accurate without constant manual recounting.

Independent Compartment Design and Dual-Side Access

What distinguishes Herochu’s approach from generic cantilever racking is the compartment philosophy. Most cantilever systems treat all arms on one side as a single continuous shelf. That works for uniform products but falls apart when a warehouse handles mixed diameters, mixed materials, and mixed lengths. A 2-inch schedule-40 carbon steel pipe does not belong in the same slot as a 6-inch stainless tube, yet that is exactly what continuous-arm racks force operators to do.

Herochu splits each tier into independent compartments on both sides of the upright column. A single rack structure can hold carbon steel pipes on the left compartments, stainless tubing on the right, and aluminum extrusions on a separate row entirely — all within the same footprint. This classification strategy cuts retrieval time because operators no longer sort through unrelated materials to reach the target bundle. Dual-side access also means two forklifts can load or unload simultaneously without traffic conflicts, a practical advantage that speeds up shift-change workflows in busy service centers.

Manual Crank Assistance for Space-Saving Loading

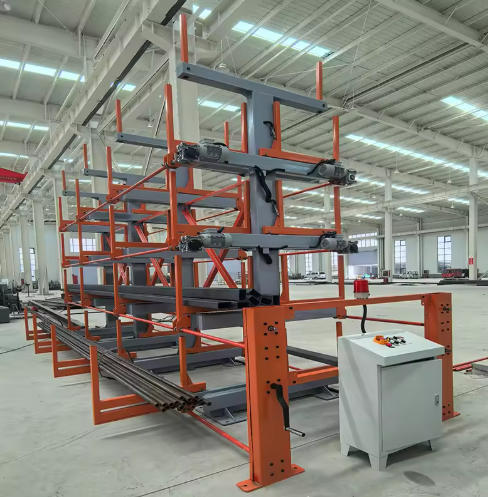

Loading a 3-ton bundle of 12-meter steel pipes onto an elevated cantilever arm demands precision. Cranes and overhead hoists provide the lifting muscle, but positioning the load over the correct compartment without scraping adjacent bays requires fine control. Herochu integrates a manual crank mechanism into the material discharge path. Rather than relying on crane operators to finesse long loads into tight spaces, the crank lets a ground-level worker guide the pipe bundle along the arm with controlled, incremental movement.

This mechanical-assist approach saves warehouse floor space because aisles can be narrower. Crane operators do not need wide approach angles or extra clearance to swing loads into position. The crank handles the final positioning step, absorbing the lateral drift that makes long-pipe loading unpredictable. It also reduces the risk of collision damage — pipes do not swing into neighboring compartments during loading or unloading because the crank constrains the movement path.

Load Capacity and Structural Integrity

Each Herochu compartment carries between 3 and 5 tons, depending on the model configuration. That capacity range covers the vast majority of industrial pipe storage applications — from bundled 6-meter structural tubing to dense stacks of solid bar stock. The frame that supports these loads starts with Q235B high-strength structural steel, chosen for its consistent yield characteristics and weldability. Herochu runs every design through finite element stress analysis to verify that load paths distribute evenly across the dual-beam crossbar assembly, eliminating the single-point stress concentrations that cause older cantilever designs to sag over time.

The dual-beam crossbar deserves specific attention. In a standard cantilever rack, each arm connects to the upright column at a single attachment point. Under heavy loading, that point becomes a pivot — repeated loading and unloading gradually deforms the bracket, and arm deflection increases year over year. Herochu’s dual-beam design adds a secondary horizontal tie between adjacent arms on the same tier. This tie transforms the individual cantilever arms into a collaborative load-sharing group. Deflection under full rated load stays within engineering tolerances, and the arms return to true position when unloaded. For warehouse managers who track rack integrity as part of their ISO audit checklists, that predictability matters.

Q235B Steel Frame and Anti-Corrosion Finish

Q235B steel provides a minimum yield strength of 235 megapascals — adequate for static storage loads with the safety margins that industrial racking standards require. Herochu applies a powder-coated finish over the entire frame after fabrication, not just on visible surfaces. This matters in pipe storage environments where condensation from temperature swings, cutting fluid residue on newly machined parts, and general warehouse humidity all contribute to corrosion. A rack that rusts at the bolt holes or weld seams becomes a liability within two to three years. Full-coverage powder coating extends service life significantly, particularly in coastal or high-humidity regions.

The steel columns and arms are also hot-dip galvanized as an option for facilities that store pipes outdoors or in semi-enclosed sheds. Galvanizing adds a sacrificial zinc layer that protects the underlying steel even if the surface gets scratched during loading operations — a realistic scenario when heavy pipe bundles slide across arm surfaces.

Model Range and Customization

Herochu offers the heavy-duty pipe cantilever rack in four base configurations that scale with the most common pipe lengths:

The “S” designation on the HC-G6053S indicates a single-sided configuration for installations where the rack backs up against a wall. All other models default to double-sided storage, doubling the material capacity per bay. Clear space between layers starts at 600 millimeters and adjusts upward to accommodate oversized pipe diameters or bundled loads. Layer count is fully customizable — the five or six layers shown in the table represent common configurations, not hard limits. Facilities storing predominantly smaller-diameter tubing can request additional layers within the same column height to maximize vertical density.

Dual-side mechanical assistance comes standard across the entire range. The manual crank mechanism operates identically whether the operator is loading 3-ton 6-meter bundles or 5-ton 12-meter loads — the mechanical advantage scales with the load through the gear reduction built into the crank assembly.

Global Certifications and Quality Standards

Herochu manufactures these rack systems under ISO 9001 quality management protocols. Every load-bearing weld undergoes visual and dimensional inspection before the frame moves to finishing. The completed racks carry CE and EU compliance markings, confirming that structural design, material traceability, and safety documentation meet the requirements for deployment in European and international industrial facilities.

Load testing follows a 150 percent overload protocol. A compartment rated for 5 tons undergoes static testing at 7.5 tons to confirm that the structure holds without permanent deformation. This margin accounts for dynamic loads that occur during loading — when a crane deposits a pipe bundle, the momentary force exceeds the static weight — and provides an engineering buffer for facilities that occasionally push their storage density beyond planned limits.

Installation and Operational Benefits

Herochu cantilever racks ship with a bolt-together design that eliminates on-site welding. Floor anchors secure the base plates to the warehouse slab, and the columns bolt to the base plates with pre-drilled hole patterns that enforce correct alignment. A crew of two can assemble a standard 6-meter bay in under four hours using basic hand tools. The absence of field welding means no hot-work permits, no fire watch requirements, and no grinding or repainting after installation — the factory-applied powder coating stays intact.

Once installed, the operational benefits compound. Pipe bundles move from floor stacks into labeled compartments. Inventory clerks can walk an aisle and visually confirm stock levels without climbing over piles. Forklift operators retrieve full bundles in a single lift rather than picking individual pipes out of a mixed stack. New hires learn the rack layout once and apply it every shift — there is no tribal knowledge about which corner of the warehouse holds the 4-inch schedule-80 pipe because every compartment has a defined assignment.

For facilities expanding their pipe inventory or reorganizing their floor plan, the bolt-together design allows partial disassembly and reconfiguration. Add more bays by extending the row. Adjust arm spacing by unbolting and repositioning the arms on the column. The system adapts as storage needs change, which protects the initial capital investment over a service life measured in decades rather than years.

A Smarter Approach to Pipe Storage

Industrial pipe storage does not need to mean sprawling floor piles, damaged inventory, and frustrated operators. Herochu’s classified compartment cantilever rack brings order to pipe yards and service centers through independent tier storage, dual-side mechanical loading, and structural engineering that holds 3 to 5 tons per compartment without deflection. The Q235B steel frame, powder-coated finish, and bolt-together assembly make it a practical, long-term investment for any facility that handles 6-meter, 9-meter, or 12-meter pipes, tubes, and profiles.
