Heavy Duty Rail-Type Pipe Rack Warehouse – Structural Design for Massive Tube Inventories

When warehouses handle extreme loads – bundles of oilfield casing, large-diameter concrete pile forms, or thick-walled structural tubes – standard storage equipment fails. Load capacities exceed commercial rack ratings. Floor loads concentrate beyond design limits. Forklift maneuvers become dangerous. Herochu specializes in Heavy Duty Rail-Type Pipe Rack Warehouses, purpose-engineered infrastructure for the most demanding pipe storage applications. This article provides a comprehensive guide to the structural engineering, load distribution, safety systems, and operational protocols required for these high-capacity installations.

Defining Heavy Duty in Pipe Rack Terms

What qualifies as “heavy duty” varies by industry. For Herochu, heavy duty begins where single-side cantilever layer loads exceed 5 tons and total moving unit capacities surpass 30 tons. At the extreme end of the range, Herochu has engineered systems with per-layer ratings of 6 tons or more and total unit capacities exceeding 42 tons – equivalent to storing multiple fully loaded semi-trailers on a single mobile rack.

Heavy duty systems also differ in their material construction. While standard racks use formed steel sections with bolted connections, heavy duty versions employ hot-rolled structural shapes – I-beams, channels, and heavy-wall tubes – with fully welded or high-strength bolted joints. Column base plates are thicker. Rail sections are larger. Roller carriages use forged steel wheels rather than polyurethane. Drive systems upgrade from chain drives to geared motor units with integral brakes.

Floor and Foundation Engineering

A Heavy Duty Rail-Type Pipe Rack Warehouse starts from the ground up. The concrete floor slab must support not only the static weight of fully loaded racks but also the dynamic loads of moving racks and operating forklifts. Herochu requires a comprehensive floor survey before any design work begins.

Critical parameters include concrete compressive strength (minimum 30 MPa for most heavy duty installations, with 40 MPa preferred), slab thickness (150mm minimum, often 200mm or more), and reinforcement detailing (rebar size, spacing, and position within the slab). If the existing floor does not meet specifications, Herochu engineers may recommend localized slab thickening, additional rebar placement, or the construction of dedicated reinforced foundations under each rail path.

Rail installation for heavy duty systems demands precision. Rail sections are typically 50mm to 75mm wide and 25mm to 40mm tall, machined from high-carbon steel. Herochu installs rails on continuous steel shims to maintain levelness within 1mm per meter. Anchoring uses heavy-duty chemical or mechanical anchors spaced at 500mm to 750mm intervals. For extremely high loads, rails can be embedded in poured concrete trenches with the rail head flush to the floor surface.

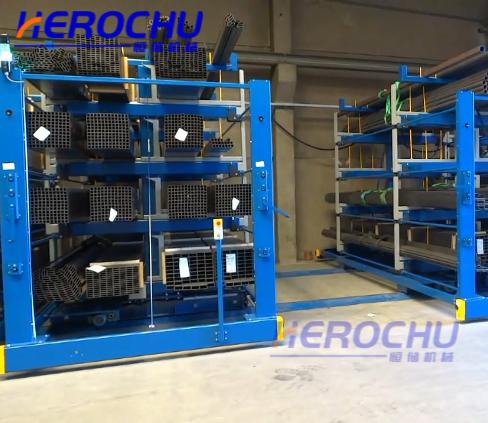

Rack Structural Design for Extreme Loads

The rack frames themselves must resist bending, buckling, and torsion under full load. Herochu uses finite element analysis (FEA) to model stress distribution before prototyping. Columns are typically wide-flange sections or reinforced box columns. Cross-bracing uses angle iron or tubular sections in an X or K pattern.

Cantilever arms for heavy duty applications are not simple cantilevers. Herochu designs arms as tapered sections, thicker at the column connection and reducing in depth toward the tip. The arm-to-column connection uses multiple high-strength bolts or a welded socket design with backup plates. Arm tips include integral up-stands or removable stop pins to prevent pipes from rolling off during lateral rack movement.

Each level of the rack can be adjusted in height in 50mm or 75mm increments. Herochu provides a height configuration service during the design phase, optimizing level spacing for the specific pipe diameters and bundle heights that will be stored. For warehouses handling mixed diameters, a standard spacing of 400mm to 600mm between levels accommodates most pipe sizes while maximizing vertical storage density.

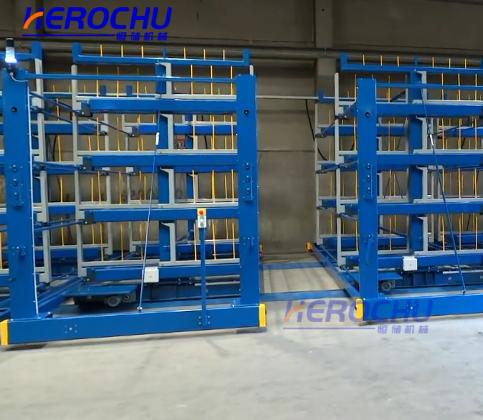

Drive and Control Systems for Heavy Mass

Moving a 42-ton loaded rack requires substantial power and precise control. Herochu specifies motorized chain drive systems with dual motors for large units, providing redundant power and even force distribution. Motors are typically 3-phase industrial units rated for continuous duty, with electromagnetic brakes that engage automatically when power is cut.

The PLC frequency conversion system is critical for heavy loads. Without smooth acceleration, the inertia of a 42-ton rack would cause the load to shift dramatically, potentially dumping pipes off the arms. Herochu programs acceleration curves that ramp speed gradually over 3 to 5 seconds, reaching a maximum travel speed of approximately 12 m/min. Deceleration is similarly soft, with the PLC calculating stopping distance based on load weight (monitored via current draw) and travel speed.

Positioning accuracy matters. The PLC uses encoders on the drive motors or laser distance sensors on the rack frames to stop within 5mm of the programmed aisle width. This precision allows the warehouse management system to predict exact pickface locations.

Safety Systems for High-Risk Environments

The consequences of a failure in a heavy duty pipe rack system are severe. Herochu engineers multiple redundant safety systems:

• Rail End Stops: Physical steel bumpers at the end of every rail run prevent over-travel.

• Load Moment Indicators: Sensors monitor the bending moment at the column base. If the moment exceeds safe limits – indicating an overload or an unbalanced load – the system locks out all movement.

• Aisle Interlock System: When any rack in a multi-row system is moving, all other racks in that zone are electrically locked to prevent simultaneous movement.

• Wire Rope Anti-Fall Cables: For particularly tall racks or seismic zones, Herochu can install tensioned wire ropes that catch any arm or load that detaches from the column.

• Emergency Lowering Valves: For hydraulic telescoping arms, manual release valves allow controlled lowering in the event of power loss.

Operational Protocols for Heavy Duty Warehousing

Even the best engineered system requires proper operating procedures. Herochu provides detailed training for all forklift operators, crane drivers, and warehouse supervisors working with Heavy Duty Rail-Type Pipe Racks. Key protocols include:

• Load Verification: Before placing a pipe bundle on any cantilever arm, operators must confirm the bundle weight against the rack’s rated capacity for that specific arm and extension length.

• Centered Loading: Bundles must be positioned so their center of gravity is within the middle third of the arm length. Offset loads create twisting forces that reduce effective capacity.

• No Overhang Beyond Stops: Pipe ends may extend beyond the arm tip but must be secured with additional stops or lashing if the overhang exceeds 500mm.

• Travel Path Inspection: Before initiating lateral movement, operators visually inspect the aisle path for obstructions, trusting but not relying solely on photoelectric sensors.

Long-Term Structural Monitoring

Heavy duty installations operate under near-continuous stress. Herochu recommends an annual structural audit performed by certified engineers. The audit includes visual inspection of all welds, bolt torque verification on column connections, measurement of rail wear and alignment, and functional testing of all safety systems.

Load cells or strain gauges can be permanently installed at key structural nodes, with data fed back to a central monitoring dashboard. Herochu offers this as an optional smart warehouse package. When strain trends show increasing deflection over time, maintenance can be scheduled proactively before a failure occurs.

Global Heavy Duty Installations

Herochu has delivered Heavy Duty Rail-Type Pipe Rack Warehouses to multiple heavy industrial sites worldwide. An oilfield pipe distributor in Texas stores 36-meter lengths of casing weighing up to 8 tons per bundle on a 12-row mobile system. A precast concrete plant in South Korea stores steel reinforcement bars and prestressing strand on racks with per-layer capacities of 6 tons. A mining equipment manufacturer in South Africa uses Herochu heavy duty racks to store drill rods and wear plate sections in a high-humidity coastal environment, with specialized corrosion-resistant coating extending service life.

Each installation receives a unique engineering package, including structural calculations, foundation drawings, electrical schematics, and an operations manual. Herochu supports these systems for the full service life, offering spare parts, training refreshers, and capacity upgrade consultations as warehouse needs evolve.

Building a Heavy Duty Rail-Type Pipe Rack Warehouse requires specialized engineering that goes far beyond standard storage equipment. Herochu brings decades of heavy industrial experience to each project, delivering infrastructure that handles extreme loads safely, efficiently, and reliably for decades.
