Roll Out Vertical Sheet Rack: Transforming 6m Material Handling in Laser Cutting Workshops

Introduction: The Mechanical Advantage of Full-Extension Drawers

The most overlooked variable in laser cutting productivity is the physical distance between the raw material and the machine bed. In workshops processing 6-meter (20-foot) sheets, that distance is often measured in minutes of forklift travel time and square meters of congested aisle space. The Roll Out Vertical Sheet Rack from Herochu changes the geometry of your workshop. Instead of moving a forklift to a stationary sheet, the sheet moves to a retrieval position via a precision-engineered drawer mechanism.

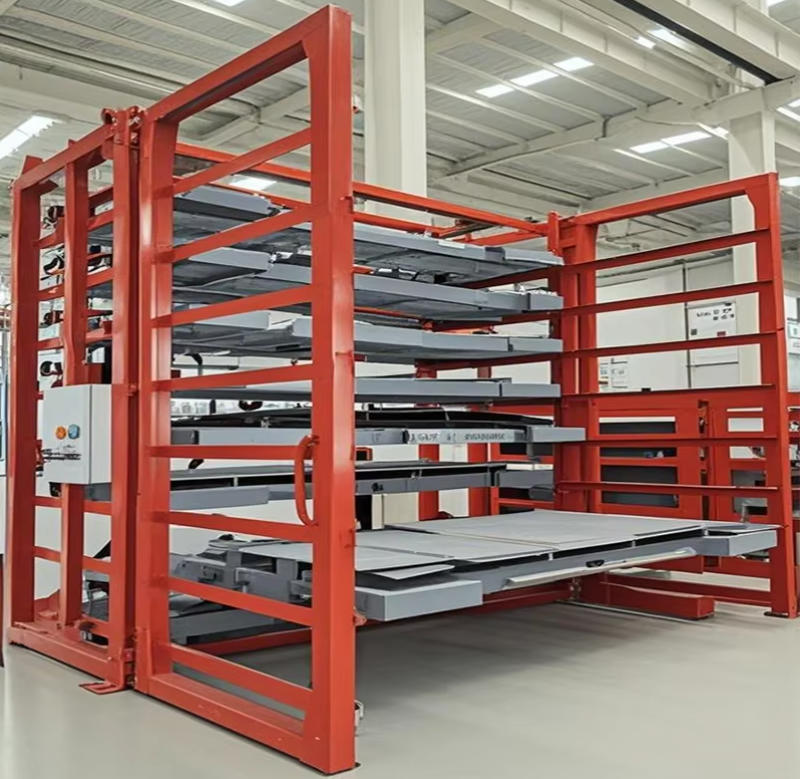

This is not a simple shelving unit. A true Roll Out Vertical Sheet Rack is a heavy-duty, industrial-grade system where each level extends horizontally out of the tower, presenting the full 6,000mm length of the sheet in a cantilevered but fully supported orientation. The operator then uses an overhead crane or jib crane with a vacuum lifter to pick a single sheet without disturbing the sheets above or below. This article explains the mechanical engineering, operational workflow, and financial benefits of adopting a Herochu roll-out system for large-format fabrication.

Engineering Deep Dive: Drawer Construction and Guidance Systems

The critical component of any roll-out rack is the guidance system. Standard industrial drawer slides are rated for 500 kg to 1,000 kg, but a Roll Out Vertical Sheet Rack for 6m laser cutting sheets must handle loads up to 5,000 kg per drawer. Herochu achieves this using a proprietary telescopic rail system with six precision-ground bearing trucks per drawer. The rails are fabricated from cold-drawn C-channel steel with a black oxide coating for corrosion resistance in workshop environments.

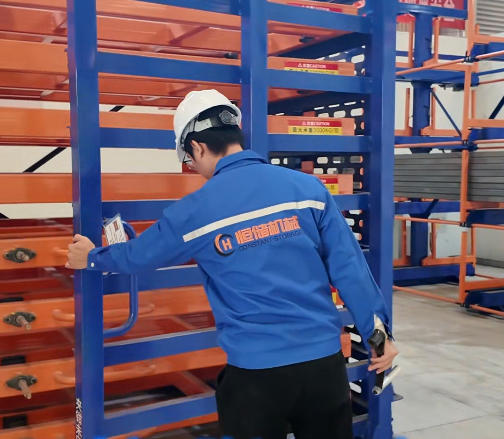

The drawer body itself is constructed from welded structural rectangular tubing, with cross-members placed every 400mm to prevent deflection. The front face of each drawer includes a reinforced pulling point that accepts a standard electric crank or hydraulic extension arm. For workshops without powered assists, Herochu offers a manual crank with a 40:1 gear reduction, allowing a single operator to extend a fully loaded 5,000 kg drawer with less than 15 kg of hand force.

Why Vertical Density Improves Workflow

A common misconception is that vertical racks slow down retrieval because operators must reach high levels. The Herochu Roll Out Vertical Sheet Rack includes a mobile work platform that travels vertically along the front of the tower. The operator stands on this platform, activates the height adjustment, and moves to the desired level. Once positioned, they crank out the drawer, pick the sheet with a vacuum lifter, and lower the sheet directly onto a roller conveyor or laser shuttle table.

This vertical arrangement achieves a storage density that floor stacking cannot match. A single Herochu tower occupying a footprint of 7m (length) by 2m (depth) can store up to ten levels of 6m sheets. That is approximately 50 to 60 metric tons of steel in a footprint smaller than one parking space. In high-rent industrial zones, this spatial efficiency translates directly to lower operating costs or the ability to add another laser cutter in the same building.

Preserving Surface Quality for High-End Applications

For workshops processing stainless steel, aluminum, or pre-coated sheets for architectural or automotive applications, surface quality is paramount. Any scratch or abrasion on a 6m sheet can render the entire blank unusable. The Herochu Roll Out Vertical Sheet Rack is designed with non-marring contact surfaces. The drawer cross-members are fitted with replaceable urethane pads that cushion the sheet and prevent metal-to-metal contact.

Furthermore, because the roll-out mechanism allows the crane to pick the top sheet directly from the drawer, there is no dragging. In a floor stack, the act of sliding a sheet off the top of a bundle creates microscratches from any embedded grit or scale. In the Herochu system, the vacuum lifter lifts vertically, eliminating horizontal abrasion. For fabricators who supply to medical, semiconductor, or architectural cladding markets, this surface preservation alone justifies the investment.

Integration with Laser Auto-Load Systems

Many modern fiber lasers include an automated shuttle table or walking beam loading system. The Herochu Roll Out Vertical Sheet Rack can be directly integrated with these systems. By positioning the rack adjacent to the laser’s load station, the operator can roll out a drawer, and a powered roller conveyor can transfer the sheet directly from the drawer to the shuttle table. This creates a continuous material flow from storage to cutting, with no intermediate staging area.

The time savings are substantial. In a typical floor stacking environment, moving a 6m sheet from storage to the laser table involves forklift pickup, travel to the laser area, positioning on the load table, and manual alignment. Total time: 15 to 20 minutes. With a Herochu roll-out rack adjacent to the laser, total time from drawer extension to laser start: 3 to 4 minutes. Over a 10-hour shift, these savings add up to multiple additional cutting jobs per day.

Conclusion: A System Built for the Long Haul

The Herochu Roll Out Vertical Sheet Rack is not an expense; it is an infrastructure investment. The all-welded steel construction, corrosion-resistant finishes, and replaceable wear components are designed for a 20-year service life in heavy fabrication environments. When you compare the total cost of ownership against the ongoing labor, waste, and safety costs of floor stacking, the roll-out rack is the clear economic winner. For any laser cutting workshop handling 6m sheets, the Herochu roll-out vertical system is the definitive solution.
