Heavy Duty Vertical Roll Out Sheet Metal Storage Rack

Steel service centers and metal fabrication shops face a brutal reality: sheet metal weighs a lot, and storing it incorrectly kills productivity. A pallet of 10-gauge steel plates can exceed 3000 pounds. Standard cantilever racks require workers to lift and slide each sheet horizontally, a motion that strains backs and risks sudden drops. The Herochu heavy duty vertical roll out sheet metal storage rack eliminates these hazards through a clever combination of vertical orientation and full-extension drawers.

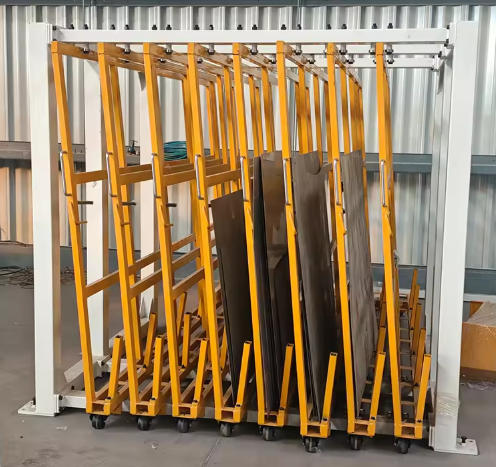

Why vertical? Because storing sheet metal on its edge reduces the required floor space by roughly 60% compared to flat stacking. More importantly, vertical storage allows each sheet to be accessed independently. No more unstacking five heavy plates to reach the sixth one at the bottom. With Herochu’s roll-out design, you simply pull the desired drawer, and the sheet presents itself at waist height, ready for lifting.

The term “heavy duty” gets thrown around loosely in industrial equipment. Herochu defines it with specific engineering numbers. Each drawer in the heavy duty vertical roll out sheet metal storage rack carries a standard capacity of 2000 pounds (907 kg) with a 2-inch loading space. The drawer slides extend fully and feature hardened steel ball bearings rated for 100,000 cycles under full load. Frame construction uses 4mm to 6mm wall thickness rectangular tubing, welded by certified fabricators following Dutch original specifications.

Standard models include the HC-V2010-15 (2000x1000mm plates, 15 layers), HC-F2513-15 (2500x1500mm plates, 15 layers), and HC-F3015-122 (3000x1500mm plates, up to 122 layers). For non-metric markets, Herochu manufactures sizes from 48” x 96” up to 60” x 120”, with custom dimensions available. The number of drawers ranges from 6 to 25 per unit, depending on sheet thickness and available ceiling height. Each drawer’s partition layer height is adjustable in 50mm increments on standard units, though finer adjustments come on custom builds.

Safety features go beyond basic load ratings. Every Herochu sheet metal rack includes interlocking drawer stops that prevent accidental over-extension. When you pull a drawer to its limit, a mechanical stop engages. To close, you must lift slightly to disengage the stop – this simple mechanism prevents drawers from sliding out if someone bumps into the rack. Additionally, each drawer has a secondary retention catch that holds the drawer secure during crane or vacuum lifter operations.

The Dutch heritage of this product line matters because it dictates how Herochu approaches quality. The original family business in the Netherlands tested every new product comprehensively at their factory before releasing it to customers. Herochu continues that discipline. Every heavy duty vertical roll out sheet metal storage rack undergoes a pre-shipment load test at 125% of rated capacity. Welds receive magnetic particle inspection on critical joints. Drawer slide alignment is laser-checked.

For shops storing mixed materials, the modular drawer design supports different interior configurations. Want to separate individual metal sheets for easier retrieval? Add UHMW strips between every sheet – these slippery plastic strips let you slide one sheet out while others remain in place. Need to store smaller remnants and offcuts? Order drawers with extra slats that create divided compartments. Handling aluminum sheets that scratch easily? Specify the UHMW-lined drawers that protect soft metals from edge damage.

Material retrieval becomes a one-person job. Without Herochu’s system, removing a 150-pound steel sheet from a stack often requires two workers or an overhead crane with complicated rigging. With the roll-out shelf, one operator pulls the drawer, attaches a vacuum lifter or sling, and lifts vertically. The crane hook travels straight down, not at an angle, so the sheet clears the rack without binding. This alone reduces material handling labor hours by 30% to 50% in most shops.

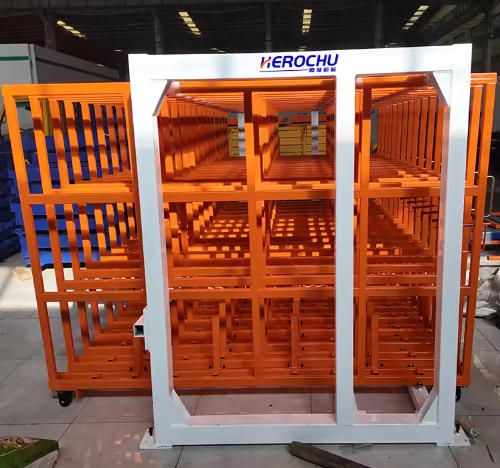

Herochu’s professional service team provides on-site or remote installation support. Because the rack ships as a bolted assembly (not welded solid), it fits through standard doorways and can be assembled in place. Leveling feet compensate for uneven floors. For earthquake-prone regions, anchor kits secure the rack to concrete slabs. The team also offers custom engineering for unusual applications – for example, storing radioactive shielding plates or lead sheets that require additional floor loading distribution.

To order a heavy duty vertical roll out sheet metal storage rack, provide Herochu with your maximum sheet dimensions, typical weight per sheet, number of unique SKUs, and available floor area. The engineering team returns a CAD drawing showing rack placement, drawer allocation, and load calculations. Lead times range from 2 to 6 weeks depending on customization level. Call Herochu for current pricing on standard models HC-V2010-15, HC-F2513-15, and HC-F3015-122.
