Advanced Single-Tower Plate Storage Solution for Efficient Organization

In modern sheet metal fabrication, space constraints and disorganized material handling remain two of the most persistent operational bottlenecks. Herochu has engineered a direct response to these challenges with its Advanced Single-Tower Plate Storage Solution, a system designed not merely to store materials but to transform how fabrication shops organize, retrieve, and manage their sheet metal inventory.

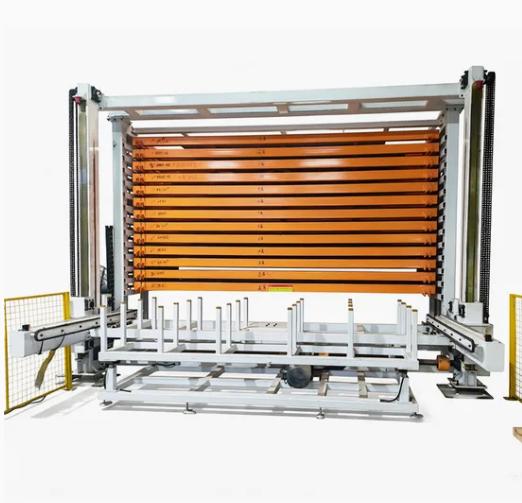

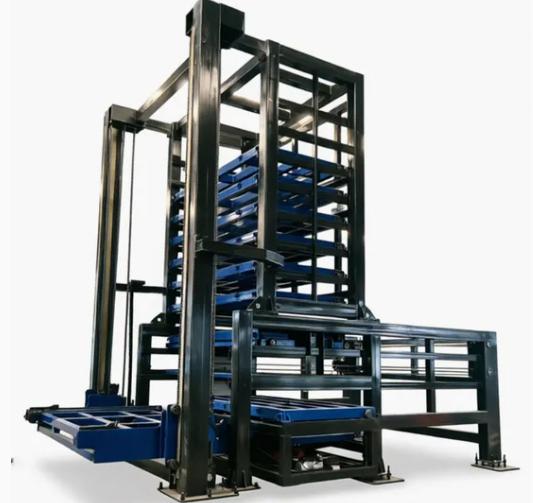

The core philosophy behind the Herochu single-tower architecture is vertical density. Traditional flat storage methods consume valuable floor space that could otherwise house additional laser cutting equipment or workstations. By leveraging full building height—often up to eight or ten customizable layers—the Herochu system compresses what once required hundreds of square meters into a compact vertical footprint. Models such as the HC-A3015-83 accommodate sheet dimensions of 3000mm by 1500mm, while larger configurations like the HC-A6020-105 handle sheets up to 6000mm by 2000mm, proving that vertical organization does not sacrifice material versatility.

Organization within the tower follows a logical, software-driven structure. Each layer functions as an independent storage position capable of holding up to 3000kg or 5000kg depending on the model, with the HC-A3015-83 supporting a maximum load capacity of 3000kg and the HC-A4015-85, HC-A4020-85, and HC-A6020-105 models rated for 5000kg per layer. This per-layer granularity allows fabricators to categorize materials by gauge, alloy, surface finish, or project allocation. A facility processing both mild steel and stainless steel, for instance, can dedicate specific layers to each material type, eliminating the confusion that arises from mixed inventory piles.

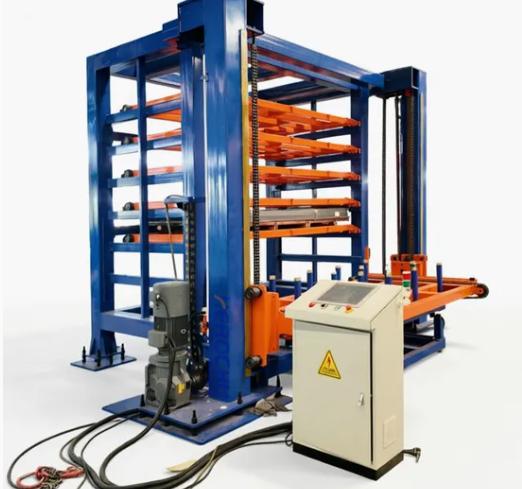

The organizational intelligence extends beyond static allocation. Herochu integrates a vertical lifting mechanism with a horizontal loading arm, creating a retrieval system that operates with surgical precision. Transfer speeds range from 5 to 15 meters per minute, while the loading arm moves horizontally at 10 to 30 meters per minute. Lifting speed is independently controlled at 5 to 10 meters per minute. These differentiated motion profiles mean that the system dynamically prioritizes movement based on the target layer’s position, minimizing wait times without sacrificing stability.

What distinguishes the Herochu Advanced Single-Tower Plate Storage Solution from conventional vertical racks is its ability to maintain organization under continuous, high-throughput conditions. The system employs linear guide rails combined with chain transmission—a configuration that ensures smooth, repeatable positioning even after thousands of cycles. Chain drive transmission, specifically, offers superior resistance to elongation compared to belt-driven alternatives, maintaining positional accuracy over the system’s operational lifetime. For fabrication shops running two or three shifts, this durability translates directly into sustained organizational integrity.

Customization plays a central role in the organizational efficiency of the Herochu tower. The number of storage units is fully customizable, as is the number of layers and the clear space between shelves. A standard configuration provides 350mm of clearance, but Herochu engineers adjust this dimension based on the typical sheet thickness and handling requirements of each customer. This means a shop specializing in thin-gauge aluminum can maximize layer count, while a heavy plate fabricator can increase clearance to accommodate thicker stacks. The plate support system itself offers optional selection, allowing customers to choose between roller beds, brush tables, or felt-lined supports depending on surface sensitivity requirements.

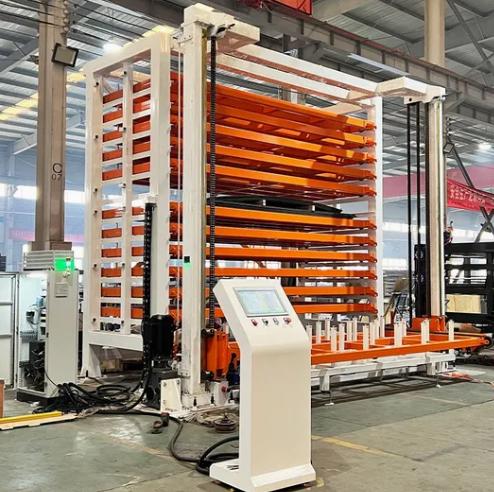

From an operational workflow perspective, the Herochu single-tower solution integrates seamlessly with material carts and gantry robot loading systems. Material arriving from the shearing or slitting line moves directly into the tower via the automated inlet and outlet mechanism operating at 12 meters per minute. The system records each sheet’s position, dimensions, and weight, building a real-time digital twin of the physical inventory. Operators query this database through a simple terminal interface, requesting specific sheets by material grade or thickness. The tower responds by retrieving the correct layer, extracting the sheet, and presenting it to the loading arm—all without human intervention in the storage aisle.

Energy efficiency complements organizational capability. The chain drive transmission and linear guide combination consumes less power than hydraulic or screw-driven alternatives while delivering comparable lifting force. For facilities tracking sustainability metrics, the Herochu tower represents a lower-carbon approach to dense storage. Additionally, the reduced need for forklift traffic eliminates diesel emissions inside the fabrication hall, improving air quality and reducing noise pollution.

Safety features embedded within the organization logic prevent inventory damage and personnel injury. Photoelectric sensors verify that sheets are correctly positioned before the tower initiates any movement. Overload detection halts lifting operations if weight exceeds the layer’s rated capacity. The system’s control software automatically recalculates optimal storage positions based on sheet weight distribution, avoiding scenarios where heavy sheets are stored above lighter ones—a common cause of instability in less sophisticated vertical racks.

For fabrication shops currently managing sheet metal with floor stacks or cantilever racks, the transition to the Herochu Advanced Single-Tower Plate Storage Solution typically recovers between 60 and 80 percent of previously occupied floor space. This recovered area can house additional laser cutting machines, secondary processing equipment, or assembly cells. More importantly, the organized vertical architecture eliminates the wasted labor hours spent searching for specific sheets, verifying material identities, and reshuffling stacks to access buried inventory. Every sheet has a designated position, and every position is instantly addressable—the definition of efficient organization.

Herochu has deployed this single-tower solution across job shops, OEM fabrication facilities, and aerospace component manufacturers. In each case, the common outcome is a measurable reduction in material handling labor and a corresponding increase in laser cutting machine utilization. When sheets are organized and instantly accessible, the cutting head spends less time waiting and more time producing finished parts.
