Automated Vertical Storage Systems for Laser Cutting Materials

Laser cutting machines have grown increasingly sophisticated, with faster traverse speeds, higher power outputs, and greater accuracy than ever before. Yet many fabrication facilities continue to feed these advanced machines using manual material handling methods that introduce delays, damage, and inefficiency. Herochu addresses this disconnect with its Automated Vertical Storage Systems explicitly engineered for laser cutting materials, creating a seamless bridge between raw sheet inventory and the laser cutting table.

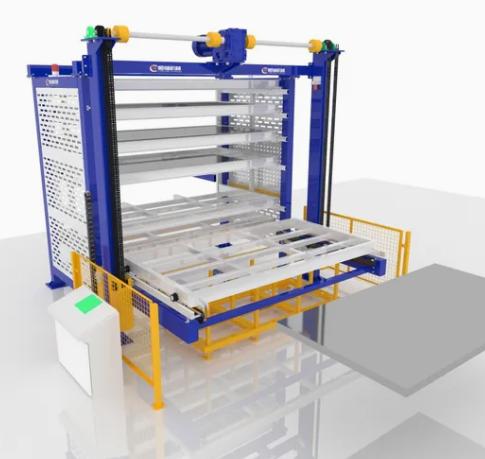

The Herochu automated vertical storage system departs from conventional approach by treating storage not as a separate warehouse function but as an integral component of the laser cutting workflow. Models including the HC-A3015-83, HC-A4015-85, HC-A4020-85, and HC-A6020-105 accommodate sheet dimensions that align directly with standard laser cutting bed sizes—3000x1500mm, 4000x1500mm, 4000x2000mm, and 6000x2000mm respectively. This dimensional alignment means that sheets removed from storage require no repositioning or reorientation before loading onto the laser cutter, eliminating a common source of positioning error.

The automation architecture rests on three synchronized subsystems: the vertical storage tower, the gantry robot loading mechanism, and the material cart transport system. Each subsystem communicates with the laser cutting machine’s controller, creating a fully coordinated material flow. When the laser cutter completes one job and sends a request for the next sheet, the Herochu system simultaneously identifies the target sheet’s location, positions the vertical lift to the correct layer, extends the loading arm to extract the sheet, transfers it to the gantry robot, and delivers it to the laser cutting table. The entire sequence executes without operator intervention, typically completing within 60 to 90 seconds depending on the target layer height and sheet dimensions.

Transfer speed within the automated vertical storage system is calibrated for laser cutting production rates. The horizontal movement of the loading arm operates at 10 to 30 meters per minute, while vertical lifting occurs at 5 to 10 meters per minute. These speeds represent an optimal balance between throughput and material stability. A faster vertical lift might introduce sheet vibration or misalignment, while slower speeds would create bottlenecks in high-volume production. Herochu engineers selected these parameters after extensive testing with typical laser cutting materials ranging from 0.5mm aluminum to 25mm mild steel.

The system accommodates the full spectrum of laser cutting materials. Maximum sheet weight capacity varies by model: 3000kg for the HC-A3015-83 and 5000kg for the larger configurations. An applicable sheet dimension range extends from the standard sizes up to 6000x2500mm, ensuring compatibility with oversized laser cutting beds. The loading arm itself handles individual sheets up to 500kg, sufficient for most common gauges within the dimensional envelope. For heavy plate applications exceeding 500kg, Herochu offers a reinforced loading arm option that extends capacity to 800kg while maintaining positioning accuracy.

Integration with multiple laser cutting machines represents a key engineering achievement of the Herochu automated vertical storage system. A single storage tower can synchronize with two, three, or even four laser cutters simultaneously, each machine requesting sheets independently based on its production schedule. The system’s control software manages these concurrent requests using a priority-based queuing algorithm that accounts for sheet availability, machine utilization rates, and job deadlines. A laser cutter running a rush order receives priority access to the storage tower, while machines processing standard jobs are queued appropriately. This multi-device synchronization capability transforms the storage tower from a passive resource into an active production coordinator.

The gantry robot component deserves specific attention for its role in handling laser cutting materials. Unlike suction-based systems that struggle with oily or slightly irregular sheet surfaces, the Herochu gantry robot employs a combination of vacuum grippers and mechanical clamps. The vacuum grippers engage first, lifting the sheet just enough to confirm secure attachment. Then mechanical clamps engage as a secondary safety measure, preventing sheet drop in the event of vacuum failure. This redundant gripping architecture is particularly valuable for laser cutting materials that may have surface oil residues from rolling processes, which can compromise suction-only systems.

Material cart integration completes the automation loop. When the laser cutter finishes a job and removes the finished parts, the skeleton or remnant sheet is transferred back to the material cart. The cart returns to the storage tower, where the system either stores the remnant for future use or directs it to a scrap cart based on predefined remnant management rules. This closed-loop material flow ensures that laser cutting waste is removed from the work area immediately, maintaining a clean and safe operating environment around the laser machine.

From a software perspective, the Herochu automated vertical storage system includes an interface module for direct communication with laser cutting nesting software. When the nesting software generates a cutting plan, it also produces a material requirement list that the storage system reads automatically. The system then pre-stages the required sheets in a fast-access buffer area, reducing retrieval time when the laser cutter signals readiness. Conversely, when nesting software identifies opportunities to use remnant sheets for smaller parts, the storage system provides real-time inventory data including remnant dimensions and material grades, enabling the nesting algorithm to make optimal material utilization decisions.

Facilities that have implemented the Herochu Automated Vertical Storage Systems for Laser Cutting Materials typically report three measurable improvements. First, laser cutting machine utilization increases by 25 to 40 percent because the cutting head spends less time waiting for material. Second, material waste decreases by 10 to 15 percent because the system enables better remnant tracking and reuse. Third, labor costs associated with material handling drop by 50 to 70 percent, reallocating skilled personnel from forklift operation to higher-value activities such as quality inspection and process optimization.

For fabrication shops planning to scale their laser cutting capacity, the Herochu automated vertical storage system provides a path that avoids proportional increases in floor space and labor. Adding a third laser cutter does not require tripling the storage area or adding three material handlers. Instead, the existing vertical storage tower absorbs the additional demand, retrieving and delivering sheets as each machine requires. This scalability makes the Herochu system particularly attractive for growing contract manufacturing operations where capital efficiency determines competitive positioning.
