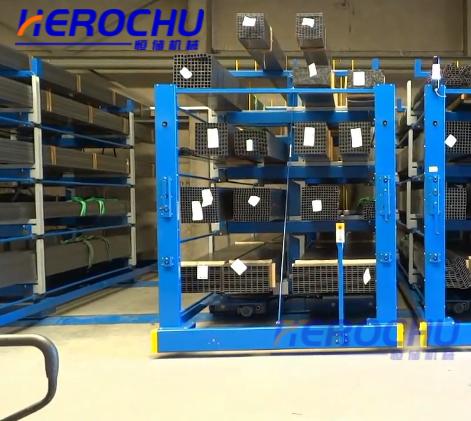

Rail-Type Telescopic Cantilever Rack Manufacturer – Engineering Heavy-Duty Storage Solutions

Selecting a manufacturer for rail-type telescopic cantilever racks is a capital decision that affects warehouse productivity, safety, and operational costs for a decade or more. Not all suppliers deliver the same structural integrity, load engineering, or after-sales support. Herochu has established itself as a specialist manufacturer in this niche, combining ISO9001 quality systems, European CE certification, and a global installation track record. This article provides purchasing managers, facility engineers, and logistics directors with the technical criteria needed to evaluate potential suppliers, along with a detailed look at how Herochu designs, tests, and delivers these complex storage systems.

Defining the Rail-Type Telescopic Cantilever Category

Before evaluating manufacturers, it is essential to understand precisely what rail-type telescopic cantilever racks are and how they differ from simpler mobile storage products. A standard rail-type cantilever rack moves laterally along floor tracks, but its cantilever arms remain fixed in length. A telescopic cantilever rack adds an additional degree of functionality: the arms themselves extend and retract, either manually or under power, to provide variable-depth support.

This telescopic capability is especially valuable for warehouses that store multiple pipe lengths or for manufacturing cells where overhead cranes handle material loading. When the arms retract, the rack profile becomes compact, allowing tighter compression between rows. When extended, the arms reach out to support long pipe ends or to present material directly to a crane hook. Herochu has refined this dual-motion design – lateral rail travel plus arm telescoping – into a seamless, synchronized operation controlled through a single PLC interface.

Structural Engineering and Material Selection

The primary differentiator among rail-type telescopic cantilever rack manufacturers is the quality of structural steel and the precision of fabrication. Herochu sources high-tensile, low-alloy structural steel grades that exceed standard commercial rack specifications. Vertical columns are formed from cold-rolled or hot-rolled sections with wall thicknesses calculated specifically for the intended load profile. Cantilever arms, including their telescoping inner and outer segments, feature reinforced bearing surfaces where the sliding sections contact each other.

Welding quality is another critical variable. Herochu employs certified welders who follow controlled procedures for all load-bearing joints. Each weld is visually inspected and, for high-stress connections, subjected to non-destructive testing. The manufacturing facility maintains ISO9001 certification, with documented quality control checkpoints at every stage: raw material receiving, cutting and forming, welding, surface preparation, painting, and final assembly.

Load Testing and Certification Standards

A reputable rail-type telescopic cantilever rack manufacturer does not rely on theoretical calculations alone. Herochu conducts dynamic load testing on every rack configuration before dispatch. Test protocols involve placing calibrated weights on the cantilever arms at full extension, then operating the lateral movement and telescoping mechanisms simultaneously. Strain gauges measure deflection at multiple points, and the system must pass without permanent deformation, binding, or instability.

For export markets, Herochu racks carry full European CE certification, demonstrating compliance with Machinery Directive 2006/42/EC and relevant harmonized standards. The certification process includes risk assessment, technical file documentation, and third-party verification of safety systems such as overload protection, anti-collision sensors, and emergency stops. Warehouses operating under strict safety regulations – including automotive, aerospace, and nuclear supply chains – often require CE-marked equipment, making Herochu a preferred supplier.

Customization Capabilities for Unique Facility Constraints

No two warehouses are identical. Ceiling heights vary, floor flatness differs, column grids interrupt layouts, and pipe inventories change seasonally. Herochu offers comprehensive customization that goes beyond simple dimensional adjustments:

• Arm Length Variations: Telescopic arms can be designed with two, three, or even four sliding segments, achieving extended lengths from 1.5 meters up to 6 meters or more from the column face.

• Column Heights: Racks can reach up to 12 meters total height, with intermediate levels for multi-tier pipe storage.

• Track Configurations: Straight runs are standard, but curved or switched tracks can be engineered for warehouses with irregular footprints.

• Finish Options: Epoxy polyester powder coating in any RAL color, with increased film thickness for corrosive environments such as coastal locations or chemical storage areas.

• Drive Systems: Choose between manual mechanical drives (gear-and-pinion) for lighter duty cycles or motorized chain drives with variable frequency control for heavy, frequent operation.

Control Systems and User Interface Design

Modern telescopic cantilever racks depend on reliable control electronics. Herochu integrates PLC frequency conversion systems that regulate both lateral travel speed and telescoping extension rate. Smooth acceleration and deceleration prevent pipe loads from shifting or swinging, while programmable positioning allows operators to save frequently used aisle widths and arm extensions as presets.

The user interface can be configured as a fixed control panel on each rack face, a handheld pendant, or a remote radio controller. For warehouses with warehouse management system (WMS) integration, Herochu provides API connectivity that allows the PLC to receive pickface location commands directly from the host software. This level of automation reduces operator error and shortens cycle times.

Safety Engineering as a Core Competency

Safety features separate professional-grade manufacturers from commodity suppliers. Herochu incorporates multiple redundant safety layers:

• Photoelectric Anti-Collision Barriers: Laser scanners mounted on each moving rack create a virtual safety zone. If any object – human, forklift, or pallet – enters the active aisle during movement, the drive motors stop instantly.

• Mechanical Anti-Tilt Locks: Spring-loaded or electrically actuated locking pins engage automatically when the racks are stationary, preventing any unintended drift during loading or unloading.

• Overload Sensors: Integrated load cells or current monitoring circuits detect when cantilever loads exceed rated capacities. The system refuses to move and displays an alert until the overload is corrected.

• Emergency Stop Circuits: Highly visible, red E-stop push buttons are placed every 5 to 10 meters along each rack row, allowing immediate shutdown from any position.

• Audible and Visual Warnings: Moving racks broadcast warning tones and flash strobe lights to alert nearby personnel.

Global Installation and Field Support

A manufacturer’s responsibility does not end at the factory gate. Herochu deploys field technicians to global project sites for on-site installation, system debugging, and staff training. Installation crews work with local labor when permitted, or provide complete turnkey service including rail embedding, rack assembly, control wiring, and safety certification.

Post-installation support includes remote diagnostics via internet-connected PLCs, spare parts stocking, and periodic maintenance visits. Herochu maintains reference installations in the United States, Russia, South Korea, South Africa, Mexico, Egypt, Qatar, and other industrial economies. Potential buyers can request site visits to observe systems operating under real-world conditions.

Evaluating Total Cost of Ownership

Price per unit is only one factor in the total cost of ownership (TCO) for rail-type telescopic cantilever racks. Herochu encourages buyers to consider:

• Density Gain: Higher storage density reduces the need for warehouse expansion or external yard storage, directly impacting real estate costs.

• Labor Efficiency: Faster cycle times from motorized movement and telescoping arms reduce operator hours per pick.

• Product Protection: Secure, non-damaging pipe storage lowers scrap and rework costs from scratched or bent materials.

• Maintenance Intervals: Higher-quality components extend time between service calls.

• Downtime Impact: Reliable controls and readily available spare parts minimize production interruptions.

Herochu provides detailed TCO modeling as part of its proposal process, helping buyers compare long-term operational expenses against initial capital outlay.

When selecting a Rail-Type Telescopic Cantilever Rack Manufacturer, technical expertise, quality systems, and global support matter as much as the hardware itself. Herochu has built its reputation on delivering engineered solutions that perform safely and reliably for decades.
