Multi-Tower Intelligent 3D Board Material Warehouse

Modern sheet metal fabrication and heavy material handling demand storage systems that go beyond simple shelving. The Herochu Multi-Tower Intelligent Three-Dimensional Board Material Warehouse represents a fundamental shift in how manufacturers organize, retrieve, and manage flat stock. Unlike traditional warehouses that consume vast floor spaces with single-level racks, this multi-tower configuration stacks materials vertically across interconnected columns, creating a dense, computer-controlled storage matrix that maximizes cubic volume while minimizing footprint.

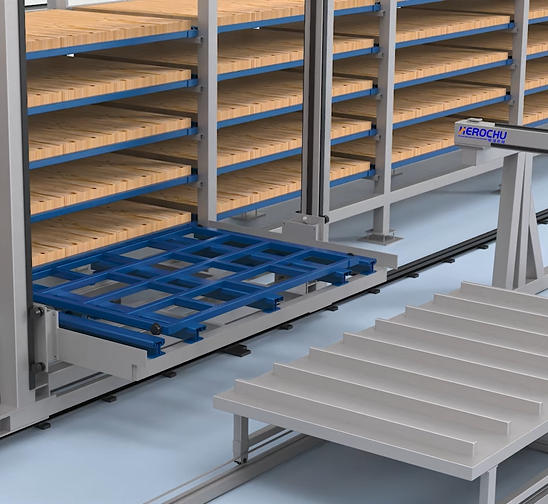

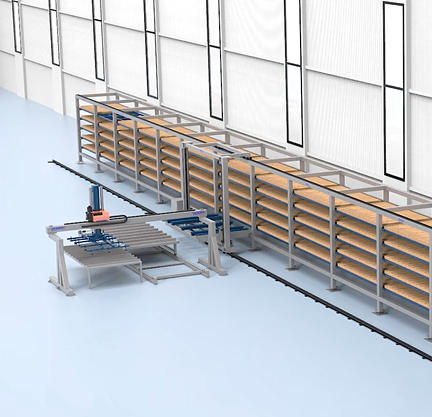

At its core, the multi-tower intelligent warehouse links multiple independent storage towers into a unified automated storage and retrieval system (ASRS). Each tower serves as a vertical magazine capable of holding board materials up to 3000×1500mm in dimension. A network of high-speed lifts and horizontal transport vehicles—such as rail-guided shuttles or conveyor systems—moves between towers, retrieving requested sheets and delivering them to discharge stations anywhere in the facility. The entire operation runs under a central warehouse management system (WMS) that tracks every SKU, logs inventory in real time, and prioritizes retrieval tasks based on production schedules.

For large-scale operations, the benefits are immediate. A single Herochu multi-tower complex can replace dozens of cantilever racks or floor-stacked piles, freeing up valuable production space for additional machinery or assembly lines. The system handles raw materials, work-in-progress panels, finished parts, and even tooling or molds with equal efficiency. Because each tower operates independently yet communicates seamlessly with its neighbors, throughput scales linearly as you add towers. Facilities processing multiple material types—steel, aluminum, composites, plastics—can assign dedicated towers to specific alloys or thicknesses, eliminating search times and reducing handling damage.

Technical parameters of the Herochu multi-tower system are engineered for industrial rigor. Lifting operating speed reaches ≤12m/min, driven by servo motors through precision reducers. This combination delivers fast vertical travel while maintaining positioning accuracy within millimeter tolerances. Single loading and unloading cycles complete in under 180 seconds, a critical metric for production lines requiring just-in-time material staging. The material trolley carries loads up to 3000kg, running horizontally at 10m/min. Supply pressure ranges from 0.6 to 0.7Mpa, with 380V/80A electrical requirements fitting standard industrial power infrastructure.

Safety and durability are built into every component. Equipment peripheries include robust safety guardrails that protect personnel while allowing clear visibility of operations. The lifting mechanism uses servo drives that provide smooth acceleration and deceleration, reducing wear on both the machine and the materials. Unlike pneumatic or hydraulic lifts that suffer from pressure fluctuations, servo-driven lifts maintain consistent force and speed throughout the entire vertical travel range. This precision is especially valuable when handling coated, polished, or delicate sheet materials that cannot tolerate scratching or impact.

The intelligent control system offers several operational modes. In fully automatic mode, the WMS directs all movements without human intervention, retrieving sheets based on barcode scans, production orders, or inventory triggers. Semi-automatic mode allows operators to request specific trays via a terminal, with the system handling retrieval and return. Manual override is available for maintenance or exceptional loads. An intelligent automatic start/stop system powers down lifts and conveyors during idle periods, cutting energy consumption significantly compared to always-on hydraulic systems. This feature alone can reduce standby power draw by over 60% in typical shift-based operations.

Integration with existing factory logistics is straightforward. The Herochu multi-tower warehouse accepts inputs from upstream processes—such as shearing lines or coil slitters—and feeds downstream equipment like laser cutters, punch presses, or press brakes. Discharge stations can be positioned at multiple points around the tower complex, with the transport network automatically routing materials to the correct destination. For facilities running multiple shifts, the system’s ability to pre-stage materials for the next production run eliminates morning setup delays and reduces overtime labor.

From an ROI perspective, the multi-tower intelligent warehouse pays for itself through three primary channels: labor reduction, space recovery, and damage elimination. A manual warehouse storing 500 tons of sheet metal might require two full-time forklift operators plus a material handler. The Herochu system needs one part-time supervisor. Floor space savings often exceed 70%, allowing facilities to postpone expensive expansions or sublease excess square footage. Damage rates from fork truck collisions, dropped bundles, or incorrect stacking drop to near zero, preserving material value and reducing scrap rework costs.

Installation follows a modular process. Individual towers arrive as pre-assembled modules that bolt together on prepared foundations. The horizontal transport network is laid out according to your facility’s traffic patterns and discharge point locations. Commissioning includes calibration of lift positions, testing of safety interlocks, and training of your staff through the Herochu service team. Typical installation timelines for a six-tower complex range from four to six weeks, with minimal disruption to ongoing operations.

For manufacturers serious about scaling production without expanding footprints, the Herochu Multi-Tower Intelligent Three-Dimensional Board Material Warehouse delivers a proven, reliable, and future-proof solution. It transforms material storage from a passive cost center into an active contributor to production efficiency.
