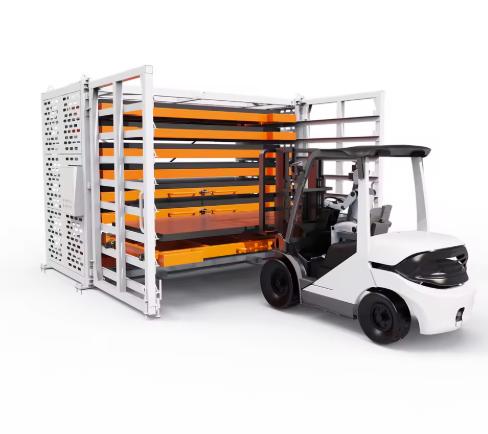

Drawer-Type Forklift Metal Shelf – Efficient Plate Storage for Laser Cutting and Steel Warehouses

In the competitive world of sheet metal processing, storage inefficiency directly impacts the bottom line. Traditional methods—flat stacking on floors, leaning plates against walls, or using static pallet racks—suffer from high labor demands, safety risks, and wasted floor space. The Herochu Drawer-Type Forklift Metal Shelf has been developed specifically to address these pain points, offering a system that is centered around four core principles: saving space, saving labor, ensuring safety, and simplifying operations. No complex installation is required, and the system is compatible with existing forklift fleets from day one.

The Drawer-Type Advantage

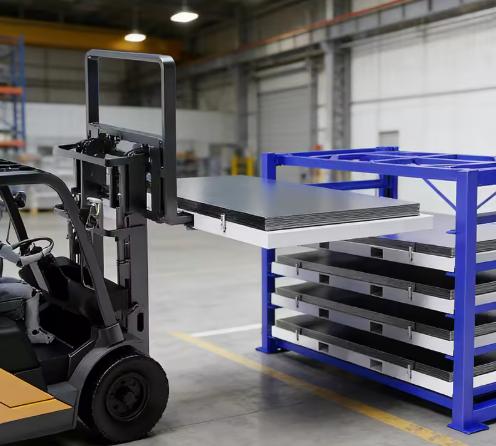

What distinguishes the Herochu drawer-type forklift metal shelf from conventional plate racks is its fundamental mechanism. Each shelf functions as an independent drawer that extends fully out of the frame on robust roller guides. This full extension is critical: it allows the forklift operator to access the entire depth of the drawer without needing to reach past stored plates. In contrast, static shelves force operators to slide plates out—a motion that damages edges, scratches surfaces, and strains both machine and human. The drawer-type design also facilitates organized storage by material grade, thickness, and size. With signboards on each drawer face, a worker can identify the correct plate in seconds, pull the drawer with a forklift, retrieve the required sheet, and return the drawer—all without stepping off the forklift or requiring a spotter.

Technical Specifications and Models

Herochu offers a range of standard drawer-type forklift metal shelf models, all of which can be customized further:

All dimensions include a standard allowance of +500mm in length and width relative to the maximum plate size. The height dimension can be customized to match your factory ceiling, maximizing vertical space utilization. For plates longer than 6 meters, Herochu provides engineering consultations for extended models.

Superior Durability for Demanding Environments

The Herochu drawer-type forklift metal shelf is constructed from high-strength cold-rolled steel, selected for its combination of stiffness and toughness. After forming and welding, each component undergoes a rigorous anti-corrosion treatment sequence: first an electrophoretic coating that deposits paint into every crevice and weld seam, followed by an electrostatic powder topcoat that provides a durable, chip-resistant finish. This dual-layer system has been validated by salt-spray testing to exceed 800 hours of corrosion protection, making it suitable for unheated warehouses, coastal locations, and even outdoor sheltered installations.

The load-bearing capacity is exceptional. Each drawer is rated for a single-stack plate weight ranging from 2 tons to 8 tons, with the actual figure customized based on your inventory. The frame structure is designed with safety factors of at least 2:1 for static loads and 1.5:1 for dynamic loads (forklift impact). Drawer slides are manufactured from wear-resistant steel with sealed ball bearings, requiring no lubrication for the first 20,000 cycles.

Safety Lock and Operational Security

A critical safety feature of the Herochu drawer-type system is the automatic safety lock. When a drawer is fully retracted into the frame, a spring-loaded latch engages positively. This latch prevents the drawer from sliding out accidentally due to forklift vibrations, floor slopes, or seismic events. To extend the drawer, the operator must first lift slightly with the forklift tines, which disengages the latch. Once the drawer is pulled out to the desired position, the latch re-engages at intermediate points if the operator stops. This design eliminates the risk of a drawer “running away” and crushing personnel or equipment. For multi-rack installations, Herochu can also integrate interlock systems that prevent two drawers from being opened simultaneously on opposite sides of the same rack, maintaining structural balance.

Space Savings and Labor Efficiency

Quantifiable benefits of switching to the Herochu drawer-type system include:

• Space efficiency: Unit area storage capacity is 3 to 5 times greater than flat stacking or ordinary pallet racks. A floor footprint of 20 square meters can hold up to 80 tons of steel plates when configured with 8 layers at 5 tons per layer.

• Labor savings: Material retrieval time drops by 30%–50% because plates are organized in dedicated drawers with clear signage. No more shuffling through stacks to find a specific thickness or grade.

• Damage reduction: Because plates are not dragged across each other, edge burrs and surface scratches are virtually eliminated. This is particularly valuable for stainless steel and pre-coated materials.

Customization: The Key to Perfect Fit

No two warehouses are identical, which is why Herochu emphasizes customization across three dimensions:

1. Layer Count Customization
Based on the thickness of your stored plates and your desired storage capacity, we determine the optimum number of layers. Thicker plates require more vertical clearance between drawers; thinner sheets can be stacked in higher layer counts. Standard offerings range from 5 to 8 layers, but we have delivered 10-layer and even 12-layer systems for light-gauge material.

2. Load Bearing Customization
We analyze the maximum weight of a single stack of plates that will be placed in any drawer. For a facility storing 10mm steel plates (approx. 78.5 kg/m²), a 4m x 2m plate weighs 628 kg; a stack of 10 such plates weighs 6.28 tons. Herochu would recommend an 8-ton-per-layer rating with reinforced guide rails and a thicker frame profile. For lighter materials like aluminum, a 2-ton or 3-ton rating is sufficient, reducing costs.

3. Size Customization
The depth (front-to-back) and width (side-to-side) of each drawer are determined by your longest and widest plates, plus a standard allowance of 500mm in each dimension to facilitate forklift entry and exit. The overall height of the rack can be customized to exactly match your factory ceiling height, leaving no wasted space above the top drawer. For buildings with sprinkler systems, Herochu ensures compliance with clearance requirements.

Target Applications

The Herochu drawer-type forklift metal shelf is the preferred storage equipment for:

• Laser cutting job shops – where rapid material changeover is essential for machine utilization.

• Sheet metal processing facilities – requiring organized storage of multiple grades and thicknesses.

• Steel service centers – holding large inventories of plates for just-in-time delivery.

• Heavy equipment manufacturing – storing thick armor plates and structural steel.

Installation and Support

Herochu provides either on-site installation by trained technicians or comprehensive online guidance with video tutorials and remote support. The modular design means that racks arrive in pre-drilled, pre-coated components that bolt together without welding. Standard lead time is 15–20 working days from order confirmation, with expedited options available.

Final Thoughts

If you are still storing steel plates on the floor or in static racks, you are losing money every day. The Herochu Drawer-Type Forklift Metal Shelf transforms your plate storage from a cost center into a competitive advantage. Contact us for a no-obligation storage efficiency audit and see how quickly the system pays for itself.
