Herochu Fixed Rotary Feeding Robot: Electric Servo Arm for Plate Processing

The transition from manual to automated material handling represents one of the highest-leverage improvements available to metal fabricators. Herochu engineered its Fixed Rotary Feeding Robot specifically for sheet metal processing environments where reliability, precision, and ease of programming determine operational success. This electrically powered, servo-controlled feeding robot combines a stationary rotary base with a swing arm architecture to deliver consistent performance across plate sizes from 1250×1000 mm up to 4000×2000 mm.

Distinguishing the Fixed Rotary Feeding Robot from Conventional Loaders

Many feeding systems use linear rail guides that travel the entire length of the machine table. While effective, these linear systems consume significant floor space and require precision alignment over extended distances. The Herochu Fixed Rotary Feeding Robot takes a different approach. By positioning the robot on a stationary base with a rotary axis, the working envelope becomes circular rather than rectangular. This configuration occupies a smaller footprint while still reaching all areas of the machine table.

The feeding robot designation emphasizes the system’s role as an active participant in the production process, not merely a passive transfer device. Herochu’s Fixed Rotary Feeding Robot communicates bidirectionally with the downstream machine tool, receiving status updates and adjusting its feeding behavior accordingly. If a laser cutter signals that it requires an additional five seconds for complex cutting paths, the feeding robot pauses its approach until the machine sends a ready signal. This handshake protocol prevents collisions and ensures smooth workflow integration.

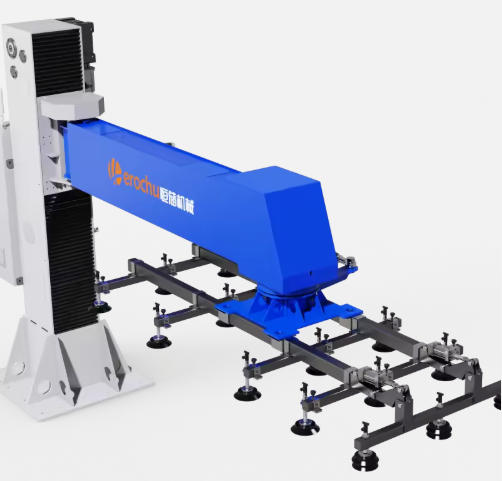

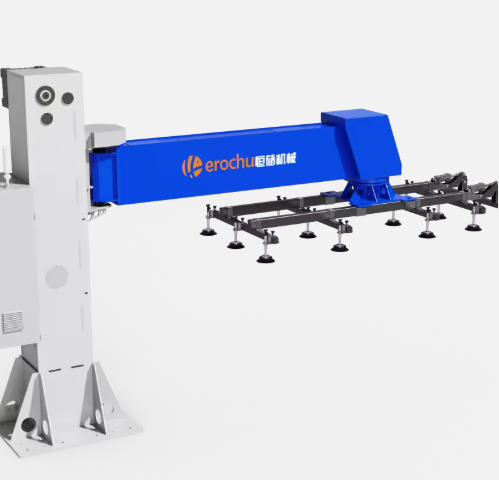

Servo Swing Arm Mechanics for Precise Plate Positioning

The swing arm represents the feeding robot’s primary motion axis. Herochu equips each Fixed Rotary Feeding Robot arm with a high-torque servo motor driving a precision ground gearbox. Backlash measures below 0.05 degrees, ensuring that plate positioning errors remain within fractions of a millimeter. For comparison, typical manual loading achieves positioning accuracy of ±5 mm under ideal conditions, with errors increasing as operator fatigue accumulates.

The arm’s vertical axis incorporates a ball screw driven by a second servo motor. This electric lift mechanism provides smooth vertical motion with programmable acceleration and deceleration profiles. When approaching the machine table, the arm reduces speed automatically during the final approach, setting the plate down gently rather than dropping it from height. This gentle placement preserves both the plate surface and the machine table’s protective coating.

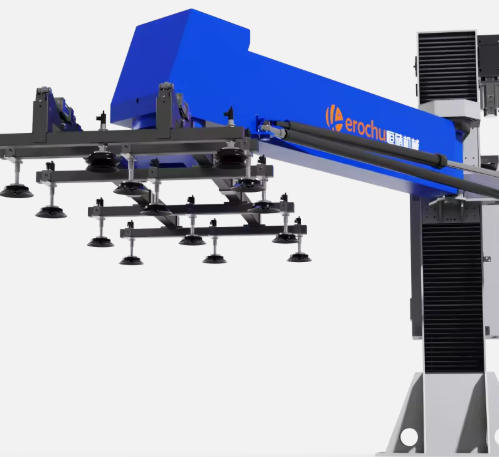

Vacuum System Engineering for Reliable Plate Picking

Successful feeding robot operation depends entirely on reliable plate separation and pickup. Herochu configures suction cup quantity and diameter based on the specific model. The HC-R3015-500 and HC-R3015-750 models use 15 suction cups each, with diameters of 150 mm and 200 mm respectively. The heavy-capacity HC-R3015-1000 model deploys 118 suction cups of 250 mm diameter—a configuration that evenly distributes 1000 kg of lifting force across the plate surface.

Vacuum generation comes from an electric pump mounted directly on the manipulator structure. This placement minimizes vacuum line length, reducing pressure drop and accelerating response time. The vacuum system monitors holding pressure continuously. If a cup loses seal due to surface contamination or a plate feature, the system alerts the operator and automatically attempts a repick using an adjusted approach angle.

Standard Models and Application Matching

Herochu offers five standard Fixed Rotary Feeding Robot configurations. The HC-R3015 series handles maximum feeding widths of 3000×1500 mm with plate thickness capacities of 8 mm (HC-R3015-500), 12 mm (HC-R3015-750), or 20 mm (HC-R3015-1000). The HC-R4020 series expands the feeding width to 4000×2000 mm for 8 mm (HC-R4020-500) or 12 mm (HC-R4020-750) plates.

Matching the correct model to the application requires considering both maximum plate weight and typical material type. The HC-R3015-500 handles most aluminum and light steel applications up to 8 mm thickness. The HC-R3015-1000, with its 118 suction cups and 250 mm diameter cups, suits heavy structural steel plates where surface roughness demands larger vacuum contact areas. For wide-format applications such as architectural cladding or large HVAC components, the HC-R4020 models provide the necessary reach while maintaining 500 kg or 750 kg capacity.

Modular Assembly for Maintenance Access

The feeding robot’s modular assembly structure simplifies both installation and ongoing maintenance. Each major subassembly—rotary base, vertical column, swing arm, suction cup tooling—attaches using bolted connections rather than welded joints. When a component requires service, technicians can remove the affected module and replace it with a spare, returning the original to a repair bench for overhaul. This modular approach minimizes downtime compared to monolithic designs where any repair requires taking the entire machine offline.

Daily maintenance tasks remain accessible as well. Suction cup replacement, vacuum filter cleaning, and electrical connection inspection all occur from floor level or using a standard step ladder. No special access platforms or harness systems are required for routine service.

Safety Architecture for Unattended Operation

The Fixed Rotary Feeding Robot supports unattended operation through redundant safety systems. The emergency stop protection circuit meets Category 3 requirements per ISO 13849, meaning that a single fault cannot defeat the safety function. Multiple independent channels monitor the e-stop status, and any discrepancy between channels triggers a safe stop.

Automatic braking engages whenever the servo drives lose power or the safety circuit opens. Mechanical brakes on the swing arm and vertical axes hold position against gravity, preventing arm drop even during power loss. This braking system operates silently and requires no compressed air backup, eliminating the hazard of gradual pressure bleed-down common in pneumatic holding brakes.

Economic Justification for Small and Medium Shops

While large fabricators have automated material handling for years, smaller shops often assume that feeding robots remain outside their budget. Herochu’s pricing and modular design challenge this assumption. The Fixed Rotary Feeding Robot competes on total cost of ownership, not just initial purchase price.

The calculation improves further for shops running three shifts or processing heavier plates requiring two-person lift teams. For 500 kg plates, manual loading often requires three workers to safely position the material. The feeding robot replaces all three, tripling the labor savings while improving positioning accuracy.
