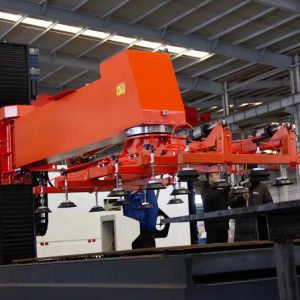

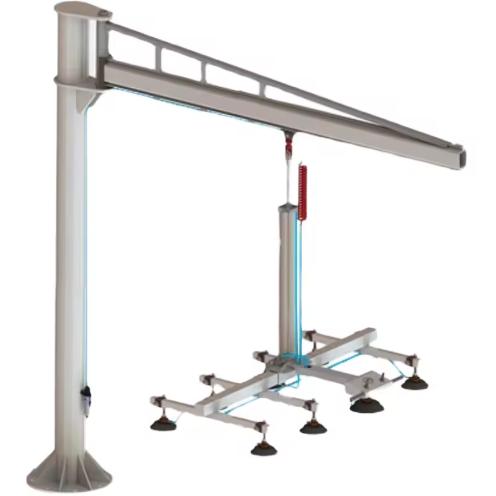

Herochu Fixed Rotary Feeding Robot Arm: High-Capacity Suction Cup Tooling

Floor space constraints rank among the most common obstacles to automation adoption. Fabrication shops expanding into existing buildings frequently find themselves unable to accommodate gantry-style loaders or articulated arm robots with large safety zones. Herochu developed its Fixed Rotary Feeding Robot Arm specifically for these space-constrained environments, packing the full capabilities of a heavy-duty plate manipulator into a footprint that fits alongside existing machine tools without major facility reconfiguration.

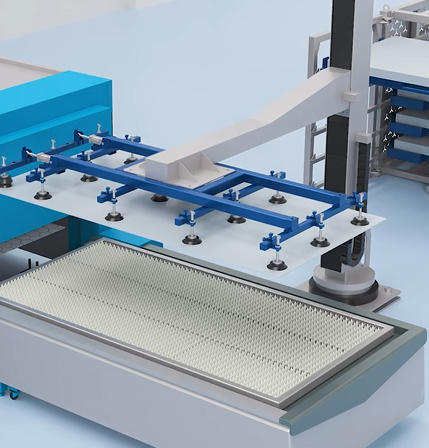

Space-Saving Rotary Architecture

The fixed rotary configuration eliminates the need for linear guideways that extend the full length of the machine table. A typical gantry loader requires floor space equal to the machine table area plus clearance for carriage travel on both ends—often doubling the equipment footprint. Herochu’s Fixed Rotary Feeding Robot Arm occupies only the area of its stationary base plus the arm’s swing radius. For a 4000×2000 mm machine table, the robot’s footprint measures approximately 2500×2500 mm, representing a floor space reduction of 70% or more compared to equivalent gantry systems.

This compact footprint enables automation in facilities previously considered unsuitable for material handling robots. Shops operating in multi-tenant industrial buildings with column spacing limiting machine placement can position the Herochu robot in corners or between machines. The swing arm clears obstacles by rotating away from the machine table when not in use, allowing operators to access the table for manual interventions or tool changes.

Servo Swing Arm Motion Characteristics

The swing arm’s servo drive provides smooth, controlled motion across the entire working envelope. Herochu programs acceleration curves that minimize plate sway during rotation, preventing the pendulum effect that can cause misalignment or safety hazards. The servo motor’s encoder provides real-time position feedback, enabling the control system to detect unexpected motion deviations—such as a plate shifting on the suction cups—and respond immediately.

Variable speed control allows operators to optimize cycle times for different material types. Thin aluminum sheets move slowly to prevent flexing or vibration. Heavy steel plates move at higher speeds since their mass dampens oscillations. The servo system stores these speed profiles as presets, enabling quick changeovers when production schedules alternate between light and heavy materials.

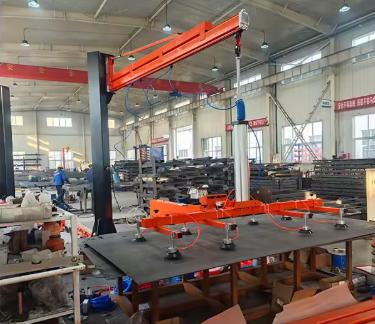

Suction Cup Engineering for Diverse Materials

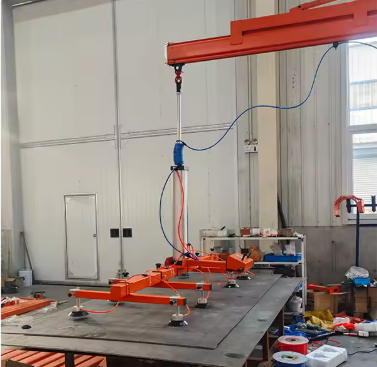

The Fixed Rotary Feeding Robot Arm’s end effector carries suction cup configurations matched to each model’s capacity and application. The HC-R3015-500 and HC-R3015-750 models use 15 suction cups each, with diameters of 150 mm and 200 mm respectively. This configuration works well for smooth materials like cold-rolled steel, stainless steel, and aluminum where smaller cups achieve reliable seals.

For perforated materials, expanded metals, or plates with oil residues, the larger 250 mm diameter cups on the HC-R3015-1000 model maintain vacuum through surface irregularities. The 118-cup configuration on this heavy-capacity model ensures that even if some cups land on holes or contaminants, the remaining cups still provide sufficient holding force for safe operation.

The HC-R4020 series maintains the 15-cup configuration while increasing the maximum feeding width to 4000×2000 mm. This wide-format capability suits applications such as full-size sheet processing for automotive body panels, large appliance wrappers, or architectural metal cladding panels.

Modular Assembly for Custom Configurations

Herochu’s modular assembly structure benefits shops requiring specialized configurations. The base module—containing the rotary drive, controller, and electrical connections—remains common across all models. The column height and swing arm length vary by model, but all use the same interface mounting points. This standardization means Herochu can produce custom configurations by mixing standard modules rather than designing entirely new machines.

Shops can also reconfigure the feeding robot arm as production needs evolve. A facility that initially processes only small plates on an HC-R3015-500 might later acquire larger machine tools requiring wider feeding capability. Rather than purchasing a completely new robot, the shop upgrades by replacing the arm assembly while retaining the base and control system. This upgrade path protects the initial investment while providing a growth path for expanding operations.

Safety Features for Operator Interaction

The Fixed Rotary Feeding Robot Arm operates in environments where human operators regularly access the work area for machine tending, quality checks, and tool changes. Herochu integrated safety systems that protect personnel without requiring complete lockdown of the robot during every operator interaction.

The emergency stop protection circuit uses dual-channel monitoring with redundant contactors. Pressing any e-stop button removes power from all servo drives within milliseconds. The automatic braking system then holds the arm position mechanically, preventing droop or rotation even with heavy plates on the suction cups.

For situations where operators must work near the moving arm but not within the hazard zone, Herochu provides configurable safety zones using area scanners or light curtains. These sensors slow the arm to reduced speed when operators approach, maintaining productivity while reducing risk. Only when operators enter the immediate work envelope does the system bring the arm to a complete stop.

Installation and Commissioning Process

Herochu distributes the Fixed Rotary Feeding Robot Arm as modular components that assemble using standard hand tools. A two-person crew completes mechanical assembly in six to eight hours for most installations. Electrical connections use pre-terminated cables with industrial connectors, eliminating the need for on-site wiring beyond the main power feed.

Commissioning involves teaching the robot the machine table location, material stack position, and finished part drop-off location. Herochu’s pendant interface guides operators through this process using graphical prompts rather than requiring code writing. Most shops complete commissioning within a single day, with additional training time as needed for operators to become proficient with programming sequences for different part types.

Total Cost of Ownership Analysis

The Fixed Rotary Feeding Robot Arm’s electric servo drives consume significantly less energy than pneumatic alternatives. A typical pneumatic loading system uses a 15 HP compressor running continuously during production, consuming approximately 11 kW of electrical power. The Herochu robot’s servo drives draw power only during motion, with average consumption between 500 and 1500 watts depending on cycle frequency.

Maintenance costs also favor the electric design. Pneumatic systems require regular filter changes, lubricator refills, and cylinder seal replacements. Compressed air leaks develop over time, increasing energy consumption gradually. Herochu’s electric robot requires only periodic inspection of mechanical fasteners, suction cup replacement as vacuum performance declines, and electrical connection checks. Annual maintenance costs typically run 70% lower than comparable pneumatic systems.
