Forklift-Compatible Industrial Storage System for High-Efficiency Warehouse Operations

Warehouse productivity hinges on the seamless interaction between storage infrastructure and material handling equipment. When racks are not designed for forklift compatibility, every retrieval becomes a time-consuming, labor-intensive process that erodes profitability. The Herochu Forklift-Compatible Industrial Storage System redefines plate and sheet storage by integrating heavy-duty drawer mechanisms, customizable geometries, and intuitive safety features into a unified platform that works in perfect harmony with your existing forklift fleet.

Redefining Accessibility with Drawer-Type Engineering

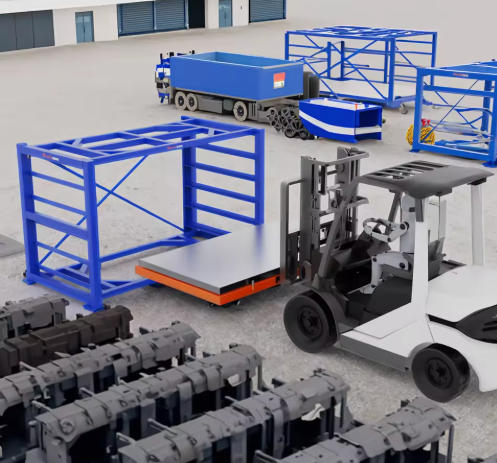

Traditional pallet racks and cantilever racks require forklift operators to lift loads vertically over obstructions or reach deep into static compartments—maneuvers that demand high skill levels and carry significant collision risks. The Herochu system employs a drawer-type configuration where each shelf slides out horizontally on precision-engineered rails. A standard forklift can approach the extended drawer from either side, depositing or retrieving steel plates up to 8 tons in a single operation. The drawer extension is full and unobstructed, meaning that a 6-meter-long plate stored in a 6.5-meter-deep drawer is completely accessible without any need for secondary tools or manual repositioning. This design eliminates the “deep storage paradox” where the most space-efficient layouts become the least operationally accessible.

Customizable Load Capacity for Varied Inventory Profiles

No two fabrication shops have identical material weight distributions. The Herochu Forklift-Compatible Industrial Storage System addresses this reality with per-layer load capacities that can be specified from 2 tons to 8 tons, with engineering consultations available for heavier applications. The customization process begins with an analysis of your maximum single-stack plate weight, typical sheet thickness ranges, and turnover frequency. Based on this data, Herochu designs guide rails, drawer slides, and frame cross-members with appropriate safety margins. For mixed inventories, tiered configurations are possible—for example, lower drawers rated for 8 tons to store thick armor plates, while upper drawers rated for 2 tons hold lighter gauge sheets. This granular approach avoids the inefficiency of over-engineering every level while ensuring no component is under-specified.

Forklift Integration: From Aisle Layout to Daily Workflows

The Herochu system is not merely “forklift-accessible”; it is optimized for forklift-centric workflows. Key integration features include:

• Fork pocket alignment: Drawer frames incorporate standardized fork openings that guide tines into the correct lifting position without eye-balling.

• Drawer safety locks: Each drawer is equipped with an automatic locking mechanism that engages when the drawer is fully retracted. The lock releases only when the forklift applies a deliberate lifting force, preventing accidental roll-outs during travel.

• Floor clearance: The underside of the lowest drawer is raised to allow pallet jacks and low-profile forklifts to pass beneath, facilitating cleaning and auxiliary operations.

• Corner bumper protection: Optional rubber or polyurethane bumpers protect both rack corners and forklift masts from impact damage in busy aisles.

Field studies conducted in metal service centers show that switching from flat stacking or standard pallet racks to the Herochu forklift-compatible system reduces average plate retrieval time by 65% and cuts forklift travel distance per pick by 40%. The latter is achieved because the vertical compaction of inventory shortens the distance between the storage zone and the processing equipment.

Space-Saving Vertical Design

One of the most compelling economic arguments for the Herochu industrial storage system is its space efficiency. A typical configuration with 7 storage layers occupying a floor footprint of 4.5m x 2.5m can hold the same volume of steel plates that would otherwise require a flat storage area of 15m x 12m—a 90% reduction in floor space consumption. This is made possible by the combination of:

• High layer counts: Standard designs offer 5 to 8 layers; custom racks can go up to 12 layers for lightweight materials.

• Narrow aisle compatibility: Because drawers extend horizontally, the aisle width required is only slightly wider than the forklift’s turning radius plus the drawer depth. Herochu can engineer racks for aisles as narrow as 3.2 meters.

• Ceiling-hugging heights: The height of each layer is adjustable in 50mm increments, allowing the top drawer to be positioned just 200mm below overhead sprinklers or roof trusses, leaving no wasted cubic volume.

Durability in Demanding Industrial Environments

The Herochu forklift-compatible system is built for continuous heavy use. The frame is fabricated from prime cold-rolled steel with a minimum yield strength of 355 MPa. All welds are inspected via magnetic particle testing. The drawer slides consist of high-carbon steel rollers running on induction-hardened tracks, rated for 50,000 full-load cycles without significant wear. For corrosion protection, the entire assembly receives an electrophoretic coating followed by electrostatic powder coating in a RAL color of your choice (standard is blue or orange for high visibility). This finish resists not only humidity but also splash exposure to cutting fluids, hydraulic oil, and mild acids.

Installation and Scalability

Herochu offers two installation pathways: on-site assembly by our certified crew (recommended for complex multi-rack layouts) or online guidance with pre-assembled modules (suitable for experienced in-house teams). The modular construction allows for future expansion—additional bays can be bolted to existing racks, and layer counts can be modified within the same upright frames. All fasteners are zinc-plated and supplied with torque-indicating markings to simplify inspection protocols.

Return on Investment Analysis

A mid-sized laser cutting shop processing 500 tons of sheet metal per month typically invests in 8 to 12 Herochu forklift-compatible racks. The total equipment cost is often recovered within 9 months through:

• 40% reduction in forklift operator labor hours.

• Elimination of sheet damage caused by dragging plates out of flat stacks (estimated at 2–5% of material value).

• 80% decrease in workplace injuries related to manual sheet handling.

• 30% increase in processing machine uptime due to faster material availability.

Conclusion

For any industrial operation that stores flat steel plates, aluminum sheets, or composite panels, the Herochu Forklift-Compatible Industrial Storage System delivers measurable improvements in safety, speed, and space utilization. By designing every component around the realities of forklift operation—from drawer pull-out force to lock engagement angles—Herochu ensures that your storage system becomes an asset rather than an obstacle. Contact your regional Herochu representative to schedule a free warehouse consultation and load analysis.
