Herochu Stationary Rotary Loading Manipulator: Programmable Vacuum Lift Arm

Structural steel fabrication presents unique material handling challenges. Plates ranging from 8 mm to 20 mm thickness often weigh hundreds of kilograms, making manual positioning dangerous and slow. Overhead cranes provide lifting capability but lack the precision needed to align plates on cutting tables or drill lines. Herochu developed its Stationary Rotary Loading Manipulator to bridge this gap, combining the lifting capacity of industrial cranes with the positioning accuracy of CNC equipment.

Stationary Base Advantages for Heavy Loads

The stationary mounting configuration provides inherent rigidity advantages over mobile or rail-guided systems. Herochu bolts the manipulator base directly to the factory floor using heavy-duty anchor bolts embedded in a reinforced concrete foundation. This rigid mounting transforms the entire building structure into a reaction mass, absorbing the dynamic forces generated when accelerating plates weighing up to 1000 kg.

Rail-guided loaders, by contrast, must absorb these forces through their own structure and the rail mounting system. Over time, rail systems develop wear patterns, alignment drift, and increased backlash—all of which reduce positioning accuracy. The stationary rotary manipulator experiences none of these degradation mechanisms. Once installed and aligned, the Herochu Stationary Rotary Loading Manipulator maintains its original accuracy indefinitely, limited only by normal mechanical wear in the rotary bearing and arm joints.

Electric Servo Drive System for Heavy-Duty Cycles

Herochu powers the Stationary Rotary Loading Manipulator with electric servo motors on all axes. The rotary base uses a high-torque direct-drive motor capable of accelerating a 1000 kg plate at programmed rates without stalling or overheating. The swing arm’s lift axis uses dual servo motors driving a reinforced ball screw, providing failsafe operation even if one motor experiences a fault.

This electric architecture proves particularly valuable in structural steel environments where hydraulic systems would introduce contamination risks. Hydraulic leaks spray oil onto plates, creating slip hazards and potentially interfering with welding or painting operations downstream. The all-electric Herochu manipulator operates cleanly, introducing no fluids into the work environment.

Heavy-Duty Suction Cup Configuration

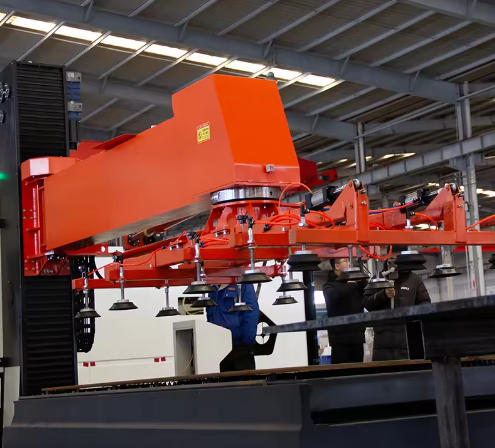

The HC-R3015-1000 model deserves special attention for structural steel applications. Its 118 suction cups, each 250 mm in diameter, provide 4.6 square meters of total vacuum contact area. This extensive cup arrangement distributes the 1000 kg lifting force across the plate surface, preventing the localized stress concentrations that could warp or dimple the material.

For plates with mill scale, rust, or uneven surfaces, the high cup count provides redundancy. Individual cups that fail to seal due to surface irregularities have minimal impact on total holding force. The vacuum system continuously monitors overall system vacuum level and alerts operators if holding capacity drops below programmable thresholds.

Standard Model Specifications for Structural Applications

Herochu offers five Stationary Rotary Loading Manipulator models suitable for structural steel fabrication. The HC-R3015-500 handles plates up to 8 mm thickness with 300 kg maximum weight. The HC-R3015-750 increases thickness capacity to 12 mm and weight to 500 kg. The HC-R3015-1000 handles 20 mm plates up to 1000 kg, making it suitable for heavy structural sections, bridge components, and offshore fabrication.

For wider plates, the HC-R4020-500 and HC-R4020-750 models extend the maximum feeding width to 4000×2000 mm while maintaining 8 mm and 12 mm thickness capacities respectively. All models share the same 1250×1000 mm minimum feeding width, ensuring compatibility with standard plate sizes across the industry.

Modular Assembly for Heavy-Duty Serviceability

Despite its heavy-duty capacity, the Stationary Rotary Loading Manipulator maintains the modular assembly structure common to all Herochu manipulators. The rotary base separates from the column using bolted flanges sized for the higher loads. The swing arm attaches to the column through a precision-machined interface that maintains alignment even after repeated assembly and disassembly.

This modularity proves valuable during facility relocations or major reconfigurations. Rather than cutting and welding structural components, the manipulator disconnects into transportable modules that fit through standard industrial doorways. A rigging crew can complete disassembly, transport, and reassembly over a long weekend, minimizing production disruption.

Safety Systems for Heavy Load Handling

The Stationary Rotary Loading Manipulator incorporates safety systems rated for the higher kinetic energy associated with 1000 kg loads. The emergency stop protection circuit uses high-capacity contactors capable of interrupting the full motor current under load. Multiple e-stop stations are positioned around the manipulator, including a pendant-mounted button that follows the operator during programming and setup.

The automatic braking system engages mechanical brakes on all axes simultaneously when power is removed. These brakes are spring-applied and electrically released, meaning they default to the engaged state in any fault condition. Each brake is sized to hold 150% of the axis’s rated load, providing a safety margin that accounts for shock loads and dynamic events.

Economic Justification for Structural Fabricators

Structural steel fabricators processing plates above 500 kg typically use two-person lift teams for manual loading. At an average of three plates per hour and two shifts per day, a single workcell consumes 120 person-hours weekly for material handling alone. The Stationary Rotary Loading Manipulator reduces this to zero person-hours for the loading task, freeing those workers for value-added activities such as fitting, welding, and quality control.

The manipulator also reduces crane usage significantly. Many structural shops move plates using overhead cranes for every operation, creating congestion as multiple workers compete for crane access. The Stationary Rotary Loading Manipulator handles all plate positioning without crane involvement, freeing the overhead crane for other tasks and reducing wait times throughout the facility.

Integration with Structural Processing Equipment

The Stationary Rotary Loading Manipulator integrates with CNC plate processors through standard I/O interfaces. Digital handshaking signals coordinate plate loading with cutting tables, drill lines, and edge preparation equipment. For older machines lacking automation interfaces, Herochu provides a semi-automatic mode where the operator initiates each cycle using a pendant button after visual confirmation of machine readiness.

This flexibility makes the manipulator suitable for both new facilities and retrofits. Structural fabricators protecting existing capital equipment can automate loading without replacing their installed processing machinery, achieving productivity gains while extending the useful life of current assets.
