Smart Electric Telescopic Cantilever Rack – Heavy Duty Industrial Storage System

1. Executive Summary & Market Demands

Modern material logistics within metal processing, steel manufacturing, and heavy industrial distribution centers requires rapid structural shifts toward vertical floor optimization. Historically, storing long, heavy materials like structural steel channels, large-diameter industrial pipes, structural timbers, and extruded profiles relied on conventional ground-stacking techniques or static cantilever racks. These outdated configurations present severe challenges: massive floor-space footprint inflation, prolonged retrieval cycles, material structural damage due to improper handling, and significant physical hazards for logistics operators.

The Herochu Smart Electric Telescopic Cantilever Rack – Heavy Duty Industrial Storage System directly solves these systemic manufacturing bottlenecks. Engineered for environments that handle high-capacity payloads, this advanced motorized system integrates smart automated controls with high-strength structural framework. By shifting multi-ton storage vertically and incorporating fully retractable mechanical arms, Herochu offers an industrial storage infrastructure that minimizes floor footprints while maximizing picker safety and throughput efficiency.

2. Technical Architecture & Component Analysis

At the center of the Herochu heavy duty industrial storage system is a robust structural design built to endure severe mechanical stress. The rack frames are constructed using premium Q235B high-strength structural steel, engineered to withstand both substantial static weight loads and dynamic forces during arm extension cycles.

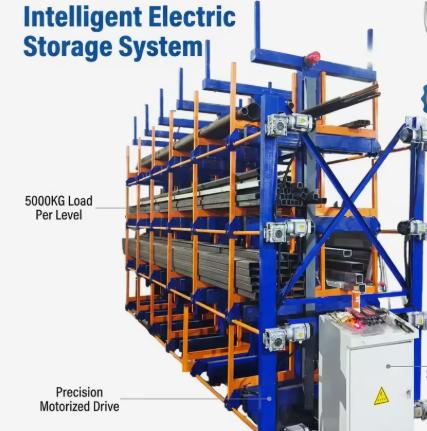

• The Motorized Telescopic Mechanism: Unlike standard cantilever racks that use fixed horizontal beams, Herochu utilizes a synchronized electric drive system capable of extending and retracting arms seamlessly under full payload conditions. Operated via a localized one-touch electronic panel or smart remote frequency control, the integrated mechanical gears move individual storage levels outward at a controlled speed of 27 mm/s. This allows factory overhead cranes or automated hoists to perform pure vertical lifts without navigating tight internal rack aisles.

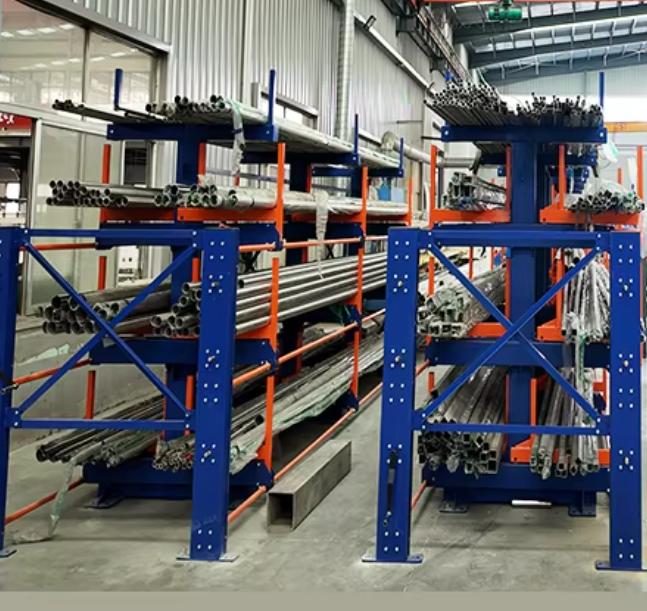

• Structural Crossbar Architecture: To resist torsional twisting and longitudinal flexing under heavy loads, Herochu utilizes a dual-beam crossbar structural framework. This design evenly distributes loads across the vertical columns, preventing structural distortion even when columns are loaded asymmetrically or at full structural capacity limits.

3. Performance Specifications & Operational Capacity

The Herochu structural rack portfolio accommodates single-layer payloads ranging from 1,000 kg up to 10,000 kg (1 to 10 Metric Tons), making it adaptable for diverse industrial material yards. Standard custom variations support material lengths spanning from 6,000 mm up to 12,000 mm, ensuring structural compatibility with heavy industrial products.

• Structural Core Material: Heavy gauge Q235B structural steel frame.

• Cantilever Extension Velocity: 27 mm per second with automated electronic dampening.

• Single-Level Safe Load Range: 3,000 kg to 8,000 kg per storage compartment.

• Arm Extension Rate: 100% full horizontal clearance extension.

4. Industrial Safety Mechanisms and Compliance Standards

Industrial facility safety is a core priority for Herochu. Moving multi-ton payloads within vertical spaces requires high-precision structural and electronic fail-safes. The Herochu Smart Electric Telescopic Cantilever Rack – Heavy Duty Industrial Storage System features several built-in physical and mechanical security protocols:

• Anti-Overturning Structural Geometry: The structural floor foundation anchors feature extended stabilizing feet that calculate structural torque during full extension cycles, eliminating tipping risks.

• Integrated Anti-Slip Edge Barriers: Each dynamic telescopic arm includes mechanical end-stops and non-skid surface treatments to prevent cylindrical tubes, shafts, or structural metal bundles from rolling or shifting off center.

• Electronic Anti-Collision Limit Sensors: Smart limit switches automatically halt electric motors if an obstruction is detected along the extension travel path, protecting equipment and crew from collision damage.

Every automated rack system built by Herochu carries strict international compliance certifications, including CE and ISO 9001 quality management stamps, ensuring reliable performance in harsh metalworking environments.

5. Multi-Sector Enterprise Application Deployment

The strategic deployment of Herochu heavy-duty storage arrays delivers distinct process advantages across several core industrial sectors:

• Heavy Machinery Manufacturing: Raw solid steel bars, machined hydraulic cylinders, and raw structural tooling components can be organized into designated vertical layers. This eliminates material cross-contamination and simplifies inventory tracking for continuous production lines.

• Steel Logistics & Service Distribution Centers: High-volume steel distributors handling varying grades of structural beams, rebar bundles, and stainless pipes can allocate dedicated tiers per grade, speeding up fulfillment times for custom client cuts.

• Building Material Fabrication Facilities: Heavy laminated veneer lumber (LVL), composite plastic panels, structural aluminum extrusions, and heavy metal conduits are stored cleanly, preventing dynamic bending stresses and keeping inventory dry and organized off the warehouse floor.

6. Return on Investment (ROI) and Long-Term Value

Investing in a Herochu Smart Electric Telescopic Cantilever Rack – Heavy Duty Industrial Storage System provides major economic advantages over traditional storage methods. By eliminating the wide aisles required by specialized heavy forklifts, facilities can recover up to 80% of their floor space, turning dead storage zones into profitable production lines. Additionally, because the material handling process uses a crane with direct overhead vertical access, physical collisions with racks are practically eliminated. This dramatically cuts routine maintenance and repair costs, lowers warehouse labor requirements, and reduces accidental material damage to zero, allowing industrial plants to achieve full capital payback within very short operating periods.
