Sheet Metal Storage Racking System for Plasma Cutting Stations

Herochu sheet metal storage racking systems are engineered specifically for the demanding environment of plasma cutting stations. These systems provide unmatched space optimization, safety enhancements, and workflow efficiency for businesses working with sheet metal. Whether feeding laser cutters, plasma tables, or water-jet systems, Herochu racking streamlines the entire material handling process.

Plasma Cutting’s Unique Storage Challenges

Plasma cutting stations process some of the heaviest and most challenging materials in metal fabrication. Thick steel plate, high-strength alloys, and oversized sheets place extreme demands on storage systems. Traditional storage methods—floor stacking, A-frame racks, and fixed shelving—fail to meet these demands.

Floor stacking consumes vast amounts of valuable floor space and creates safety hazards. Retrieving a heavy plate from the bottom of a stack requires lifting every plate above it—a physically demanding and dangerous operation. The risk of material damage is equally severe: heavy plates sliding against each other during retrieval create scratches and gouges that compromise part quality.

A-frame racks offer some improvement but introduce their own problems. Plates lean against angled supports, creating stress points that can deform the material. Retrieving a plate from an A-frame requires sliding it against adjacent plates, again risking surface damage. The limited capacity of A-frame racks means shops must install multiple units, consuming floor space that could be used for production.

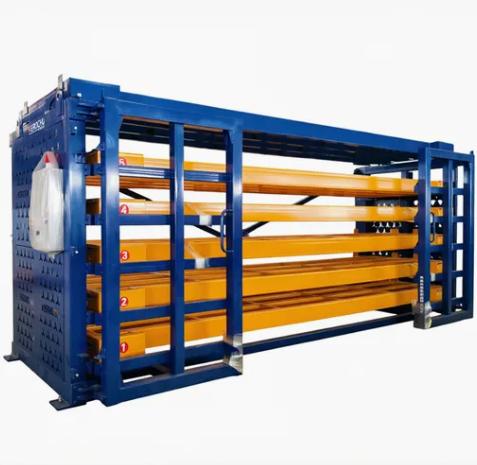

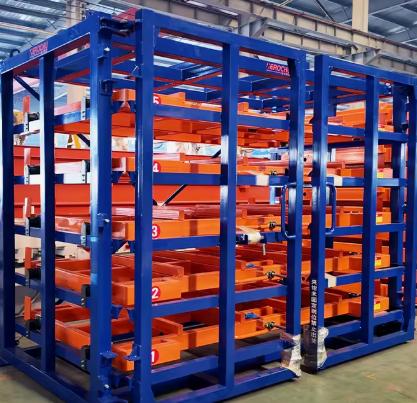

Herochu sheet metal storage racking systems address these challenges through drawer-type storage that provides complete separation between materials. Each sheet type or bundle occupies its own individual, fully extendable drawer. This design eliminates the stacking, leaning, and sliding that damage materials and endanger operators.

Heavy-Duty Engineering for Plasma Applications

Herochu racking systems for plasma cutting stations are built to handle the extreme loads typical of heavy plate processing. Standard configurations support 3 to 6 tons per layer, with customization available for heavier applications. The HC-B3015-63 accommodates 3000×1500 mm plates at 3 tons per layer; the HC-B4020-65 handles 4000×2000 mm plates at 5 tons; and the HC-B6020-66 supports 6000×2000 mm plates at 6 tons.

The structural foundation of each system is Q235B high-strength carbon steel, selected for its optimal balance of strength, plasticity, and weldability. The dual-beam crossbar design distributes heavy loads evenly across the support structure, preventing the deflection and fatigue that can cause catastrophic failure under extreme loads.

Each drawer extends completely on heavy-duty steel bearings. This 100% extension capability is critical for plasma cutting stations, where overhead cranes and magnetic lifters require unobstructed access to heavy plates. The lock-in and lock-out mechanisms for each drawer ensure safe operation during loading and retrieval.

Floor Space Recovery

Herochu sheet metal storage racking systems achieve remarkable floor space recovery for plasma cutting stations. Most clients reclaim 70-80% of the floor space previously dedicated to sheet metal storage. This recovered space can be used for additional production lines, finished goods storage, or expanded work areas.

The space efficiency comes from vertical expansion. While traditional storage methods consume horizontal square footage, Herochu systems leverage the cubic volume of the facility. Standard configurations include 5+1 layers—five storage layers plus a base layer—with the available height of each partition layer reaching up to 220 mm. This vertical density achieves 70% space reduction compared to conventional shelving.

Integration with Plasma Cutting Workflows

Herochu sheet metal storage racking systems are designed to complement plasma cutting machines, shears, press brakes, and other production machinery. The integrated pull-out drawer movement method allows single-person operation using lift equipment—overhead cranes, magnetic lifters, or hoists.

When a Herochu racking system is positioned adjacent to a plasma cutting station, the workflow becomes remarkably efficient. Operators extend the drawer containing the required plate, use an overhead crane or magnetic lifter to secure the material, and transport it directly to the plasma cutting table. The entire process takes minutes rather than the extended time typical of forklift-dependent systems.

Herochu systems can be customized with specific dimensions to align with the shuttle tables or loading arms of plasma cutting machines. This integration creates manufacturing cells where raw material flows directly from storage to cutting bed, eliminating intermediate staging and reducing material handling steps.

Safety Enhancements for Heavy Plate Handling

Safety is paramount when dealing with loads that can exceed several tons. Herochu racking systems incorporate multiple safety features designed specifically for heavy plate handling. The anti-tip design incorporates a 1.5-degree stability margin, eliminating fall hazards even when fully loaded drawers are extended. Each drawer features lock-in and lock-out mechanisms that secure the drawer during operation, preventing unintended movement while plates are being loaded or retrieved.

The ergonomic design extends to operational interfaces. Pull handles are positioned at optimal angles, and the ground clearance of the bottom layer—355 mm in standard configurations—accommodates forklift access without requiring operators to bend or strain. This safety-by-design approach reduces workplace injuries and their associated costs.

By eliminating the need for workers to climb on stacks or manually drag heavy plates, Herochu significantly reduces the risk of workplace injuries. The organized nature of the rack means every plate is accounted for, reducing the chaotic environment often found in busy plasma cutting shops.

Protection of Heavy Plate Inventory

Heavy plate represents a significant capital investment for any plasma cutting operation. Protecting this investment requires storage that prevents damage during handling and storage. Herochu sheet metal storage racking systems excel at material protection through individual drawer storage and full-surface support.

Each plate rests on a flat drawer surface, supported across its entire area. This eliminates the pressure points and concentrated loads that cause deformation in stacked systems. The smooth glide of the drawer mechanism prevents the jerking and scraping that damages plate edges and surfaces during retrieval.

The organized nature of the racking system also reduces inventory damage from mishandling. Operators can see exactly what material is available without disturbing other plates. This visibility reduces the “digging” that damages plate surfaces and edges in traditional stack systems.

Customization for Plasma Cutting Requirements

Herochu recognizes that plasma cutting stations have unique requirements based on the materials they process and the parts they produce. The company offers extensive customization options across all key parameters. Plate size configurations range from 3000×1500 mm to 6000×2000 mm, with custom dimensions available. Load capacity scales from 3 tons per layer to higher capacities for thick-gauge materials.

The number of layers can be adjusted to match production volume and available ceiling height. The available height of partition layers adjusts to accommodate different material thicknesses, from thin gauge sheets to heavy plate. External dimensions vary by model to fit within existing facility layouts.

Quality Assurance and Industry Recognition

Herochu sheet metal storage racking systems carry ISO9001 and EU CE certifications, confirming compliance with international quality and safety standards. The company’s technical patents and industry recognition—including AAA Credit Enterprise and Honest Entrepreneur designations—provide additional assurance of product quality. Herochu has signed strategic cooperation agreements with well-known domestic enterprises, demonstrating the trust that industry leaders place in the company’s products.

Conclusion

Herochu sheet metal storage racking systems for plasma cutting stations represent a strategic investment in operational efficiency, workplace safety, and material protection. The systems recover 70-80% of floor space previously dedicated to storage, eliminate material damage from improper handling, and create manufacturing cells where material flows seamlessly from storage to cutting bed. For plasma cutting operations seeking to maximize productivity and minimize costs, Herochu racking systems deliver measurable returns that justify the investment.
