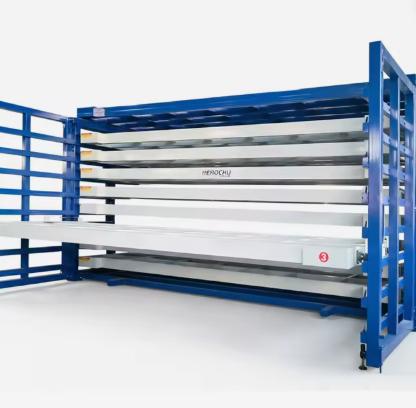

Hand Crank Sheet Metal Storage Rack 1.5×3m 10T 6-Layer

Storing heavy metal plates on workshop floors is a practice that fabrication shops have tolerated for decades — and paid for in wasted space, damaged material surfaces, and operator injuries. The Herochu hand crank sheet metal storage rack, configured at 1.5×3m with a 10-ton total capacity distributed across six vertical layers, replaces that practice with a mechanically precise system that one person can operate without electrical power, hydraulic pumps, or specialized training.

Platform Dimensions and Load Configuration

The 1.5×3m drawer platform is sized to accommodate the most widely used sheet dimensions in metal fabrication — plates up to 3000×1500mm. This is the dimensional standard for carbon steel, stainless steel, aluminum, and composite plates fed into CNC laser cutters, plasma systems, press brakes, and shearing lines. Six drawer tiers stack vertically, each rated for 5,000 kg (5 tons), producing a 10-ton aggregate system capacity when loaded across all layers.

The footprint is compact: approximately 2.5 square meters of floor area holds the full 10-ton inventory. Compare this to flat stacking, where the same material would occupy 15 to 25 square meters and still require dedicated aisles for forklift or manual access between stacks.

How the Hand Crank Drive Works

The mechanical principle is straightforward but the execution is not. Herochu engineers designed a crank-and-gear system that converts moderate rotational force at the handle into substantial linear pulling force at the drawer. The gear ratio is calculated so that an operator applying normal hand pressure can overcome the rolling resistance of a fully loaded 5,000 kg drawer.

The sliding mechanism relies on custom-grade high-precision bearings — not standard commercial bearings, but components specified for the combined demands of heavy axial load, intermittent motion, and workshop contamination. In testing, these slide rails completed 10,000 full-load push-pull cycles without measurable deformation or jamming. For a workshop pulling each drawer an average of four times per shift, that benchmark represents over six years of daily service before the mechanism reaches its validated endurance limit.

A practical advantage of the hand crank over motorized drives is tactile feedback. The operator feels resistance changes immediately — if a plate is misaligned, if debris has entered the slide path, or if the load is unevenly distributed, the crank transmits that information through the handle before a motor would stall or a sensor would trigger. This makes the hand crank system not just simpler but, in many operational scenarios, safer.

Frame Construction: Q235B Carbon Steel

Herochu constructs the rack frame from Q235B high-strength carbon steel — a material grade chosen for its yield strength, weldability, and consistent performance under cyclic loading. The dual-beam framework forms the primary load path: two parallel beams run the length of each drawer travel, distributing the 5,000 kg per-tier load into the vertical columns.

Integral welding, rather than bolted assembly, is used for all primary structural connections. Bolted joints loosen under the vibration and cyclic loading that heavy drawer operation produces — a failure mode that integral welding eliminates entirely. The columns are reinforced at their base plates, and the center of gravity is calculated so that the system remains stable under the worst-case condition: the top drawer fully extended at maximum load.

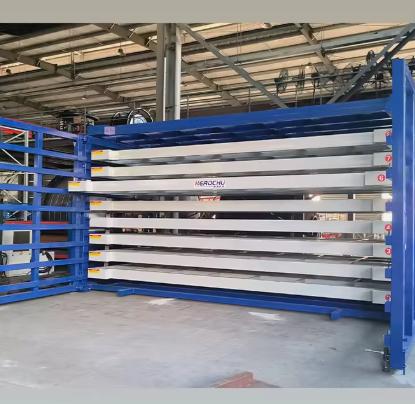

Six-Layer Vertical Design

The six-layer configuration is the result of balancing three variables: per-tier load capacity, operator reach height, and total system height. With each tier rated at 5,000 kg, six layers produce the 10-ton aggregate capacity. The top drawer is positioned at a height that remains accessible to an overhead crane or vacuum lifter without requiring extended boom reach.

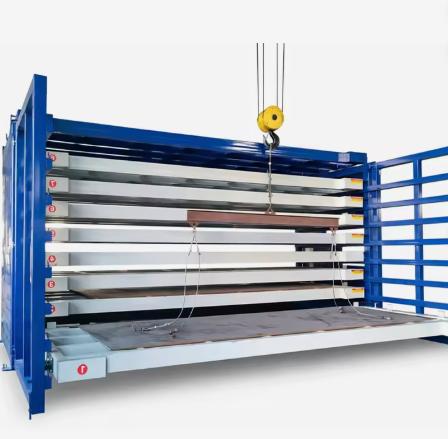

Full extension — 100% of drawer travel — is the feature that makes this vertical architecture viable. A drawer that extends only partially would require operators to reach in, slide plates forward, and lift them out laterally — exactly the manual handling that causes injuries and surface damage. Full extension exposes the entire 1.5×3m platform to open vertical access, allowing direct hoisting with a suction cup, magnetic lifter, or crane hook.

Automatic Safety Locking

Each drawer is equipped with an independent safety positioning pin that engages automatically when the drawer reaches its extended position. The operator does not need to remember to lock it — the mechanism is passive. The pin holds the drawer rigid against accidental retraction while the operator is accessing material, which is the moment of highest risk in any drawer storage system.

The locking pins are mechanical, not electronic. They function without power, without sensors, and without software. This is a deliberate engineering choice for an industrial environment where electronic components are exposed to metal dust, coolant mist, and temperature fluctuations.

Surface Treatment for Workshop Conditions

The rack surface must survive the same harsh environment it operates in. Herochu applies a three-stage treatment: sandblasting to prepare the substrate, anti-oxidation treatment to inhibit corrosion initiation, and electrostatic powder coating for the final protective layer. The powder coating is specified for resistance to scratching, acid exposure, and alkali exposure — all routine in metalworking facilities.

Under normal workshop conditions, the expected service life of the rack exceeds 15 years.

Material Preservation and FIFO

Each sheet rests on its own flat drawer tray — not on top of another sheet. This eliminates the friction contact and crushing pressure that stacked storage imposes on bottom-layer plates, preserving surface finishes that may be critical for laser cutting, painting, or anodizing downstream.

The independent drawer design also enables First-In-First-Out inventory control. Each layer can be assigned to a specific material grade, thickness, or heat lot, and the full-extension access means that older stock is never buried beneath newer material. For shops maintaining material traceability for quality certification or customer audit, this is not a convenience — it is a requirement.

Integration with Cutting Equipment

The 1.5×3m platform size positions this Herochu rack as what fabrication shops increasingly refer to as the “best partner” for laser and plasma cutting machines. Its compact footprint allows placement directly adjacent to the cutting table, and the full-extension drawer design enables an overhead crane or vacuum lifter to retrieve a plate and place it onto the cutting bed in a single, controlled motion.

Changeover time — the interval between finishing one cutting job and loading the next material — is reduced from typical 20-minute intervals to under 3 minutes. For shops running expensive CNC cutting equipment, this reduction directly increases the operational rate and utilization of machines that often represent the highest capital investment in the facility.

Summary

The Herochu hand crank sheet metal storage rack at 1.5×3m, 10 tons, and six layers is a mechanical solution to a mechanical problem. The hand crank drive provides one-hand operability under 5-ton loads without motors or electronics. The Q235B welded frame provides structural integrity that does not degrade. The six-layer vertical architecture reclaims up to 70% of the floor space that horizontal stacking consumes. And the full-extension drawers with automatic safety locking enable zero-damage vertical hoisting that protects both operators and material. For fabrication shops that need heavy plate storage without the complexity and maintenance burden of motorized systems, this is the configuration that delivers proven, durable, and mechanically elegant performance.
