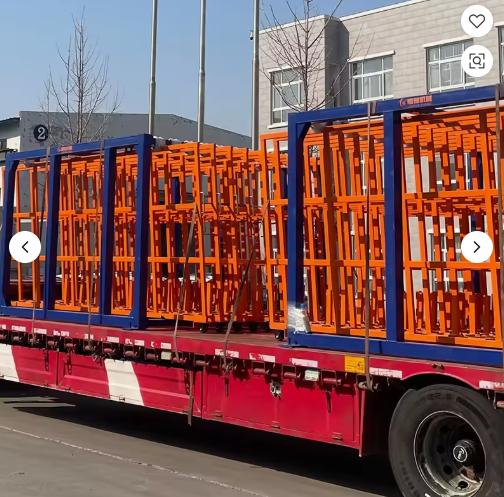

Vertical Pull-Out Sheet Remnant Rack – Maximize Material Utilization with Herochu

In the daily rhythm of metal fabrication, sheet remnants accumulate faster than most shop managers anticipate. Offcuts from laser cutting, stamping, and shearing operations pile up in corners, lean against walls, and occupy floor space that could otherwise accommodate productive machinery. These remnants, often dismissed as scrap, represent substantial financial value in raw materials—value that erodes with every bent edge, scratched surface, or lost piece buried beneath heavier stacks.

Herochu addresses this operational challenge through a fundamentally different storage architecture: the vertical pull-out design for sheet remnants. Unlike traditional horizontal stacking or static shelving, this system stores sheet materials vertically in individually operated pull-out drawers. Each drawer compartment holds sheets in isolation, eliminating the metal-on-metal friction that damages surfaces during retrieval. The vertical orientation transforms how fabrication shops manage their remnant inventory, turning disorganized piles into an accessible, categorized material library.

The Engineering Behind Vertical Pull-Out Storage

The operational superiority of the Herochu vertical pull-out system lies in its full-extension drawer mechanism. Every drawer extends completely beyond the rack frame, giving operators unobstructed visibility and access to all stored pieces. This 100% extension capability eliminates the need to shuffle or lift heavy upper plates to reach materials stored below—a common hazard and time drain in conventional storage methods.

Constructed from premium-grade structural carbon steel, these heavy-duty systems maintain strict structural integrity under massive industrial loads. The vertical, multi-drawer tower configuration capitalizes on underutilized vertical airspace, consolidating sprawling material piles into a secure, organized storage zone. Each drawer supports up to 1,000 kilograms per level, with specialized configurations handling up to 3 to 10 tons per shelf for heavy-duty applications.

Layered Organization and Material Utilization

The layered organization system forms the core of Herochu’s material utilization strategy. With tier counts customizable by material type—ranging from 2 to 15 layers—facility managers can categorize remnants by size, material grade, or thickness. This systematic arrangement transforms the chaotic scrap pile into a searchable inventory. When a specific piece is needed for a job, the operator simply pulls out the relevant drawer and visually confirms the material.

This accessibility drives higher material utilization rates. When operators can quickly locate and retrieve suitable remnants, they choose existing stock over ordering new raw material for smaller jobs. The financial impact is substantial: remnants that would otherwise be written off as waste become productive assets, reducing raw material procurement costs and improving overall shop profitability.

Space Efficiency and Workshop Integration

The vertical pull-out design delivers dramatic space savings compared to conventional storage methods. By transitioning sheet storage from flatbed stacking to vertical layout, the required horizontal floor footprint is reduced by up to 60 to 70 percent. This spatial efficiency frees critical floor space for production machinery, assembly workstations, or transit paths—capacity that directly translates to operational throughput.

Herochu systems accommodate standard plate sizes from 2000×1000mm up to 3000×1500mm across multi-layer designs. The compact footprint makes these racks ideal for placement near laser cutters, plasma tables, or press brakes, eliminating time wasted walking to distant storage areas. CE and ISO 9001 certifications ensure the equipment meets rigorous international safety and quality standards.

Durability and Long-Term Reliability

The steel construction of Herochu vertical pull-out racks ensures long-term reliability in demanding industrial environments. The powder-coated finish acts as a robust barrier against corrosion, scratches, and impacts. Drawer slides feature hardened steel ball bearings rated for 100,000 cycles under full load, ensuring smooth operation throughout the equipment’s service life. For workshops processing high volumes of sheet material, this durability translates to decades of reliable service with minimal maintenance requirements.
