High-Density Industrial Storage for Long Steel & Pipe Materials

Warehouse managers handling structural steel, seamless tubing, and extruded profiles face a recurring headache: long materials consume enormous floor area while delivering poor pick-and-retrieval speed. A conventional cantilever rack forces operators to reserve wide aisle clearance for forklift turning radius — usually three to four meters per bay. Across a 10,000-square-meter facility, those aisles can swallow more than 40 percent of available floor space before a single bar is even placed in storage.

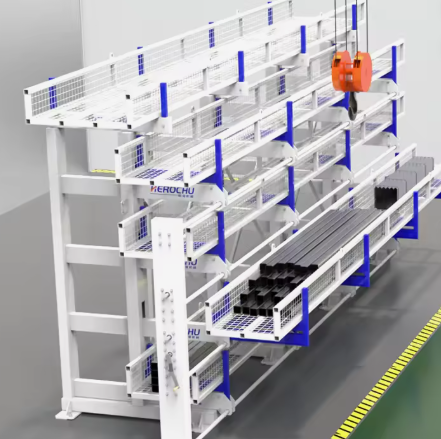

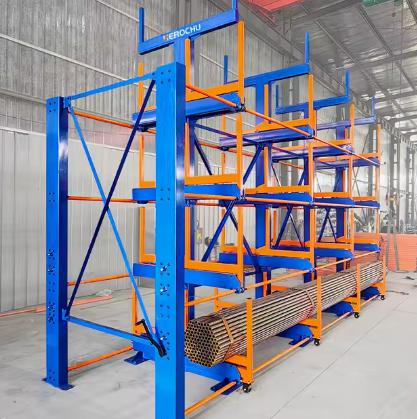

Herochu addresses this bottleneck with a telescopic cantilever rack system that eliminates the forklift aisle requirement entirely. The arms extend outward during loading and retract flush when idle, compressing the same material volume into roughly one-third the footprint of fixed-aisle racking. Factory operators who retrofit with this design routinely report stocking two to three times more linear footage of bar, tube, and profile without expanding building square footage.

How the Telescopic Mechanism Saves Floor Space

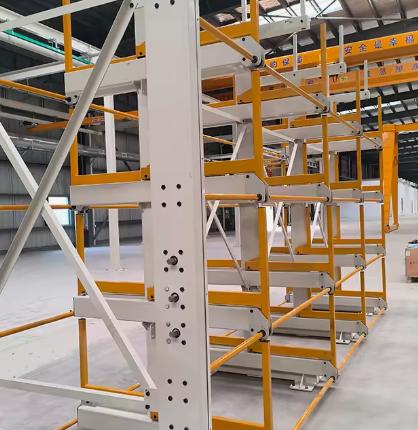

The operating principle is straightforward. Each storage level sits on independent slide rails driven by a manual crank or an electric motor. When an operator needs to access tier three, only tier three extends. The remaining tiers stay retracted, forming a compact column that frees up the aisle for crane movement, pedestrian traffic, or additional rack rows. Because no permanent aisle has to be carved out for vehicle turning, every square meter between rack columns becomes productive storage.

For a typical heavy fabrication shop storing 6-meter and 9-meter steel pipe, switching to Herochu telescopic racks lets the warehouse consolidate two or three scattered storage zones into one contiguous high-density block. The result is shorter travel paths for overhead cranes, fewer forklift trips, and faster material staging for downstream cutting and welding stations.

Classification Without Complication

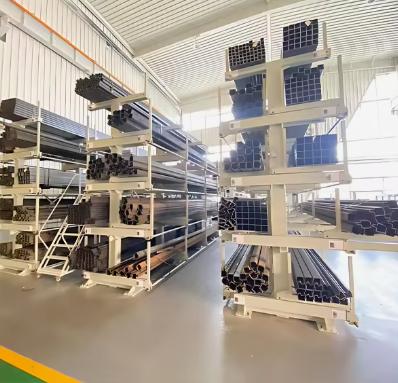

Long-material inventories tend to grow chaotic as SKU counts climb. Alloy grades, diameters, wall thicknesses, and heat numbers all demand separate physical segregation, yet mixing them on shared shelves is fast and cheap. Herochu racks solve this by dividing each bay into independently extendable compartments. Every tier functions as a dedicated cell for a single material grade or dimension, with clear labeling on both front and rear faces.

This compartmentalized layout simplifies warehouse management in three concrete ways. First, inventory counting becomes faster because each cell holds one identifiable batch — no digging through mixed piles. Second, picking errors drop because the operator extends only the correct tier, exposing exactly the material needed. Third, first-in-first-out rotation becomes practical: new stock loads from one side while existing inventory feeds out the other, preventing the rust and obsolescence that plague long-term pipe storage.

Load Capacity and Structural Design

Herochu builds every rack frame from Q235B high-strength structural steel, assembled with a dual-beam crossbar arrangement that distributes weight evenly across the column. Each compartment carries between 3,000 kg and 5,000 kg depending on model configuration — enough for bundled structural tubing, solid bar stock, or nested profiles. The dual-arm rear-lock mechanism mechanically prevents over-extension and keeps goods stable even when a single tier protrudes fully under full load.

The standard product line spans four model sizes matched to common material lengths. The HC-G6053 and HC-G6053S accommodate 6,000 mm pipe with 5 configurable tiers and a 3,000 kg per-level rating. The HC-G9065 stretches to 9,000 mm material length with 6 tiers, each rated at 5,000 kg. For facilities running 12-meter lengths, the HC-G12065 provides 6 tiers at 5,000 kg per compartment. All models support dual-side mechanical-assisted discharge, meaning operators can load and retrieve from either face of the rack — a significant advantage when racks are positioned back-to-back or against a receiving bay wall.

Operation: Crank or Button

Manual racks use a geared hand-crank system with mechanical advantage ratios that let a single operator extend a fully loaded 5-ton tier without powered assistance. The crank handle mounts at ergonomic waist height, and the gearing is enclosed to prevent contamination from mill scale, cutting fluid mist, or ambient dust.

Electric variants add a push-button control panel at each bay. Operators press the button for the required tier; a motor-driven leadscrew extends that arm set to its full travel. The control logic includes a safety interlock that prevents two tiers on the same column from extending simultaneously, eliminating the tipping hazard that limits some competing designs. A single worker can cycle through retrieve depot return operations across a 20-bay installation without walking back to a central console.

Compatibility with Existing Handling Equipment

Herochu telescopic racks integrate with the lifting and transport tools that heavy fabrication shops already own. Overhead bridge cranes clear the retracted rack profile and drop directly onto the extended arms. Side-loading forklifts pick from the rack face without entering the aisle. For facilities using vacuum lifters or magnetic beam handlers on long structural sections, the extended arms present the load at a consistent, predictable pickup point every time. Material preparation lead time shrinks because the operator no longer sorts through piles or repositions stock before lifting.

Safety Features That Reduce Liability

Material storage accidents in steel service centers typically stem from two causes: goods rolling off unsecured arms, and racks tipping under uneven load distribution. Herochu addresses both with a layered safety design. Each arm face includes anti-roll shoulders that cradle round stock and prevent lateral movement. The rear-lock structure anchors the extended arm to the column at two points, creating a rigid triangle that resists deflection even with an off-center load. Powder-coated bright orange safety markings on arm tips and column edges improve visibility in dimly lit warehouse aisles.

Storing pipes and profiles in separate, locked-in compartments also removes the compression damage that occurs when heavy bundles rest directly on lighter-gauge material stored beneath them. Surface finish stays intact. Bent or ovalized tube ends — a common rejection reason at fabrication quality gates — become less frequent.

Fit Across Applications

Heavy fabrication, structural steel distribution, oil country tubular goods (OCTG) yards, aluminum extrusion warehouses, and shipyard material staging all benefit from the same underlying design logic: store more long stock in less space while cutting the labor minutes per pick. Herochu has delivered installations ranging from 10-bay manual systems for small job shops to 80-bay fully electric configurations feeding automated cutting lines.

Each rack is built to order, with tier counts, compartment widths, and load ratings adjusted to the customer’s specific material mix. The modular frame design also permits future reconfiguration — additional tiers bolt onto existing columns, and bay count expands linearly without redesigning the layout.

For operations evaluating whether high-density storage can replace or supplement their current long-material racking, the metric that matters most is stored linear meters per square meter of floor. On that measure, the telescopic design consistently outperforms fixed-aisle cantilevers by a factor of two or more, with faster retrieval times and fewer damage claims to show for it.
