Design Plan for Handling and Storage of Fiber Laser Cutting Machine

Fiber laser cutting machines have revolutionized metal fabrication with their speed, energy efficiency, and ability to cut reflective materials like copper and brass. However, the handling and storage of raw sheets and cut parts often become the hidden bottleneck. A well-executed design plan for handling and storage of fiber laser cutting machines must address three conflicting demands: high-density storage to save floor space, damage-free material transfer to preserve surface quality, and rapid retrieval to keep the fiber laser cutting at maximum utilization. Herochu has developed a design plan that resolves these conflicts through a servo swing arm manipulator paired with drawer-type heavy duty racks, both engineered specifically for the unique characteristics of fiber laser processing.

Why Fiber Laser Cutting Machines Need Specialized Handling and Storage

Fiber laser cutting machines typically operate at higher accelerations and faster traverse speeds than CO2 lasers. This means the cutting table is ready for the next sheet sooner, putting pressure on the material handling system to keep up. Additionally, fiber lasers produce exceptionally clean cuts with minimal heat-affected zones, but the raw sheets – especially thin-gauge stainless steel or aluminum – are prone to scratches from sliding contact during loading or storage. A generic design plan for handling and storage of fiber laser cutting machines often fails because it either prioritizes density over accessibility (deep-lane racks that require moving many sheets) or accessibility over density (floor storage with narrow aisles). Herochu’s plan achieves both.

Herochu’s Design Plan Components

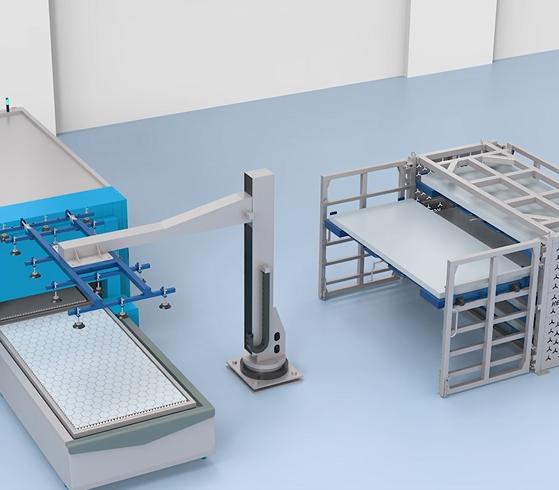

The Herochu design plan consists of two interdependent systems: the Servo Swing Arm Handling Manipulator for damage-free loading/unloading, and the HC-B series Drawer-Type Storage Rack for vertical density. Optional integration with an exchange platform or material warehouse is available for fully automated lines.

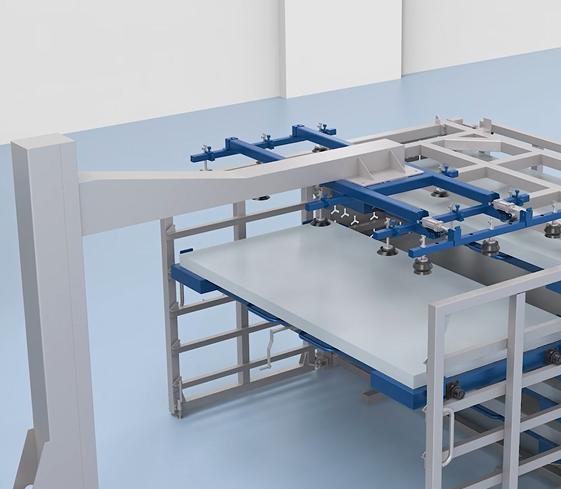

1. Servo Swing Arm Handling Manipulator – Tailored for Fiber Laser Feed Rates

Herochu offers five standard manipulator models under the design plan: HC-R3015-500, HC-R3015-750, HC-R3015-1000, HC-R4020-500, and HC-R4020-750. The numbers indicate maximum sheet size (e.g., 3015 = 3000x1500mm) and weight capacity in kilograms. The manipulator’s electric servo drive provides variable speed control, allowing operators to move heavy plates slowly during positioning and faster during transport. This is critical for fiber laser cutting machines that process mixed gauges – a 20mm thick steel plate requires slower, deliberate handling compared to a 1mm aluminum sheet.

The suction cup array is configurable from 15 to 118 cups with diameters of 150mm, 200mm, or 250mm. For thin sheets (1-8mm), more smaller cups distribute the vacuum force to prevent dimpling. For thick plates (up to 20mm), fewer larger cups provide higher individual holding force. Herochu’s design plan includes a cup layout recommendation based on your material portfolio.

Safety features are non-negotiable in a fiber laser environment where operators may be moving sheets while the laser is cutting on another table. The manipulator includes an emergency stop button within finger reach and an auto-braking system that holds the load statically if power drops or if the operator releases the handle. No manual clamps or secondary locks are required.

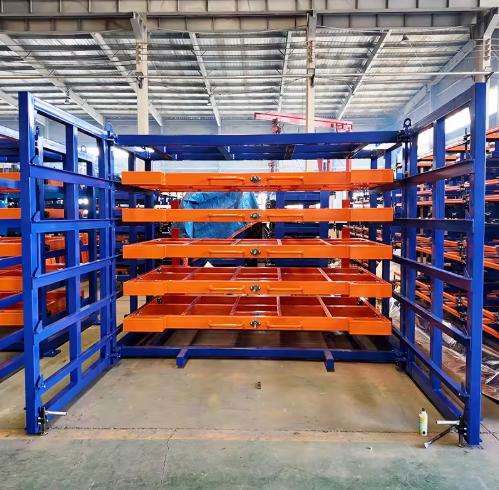

2. Drawer-Type Heavy Duty Storage Rack – Laser-Cut Precision from Herochu’s Own Machines

The storage half of the design plan uses Herochu’s HC-B series racks, with model codes such as HC-B3015-63 (3m x 1.5m, 6 layers, 3 tons per layer). Each layer is a full-extension drawer that pulls out 100% of its depth. This means a sheet stored at the very back of the drawer is accessible from the front once extended. The rack body is fabricated from Q235B or Q355 high-strength steel, and all holes are cut on Herochu’s own fiber laser cutting machines. The result is bolt-hole tolerances within ±0.1mm, ensuring that even under a full six-ton load (HC-B6020-66 model), the bolted connections remain tight and the frame does not rack or twist.

Vertical space utilization is dramatic. A traditional floor storage layout for 30 sheets of 4000x2000mm steel might occupy 80 square meters. The same sheets stored in a Herochu 5+1 layer rack require only 16-20 square meters. The bottom layer ground clearance is 355mm to allow manipulator or forklift entry, and the top layer height ranges from 2000mm to 2500mm depending on the model. Workshops with low ceilings can choose the HC-B3015-63 with a 2000mm overall height.

3. Integration with Exchange Platforms and Material Warehouses

Herochu’s design plan for handling and storage of fiber laser cutting machines is not limited to standalone racks and manipulators. For high-volume production, the plan can include an exchange platform that automatically shuttles sheets from the storage rack to the cutting table. Alternatively, a material warehouse configuration uses multiple storage racks arranged in aisles, with the servo manipulator riding on a gantry to serve all racks. The specific loading method – board rack, exchange platform, or material warehouse – is determined during the technical consultation. Herochu requires details of your fiber laser cutting machine’s table size, loading height, and cycle time expectations to produce the optimal design.

On-Site Installation and Global Support

A design plan is only as good as its implementation. Herochu provides on-site installation and debugging for customers worldwide. Their engineers travel to your facility, verify floor flatness, measure laser cutting machine positions, and calibrate the manipulator’s servo parameters to match your material handling rhythms. They also train operators on safe use of the emergency stop and auto-braking features. After installation, Herochu offers remote support and spare parts supply.

Technical Parameters for SEO Targeting

For searches related to “design plan for handling and storage of fiber laser cutting machine,” Herochu’s key specifications include: feeding plate thickness 1-20mm, maximum feeding format 4000x2000mm, minimum feeding format 1250x1000mm, plate weight capacity 300-1000kg (manipulator), storage rack single-layer load 3-6 tons, number of layers 5+1, drawer movement integrated pull-out type, power mode electric with servo drive.

Frequently Asked Questions in Design Planning

Q: What information do I need to provide to get a design plan from Herochu?
A: Tell Herochu the material type (steel, stainless, aluminum, etc.), sheet dimensions, maximum sheet weight, number of different sheet sizes or gauges you store, your fiber laser cutting machine’s table size and loading height, and whether you need manual or automated unloading. Leave your contact details (WhatsApp, WeChat, email) on the Herochu portal for a prompt response.

Q: Does the design plan include a loading robotic arm for finished parts?
A: Yes, if required. Herochu can integrate a robotic arm for unloading cut parts from the fiber laser cutting machine. The arm’s reach, payload, and end-of-arm tooling are specified based on your part geometry and weight. Provide the laser cutting machine table layout and typical nesting pattern for a customized solution.

Q: How long does installation take?
A: For a standard manipulator plus one storage rack, on-site installation and debugging typically takes 2-3 days. For multi-rack warehouse systems with gantry manipulators, allow 5-7 days.

Herochu’s design plan for handling and storage of fiber laser cutting machines is a proven pathway to higher throughput, safer operations, and better space utilization. Contact Herochu today to begin your customized plan.
