Industrial Vertical Storage System for Steel Plates and Sheet Metal

Heavy industry demands heavy-duty solutions. The storage and retrieval of steel plates weighing several tons, measuring up to 6 meters in length, and varying widely in thickness and metallurgical properties cannot be adequately served by generic warehouse equipment. What is required is a purpose-built industrial vertical storage system for steel plates and sheet metal—a solution engineered from the ground up to withstand punishing loads, facilitate rapid access, and integrate seamlessly into a rough, demanding factory environment. Herochu delivers exactly this with its range of intelligent vertical warehouses and telescopic cantilever racks.

The definition of an industrial vertical storage system in this context includes two primary configurations from Herochu, each suited to different operational needs. The first is the automated vertical tower system (models HC-S3015-63 through HC-S6020-105), which uses vertically stacked, horizontally extending trays. This is ideal for facilities processing standard-sized sheets (3m, 4m, 6m lengths) with high throughput and a need for real-time inventory tracking. The second is the roll-out telescopic cantilever rack system, designed for long materials like bar stock, tubes, pipes, and mandrels. Both are heavy-duty, but the telescopic cantilever is specifically optimized for accessing individual long items from a dense storage block without moving other materials.

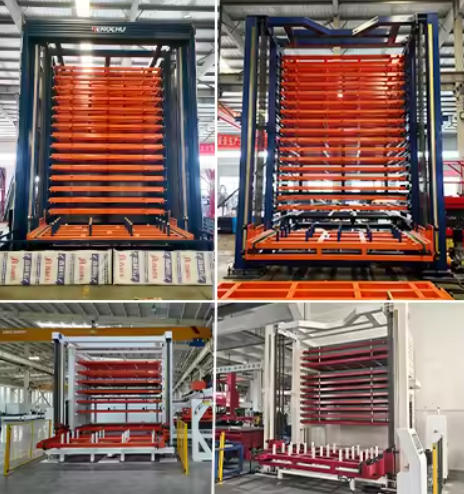

Focusing first on the vertical tower system, the engineering for heavy plates is evident in every specification. Consider the Herochu HC-S6020-105. This unit handles sheet dimensions of 6000x2000mm—large enough for shipbuilding panels or structural steel components. It supports a maximum load of 5000kg per level across 10 layers, for a total potential stored weight of 50,000kg within a single tower. The movement method—linear guide rail plus chain drive—is chosen for this application because chains do not slip under heavy load and linear rails provide rigid, low-friction guidance. The transfer speed of 5-15 m/min ensures that even a 5-ton sheet can be moved smoothly and stopped precisely (±2mm repeatability) without dangerous swinging or inertia damage to the material or mechanism.

The telescopic cantilever shelves offer a different type of heavy-duty solution, optimized for length rather than sheet area. The Herochu models HC-S2513-63, HC-S3013-83, and HC-S3015-83 are engineered for bar stock, angle iron, pipe, and rollers. Key features include the ability to extend arms 100% of the tray depth, providing complete access to the stored material. This is critical for long items; a crane or operator can pick the exact tube needed from the back of the rack without unloading the front items. The total load per unit ranges from 18T to 24T, distributed across the structure. The chain drive transmission ensures that even the heaviest long bundle can be rolled out smoothly. The system is available in single or double units, and can be electrically driven for automated operation, moving from a manual-access solution to a semi-automated storage and retrieval system for long goods.

A primary advantage of the Herochu industrial vertical storage system is its compatibility with existing overhead cranes and forklifts. A common failure of many automated storage solutions is that they require a specific, proprietary load-handling device. Herochu takes the opposite approach. The system is designed with generous clear space per level (customizable, with a standard of 350mm in many models) specifically to accommodate the hooks, slings, or forks of standard industrial lifting equipment. This design choice significantly reduces the total cost of ownership and integration complexity. You do not need to buy a new crane; you simply use your existing one more effectively because you are not wasting time searching for plates on the floor or in a disorganized pile.

Inventory management in this heavy environment transitions from chaotic to orderly. With floor storage, tracking which specific plate or bar of a certain grade is where is nearly impossible without constant manual effort and tagging. The Herochu system, even in its telescopic cantilever version (which can be managed via a basic PLC interface or integrated into the full WMS), enforces organization by category and size. Each layer or cantilever position can be assigned to a specific material. The automated vertical towers take this further with real-time digital inventory on the PLC touchscreen, tracking dimensions, weight, and quantity. This eliminates the “lost” inventory of expensive steel plates buried under others, reducing the need to reorder material that is actually in stock but inaccessible.

Safety for personnel and protection of expensive raw materials are central to the industrial design. The reinforced steel structure of both the tower trays and the telescopic cantilevers is certified for the rated loads, ensuring no creep or deformation over years of use. The availability of options like trays for leftovers encourages good housekeeping, ensuring that small, valuable remnants are not lost or damaged. The controlled, slow movement of the trays (5-15 m/min) prevents accidents caused by speeding forklifts in narrow aisles, a common hazard in traditional warehouses. By centralizing storage and automating retrieval, the system also reduces the number of forklift or crane trips required to find and fetch material, lowering the overall risk of impact accidents in the workspace.

In summary, for any industrial operation dealing with the logistical nightmare of heavy steel plates and long metal stock, the Herochu industrial vertical storage system for steel plates and sheet metal provides a robust, scalable, and intelligent answer. Whether the need is for high-density automated vertical towers for sheet processing or telescopic cantilever racks for long bar and tube storage, Herochu offers engineered solutions that prioritize load capacity, operational efficiency, and seamless integration with existing heavy lifting equipment. The result is a safer, more organized, and significantly more productive material storage and retrieval operation capable of supporting the most demanding industrial production schedules.
