Automated Vertical Sheet Metal Storage Warehouse: A New Standard for WMS Integration

The modern sheet metal fabrication facility requires more than just physical storage space; it demands an organized, data-driven, and responsive material logistics system. Traditional warehouses, relying on fixed shelving and manual forklift operations, struggle to provide the real-time inventory accuracy and rapid retrieval speeds needed to support CNC punch presses, laser cutters, and press brakes. The Herochu automated vertical Sheet Metal storage warehouse constitutes a paradigm shift, turning the storage function into an active, intelligent participant in the production workflow, guided by a fully integrated Warehouse Management System (WMS).

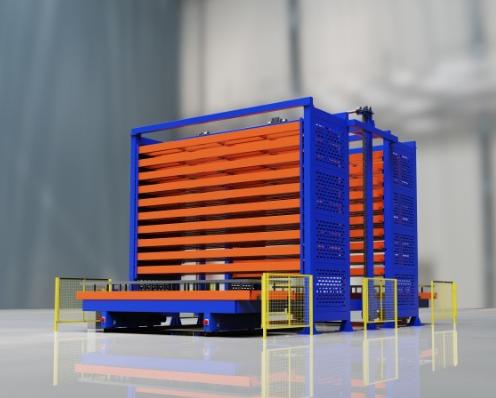

What distinguishes an automated vertical Sheet Metal storage warehouse from a simple vertical rack is the degree of control, data integration, and operational autonomy. The Herochu system is not merely a stack of trays; it is a closed-loop material management ecosystem. The core is a purpose-built WMS that runs on the PLC touchscreen hardware. This WMS manages complex tasks: dynamic slotting (assigning new materials to optimal storage locations), inventory tracking by lot and grade, usage frequency analysis, and automated cycle counting. For multi-tower configurations like the HC-S4015-2-83 (dual-tower design), the WMS coordinates movement between towers, balancing loads and minimizing travel distances for the retrieval mechanism.

The operational process within this automated warehouse is designed for efficiency and error elimination. When a delivery of steel plates arrives, an operator uses the Herochu WMS interface to log the material. The system might present recommendations: “Store 3-ton, 4000x1500mm carbon steel plates in Tower 1, Levels 4-6 based on current weight distribution.” The operator confirms, and the system directs the storage. This process eliminates guesswork and prevents misplacement. When a production order requires a specific 5000kg plate, the operator simply inputs the job number or material ID. The WMS checks the inventory, identifies the precise location (e.g., Tower 2, Level 8), and orchestrates the automated retrieval sequence without further human intervention.

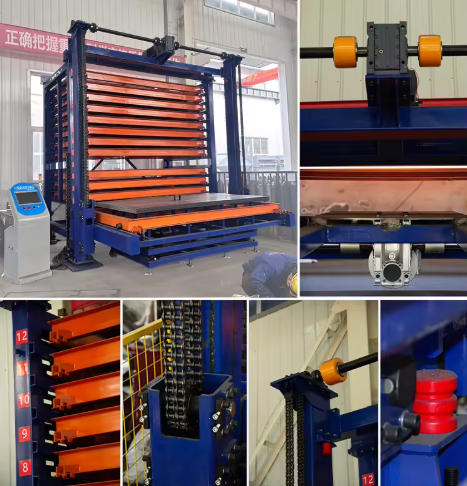

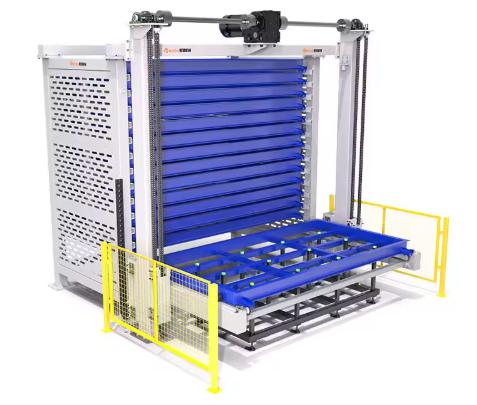

The technical parameters of the Herochu warehouse directly support heavy industrial use. The transfer speed of 5-15 m/min is a deliberate balance between speed and stability for multi-ton loads. The repeatability of ±2 mm is critical for automated or semi-automated material hand-off to downstream equipment. The per-level loads of up to 5000 kg (as in the HC-S4020-105 and HC-S6020-105 models) ensure the system can handle the thickest armor plate or die steel. The use of a chain drive transmission and linear guide rails provides durability and smooth motion under these extreme loads, unlike belt-driven systems that can stretch or slip over time with heavy-duty cycles.

Integration with external systems is where the Herochu automated warehouse proves its strategic value. The system features a bi-directional interface with your factory’s ERP. This is not a simple data export; it is a live connection. The warehouse’s WMS sends real-time inventory updates—every storage and retrieval event is logged. In return, the ERP can send production schedules to the Herochu WMS, enabling a “lights-out” material staging function. For example, the ERP knows that Job #452 will run on Laser Cutter 3 at 2:00 PM. It can instruct the Herochu WMS to retrieve the required plate for that job at 1:45 PM and have it waiting on the unloading station. This level of synchronization reduces machine idle time caused by material delays.

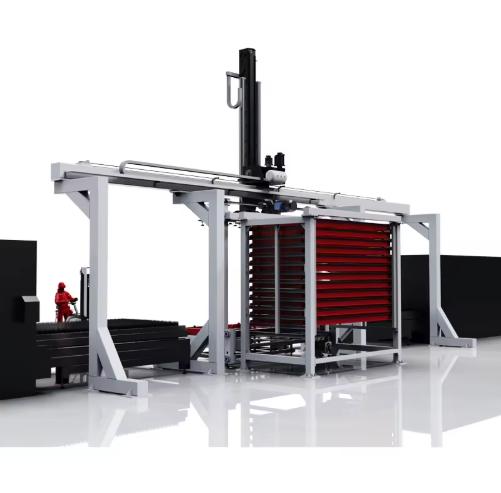

The warehouse is also designed for compatibility with your existing material handling fleet (forklifts and overhead cranes) as well as future automation. The clear space per level (customizable from 240mm) provides ample room for crane hooks to engage the tray. However, the system can also be equipped with interface options for automated guided vehicles (AGVs). An AGV could approach the unloading station, receive a signal from the Herochu PLC that the material is ready, pick it up, and transport it directly to a CNC cutting machine—completing a fully automated material flow from storage to processing.

Safety and reliability are embedded at the mechanical and control levels. The reinforced steel structure of each storage tray is designed for its specific max load without deformation, even after thousands of cycles. Photoelectric interlocks prevent the vertical lift or horizontal tray from moving if an operator or obstruction is detected in the path. The PLC control includes comprehensive diagnostics, immediately flagging issues such as a motor overcurrent or a sensor failure, and will safely halt operations to prevent damage. This robust construction ensures high uptime, which is essential for any warehouse intended to be the central material hub for a production facility.

In conclusion, building or upgrading to an automated vertical Sheet Metal storage warehouse from Herochu is an investment in operational intelligence, not just storage capacity. By combining heavy-duty mechanics with a sophisticated WMS and seamless ERP integration, it solves the chronic problems of disorganized storage, slow retrieval, and inaccurate inventory. The result is a material logistics backbone that actively supports lean manufacturing, just-in-time delivery, and high overall equipment effectiveness (OEE) for your processing machinery.
