Multi-Tower Single-Row Smart Stereoscopic Sheet Material Library

The concept of a material library implies more than passive storage—it suggests cataloging, searchability, rapid checkout, and a structured index. Herochu applies this library logic to metal sheet handling with the Multi-Tower Single-Row Smart Stereoscopic Sheet Material Library. This system treats every individual sheet or stack as a book on a shelf, complete with metadata: dimensions, weight, material grade, inbound date, and remaining quantity. The difference is that retrieval happens not by a librarian on a ladder but by an automated tower-running cart guided by a warehouse management system (WMS) that communicates directly with the factory’s ERP.

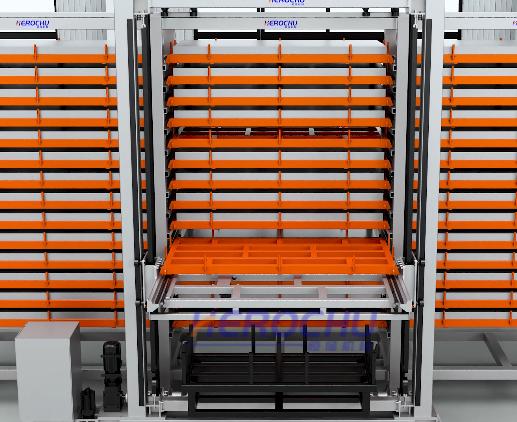

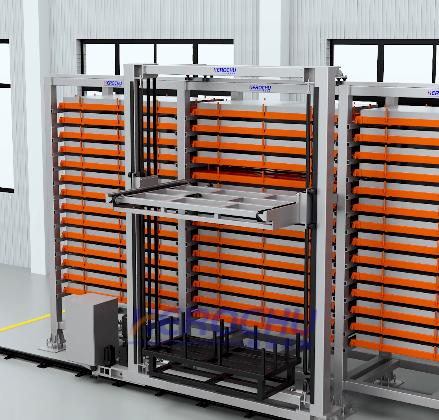

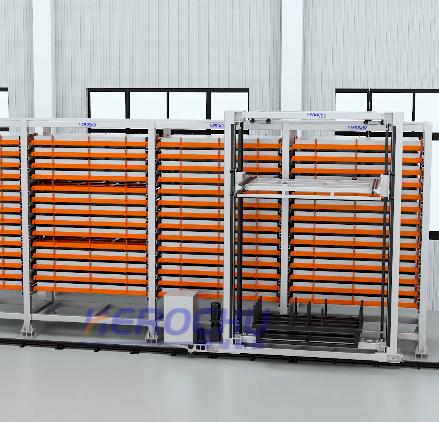

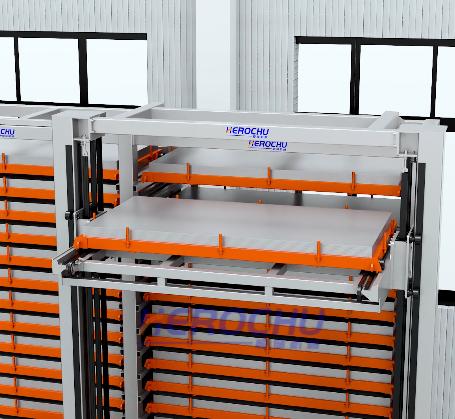

At the core of the Herochu smart stereoscopic library is the single-row multi-tower physical arrangement. Storage towers are placed side by side in a straight line, each tower divided into customizable layers. The “stereoscopic” descriptor applies because access is three-dimensional: horizontal travel along the row, vertical lift within a tower, and depth extension into the compartment via a telescopic fork. Unlike automated vertical carousels that rotate entire loops, the Herochu system keeps every tower stationary, moving only the retrieval mechanism. This reduces mechanical complexity and increases reliability, especially under heavy loads up to 5000 kg per level.

The library’s intelligence derives from two integrated software layers. The first is the PLC-based motion controller, which handles real-time positioning, speed regulation (5–15 m/min), and collision avoidance. The second is the WMS module, which maintains a digital twin of every storage location. When a sheet is deposited at the entry station, the system automatically captures its footprint using a bank of through-beam sensors. If the sheet measures 4000×1500 mm, the WMS checks available locations across all towers that can accommodate that size. It then directs the cart to place the sheet into the first suitable slot. The operator does not need to decide where to store anything—the library self-organizes.

Real-time inventory visibility is where the Herochu library outruns any manual system. The touchscreen interface shows a color-coded grid of all towers and layers: green for occupied, blue for empty, yellow for slots reserved for incoming material. Tapping any occupied cell reveals a detailed card: material type (e.g., stainless steel 304), thickness (2.5 mm), dimensions (4000×1500 mm), weight (235 kg), quantity (12 sheets), and timestamp of last movement. This data is also pushed to the factory ERP via an open API or standard protocol like OPC UA or Modbus TCP. The production planner can therefore see, from their desktop, exactly how many sheets of 3 mm aluminum are available without walking to the storage area or calling a forklift driver.

ERP integration goes further than simple visibility. Herochu has designed the smart stereoscopic sheet material library to act as an active inventory manager. When the ERP schedules a laser cutting job for a batch of 10 sheets of 5 mm mild steel, the system automatically reserves those sheets in the library. If the reserved quantity drops below the job requirement due to a prior withdrawal, the ERP receives an alert before cutting begins. Conversely, when a job completes and excess sheets are returned, the operator scans a barcode on the remnant, and the library updates the inventory immediately—no manual data entry, no spreadsheet reconciliation.

A practical example from a mid-sized fabrication shop illustrates the efficiency gain. Before installing the Herochu HC-S4015-3-85 (three towers, eight layers per tower, 5000 kg per level), the shop spent an average of 18 minutes per material retrieval: locating the stack, moving other sheets, forklift travel, and updating paper cards. After installation, average retrieval time dropped to 45 seconds. The library also eliminated the common problem of “lost” sheets—material that was physically present but whose location was forgotten. Because the WMS knows exactly where every sheet resides, the notion of lost inventory disappears. Additionally, the system records retrieval frequency per material type, enabling the purchasing department to adjust order quantities based on actual consumption curves.

The smart stereoscopic library supports mixed-material storage without segregation hassles. One tower may hold copper sheets on the lower layers and galvanized steel on the upper layers; another tower may be dedicated to aluminum. The retrieval cart does not confuse them because each compartment’s contents are digitally labeled. For shops that process remnants from previous cuts, Herochu offers a remnant nesting feature: the system can store non-full-sized sheets and report their usable area to the nesting software, reducing scrap rates by up to 12% in documented installations.

Safety features in the Herochu library align with its library analogy: quiet, orderly, and protected. Photoelectric curtains around the cart path stop movement immediately if interrupted. Weight checks before lifting prevent overload conditions that could bend the telescopic fork. An optional fire suppression system with smoke detectors can be integrated into the tower tops—critical for shops storing reactive metals like titanium or magnesium. With repeatable positioning accuracy of ±1 mm, the cart never collides with protruding sheet edges, preserving both material quality and equipment longevity.

For factories seeking a step toward Industry 4.0, the Herochu Multi-Tower Single-Row Smart Stereoscopic Sheet Material Library serves as the foundational data source for material traceability. Every movement is logged. Every sheet’s history is retrievable. And because the library occupies a single row, it can be expanded by adding more towers to the end of the line—no reconfiguration of the existing automation. That modular growth path is rare in industrial storage. Herochu has deliberately engineered the system to start small (two towers, six layers) and scale to twelve towers or more without replacing the main controller or the handling cart.
