Sheet Metal Loading System for Laser Cutting

A sheet metal loading system is not a commodity. The differences between a semi-automatic swing arm and a fully integrated gantry tower determine whether the system accelerates production or becomes a constraint of its own. Herochu manufactures both approaches, and the choice between them depends on variables that every fabricator should evaluate before committing capital: material mix, shift structure, floor space, and the intended role of the laser in the broader production workflow.

The Spectrum of Automation

Herochu’s product range spans a deliberate spectrum. At one end, the servo swing arm semi-automatic loader provides powered lifting and positioning while keeping an operator in the loop for final placement verification. At the other, the fully automated gantry system with integrated storage operates without human intervention between material issue and finished-part discharge. Neither is universally superior. The semi-automatic system suits job shops with variable material flows, frequent one-off jobs, and operators who prefer tactile confirmation of sheet alignment. The fully automated system suits production environments with repeatable nest patterns, high volume, and the floor space to accommodate vertical storage.

When the Gantry Tower Makes Sense

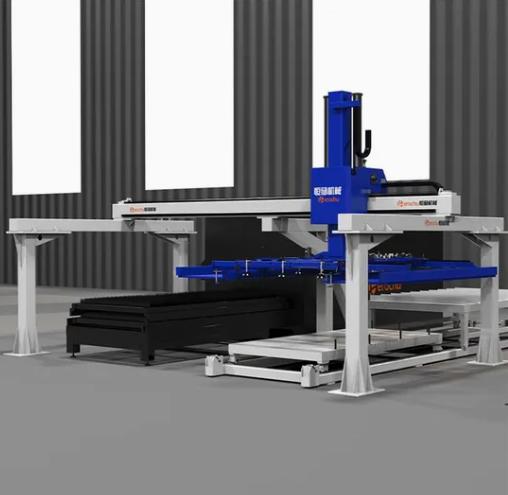

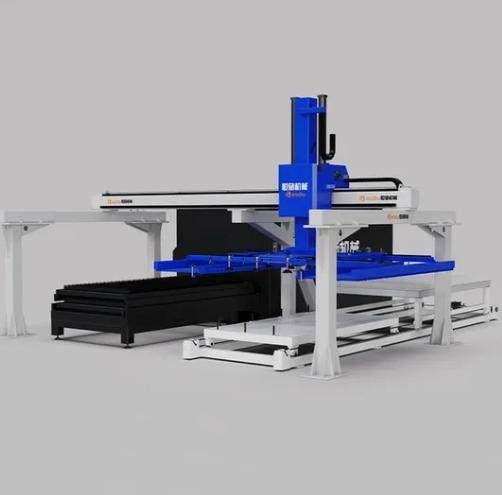

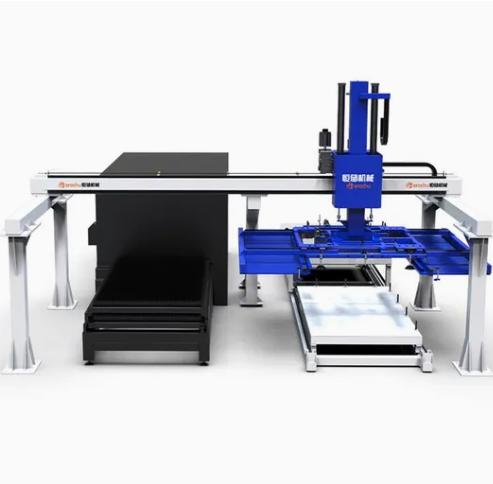

The integrated gantry configuration—storage tower, overhead truss, vacuum and gripper end effectors—delivers its greatest value under specific conditions:

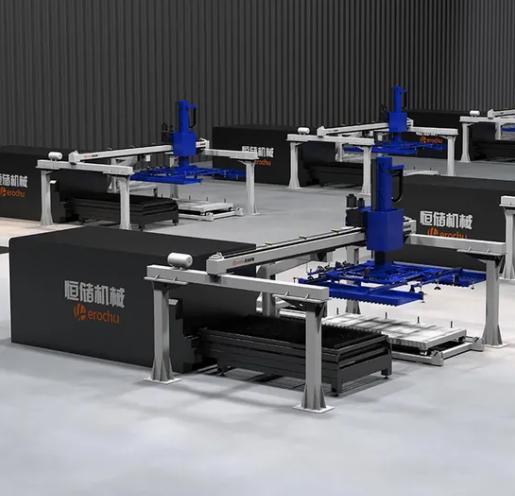

• Multiple lasers, one material source: A single gantry can serve two cutting beds and two storage towers, centralizing material flow and eliminating duplicate forklift traffic.

• Consistent high volume: When the same gauge and alloy runs repeatedly, the storage tower maintains a buffer that decouples material supply from cutting demand.

• Lights-out ambitions: Unattended operation requires automated loading; there is no middle path once the operator leaves.

• Floor space constraints: Vertical storage recovers floor area that horizontal racking consumes. A ten-layer tower footprint holds material that would otherwise occupy multiple pallet positions across the shop floor.

The HC-A series accommodates sheet sizes from 3000×1500 mm to 6000×2000 mm, with layer counts of eight to ten and per-layer loads of 3,000 to 5,000 kg. Transfer speeds of 5–15 m/min and loading arm traverse speeds of 10–30 m/min are calibrated to keep pace with fiber laser cutting cycles on the materials each model targets.

When Semi-Automatic Wins

The servo swing arm, by contrast, requires minimal floor modification and can be installed in workshops with ceiling heights or aisle widths that would preclude a gantry tower. The operator retains control of final positioning, which some quality systems require for traceability. It reduces the physical strain of handling heavy plates without committing to the infrastructure of full automation. For shops taking a first step into automated handling, it provides a lower-risk entry point with a shorter installation timeline.

The Material Factor

Herochu engineers both systems around the reality that sheet metal is not uniform. Carbon steel arrives with mill scale and oil. Stainless steel reflects and work-hardens. Aluminum scratches and often carries protective film. The loading system must adapt:

• Vacuum zone control: Independent cup zones deactivate when cutouts or nested parts pass beneath, maintaining vacuum integrity without pressure loss.

• Sheet separation: Mechanical micro-flexing, air injection at 0.6–0.7 MPa, and thickness verification prevent double-pick, the leading cause of loading-related crashes.

• Recipe-based parameters: Material-specific presets on the HMI adjust vacuum pressure, acceleration curves, and separation intensity for aluminum, stainless, and carbon steel without mechanical changeover.

Integration with Existing Equipment

A loading system that cannot communicate with the laser is a crane with extra steps. Herochu integrates through standard PLC interfaces, confirming bed status, cycle completion, and clamping readiness before initiating movement. The system accommodates the shuttle table or exchange platform configurations common to major fiber laser brands. For shops with mixed fleets, this compatibility protects the existing laser investment while adding automation incrementally.

A Decision Framework

The selection between semi-automatic and fully automated loading should follow a structured assessment:

1. Characterize the material flow: How many distinct sheet sizes and alloys per week? High mix favors flexibility; low mix favors automation depth.

2. Measure current exchange time: If manual exchange consumes less than ten minutes consistently, the ROI case for full automation is weaker.

3. Assess shift structure: A single-shift operation gains less from lights-out capability than a two-shift shop considering a third unmanned shift.

4. Map floor constraints: Ceiling height, aisle width, and crane paths determine which configurations are physically possible.

5. Define the growth trajectory: A system that cannot expand with the business becomes a bottleneck in three years.

Conclusion

The right Sheet Metal Loading System for Laser Cutting is the one that matches the production reality, not the marketing brochure. Herochu builds both semi-automatic and fully integrated solutions because the correct answer depends on the shop, not the catalog. Fabricators who evaluate their material flow, shift economics, and physical constraints before selecting a configuration will find that the system pays for itself in recovered productivity rather than promises.
