Industrial Pipe Storage Warehouse Rack for Aluminium Tube up to 8m

Aluminium tube storage demands a different approach from steel or copper handling. The material is lighter but more susceptible to surface damage, dimensional distortion under point loading, and cosmetic defects that render finished stock unsuitable for visible applications. Herochu’s industrial pipe storage warehouse rack addresses these specific vulnerabilities through engineering choices calibrated to aluminium’s mechanical characteristics.

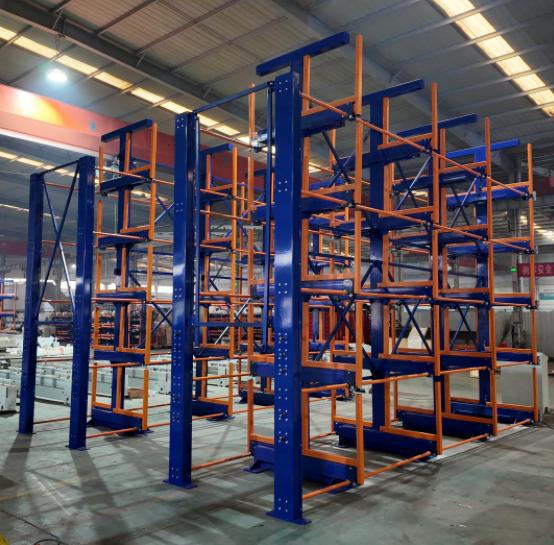

The system accommodates aluminium tube lengths up to eight meters, a dimension that exceeds standard six-meter racking and requires additional structural consideration. The upright spacing and arm configuration are adjusted to support the longer span without inducing mid-section sagging, a concern that becomes acute when thin-wall aluminium tube sits in storage for extended periods. Arms are positioned to distribute support across the tube length rather than concentrating load at two or three contact points.

Surface protection is integrated into the rack design rather than treated as an accessory. Cantilever arms are available with protective sleeves that prevent the abrasion and scratching that occur when aluminium contacts bare steel. The powder-coated frame itself provides a smooth, non-marring surface at all potential contact areas. For facilities storing polished or anodized aluminium tube, these details determine whether stock reaches the production floor in specification or requires rework.

The compartmentalized tier layout allows classification by alloy grade, temper, diameter, and wall thickness. Aluminium tube inventories often span a wide range of specifications within the same nominal diameter, and mixing these in floor stacks creates sorting errors that propagate through fabrication. Herochu’s independent tier design assigns each specification to a dedicated storage cell, with visual labeling available for rapid identification.

Load capacity for the eight-meter configuration is rated at 3,000 to 5,000 kg per tier depending on model and customization. While aluminium is lighter than steel per unit volume, bundled tube stock accumulates significant weight, and the rack structure must accommodate both the static load and the dynamic forces introduced during loading and retrieval. The dual-beam crossbar design distributes these forces across the upright structure, minimizing the stress concentrations that can lead to premature fatigue in single-connection alternatives.

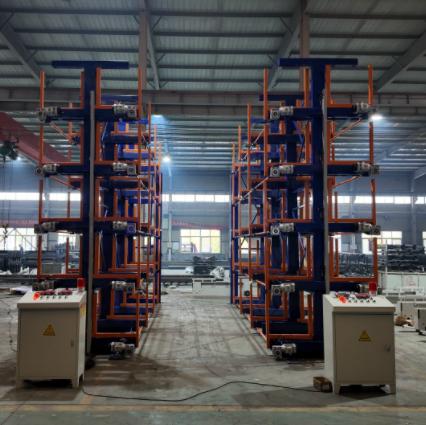

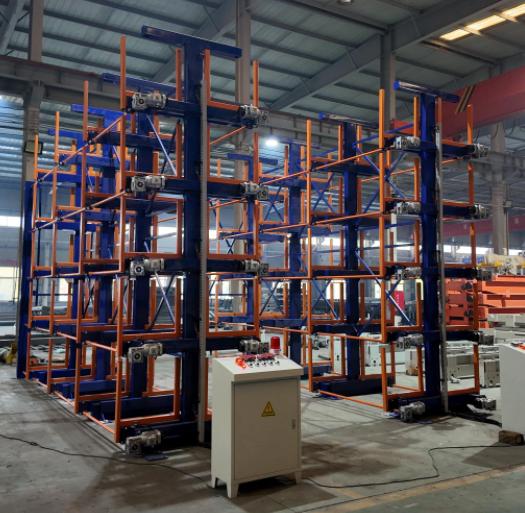

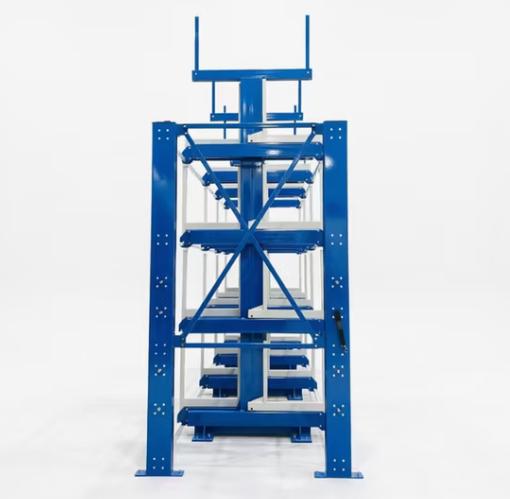

The roll-out mechanism, available in manual crank or electric drive configurations, extends the storage tier beyond the rack face for direct crane access. This is particularly valuable for eight-meter stock, where maneuvering long tube sections within a confined rack bay introduces both handling difficulty and damage risk. By bringing the tier to the operator rather than requiring the operator to reach into the structure, the roll-out design reduces the likelihood of impact damage during retrieval.

Herochu engineers each system against the customer’s specific aluminium inventory profile. Tube diameters, bundle configurations, and retrieval frequency all inform the final rack specification. A facility storing a narrow range of high-volume sizes receives a different configuration from one managing a broad inventory of low-volume specialty alloys. This project-based approach ensures that the installed system reflects actual operational patterns rather than a generalized approximation.

For aluminium distributors, fabricators, and manufacturers where eight-meter tube constitutes a primary stock category, Herochu’s industrial pipe storage rack provides a combination of length capacity, surface protection, and organizational structure that standard cantilever racking does not deliver. The system transforms aluminium storage from a handling liability into a controlled, accessible inventory asset.
