Heavy Duty Cantilever Racking for 6M Long Pipes

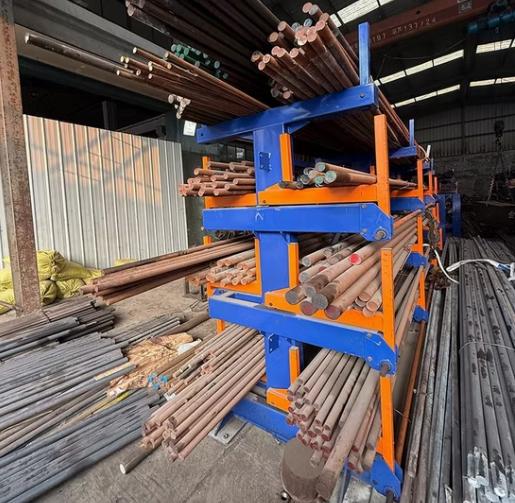

Storing six-meter pipe lengths on the warehouse floor creates a familiar set of problems: forklift operators spend excessive time navigating unstable stacks, surface finishes suffer from metal-on-metal contact, and valuable floor area disappears under disorganized inventory. Herochu addresses these inefficiencies through a purpose-engineered heavy duty cantilever racking system designed specifically for six-meter pipe stock.

The structural foundation of this system is built on Q235B high-strength carbon steel, a material selected for its tensile and yield characteristics under cyclical industrial loading. Each upright column and base plate is robot-welded and subjected to finite element stress analysis prior to production, ensuring that the rack performs predictably when fully loaded with dense pipe bundles. The dual-beam crossbar configuration distinguishes Herochu from single-connection alternatives: by distributing load across two parallel structural members at every arm junction, bending moments and stress concentrations are substantially reduced. This engineering choice translates directly into long-term reliability at rated capacities of 3,000 kg per tier on the HC-G6053 series, with custom configurations available for heavier demands.

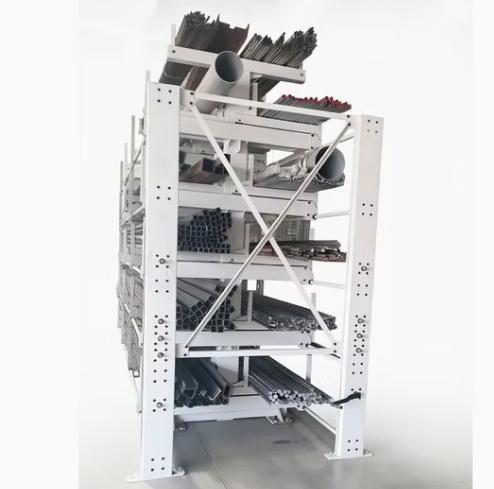

For six-meter pipes specifically, the rack geometry accommodates the material without overhang or unsupported mid-span sections that could induce bending. The compartmentalized tier design allows operators to segregate pipe stock by diameter, wall thickness, or alloy grade, eliminating the “dig and search” cycle that consumes productive hours in conventional floor storage. Each tier functions as an independent storage cell, meaning retrieval of a specific bundle does not require disturbing adjacent inventory.

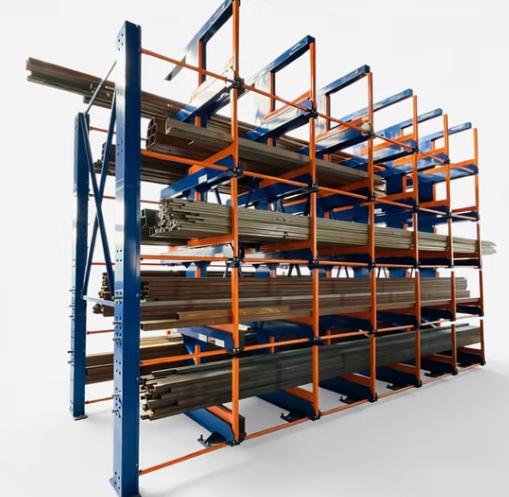

The roll-out mechanism represents a significant operational advantage for facilities handling six-meter stock. Arms extend outward under load, presenting the entire tier to the forklift or overhead crane without requiring the mast to enter the rack bay. Herochu’s telescopic kinematics employ sealed linear bearings and hardened chrome shafts, maintaining smooth extension and retraction across thousands of duty cycles. The arms carry a deliberate two-to-four degree upward tilt when loaded, a simple geometric safeguard that prevents pipe roll-off during handling.

Floor space recovery is measurable and substantial. Traditional cantilever layouts demand wide forklift turning aisles between rows. Because Herochu’s roll-out design delivers material to the aisle edge, adjacent rack rows can be positioned closer together, reclaiming floor area that would otherwise serve only as maneuvering space. Facilities implementing this configuration typically report significant gains in storage density without expanding their footprint.

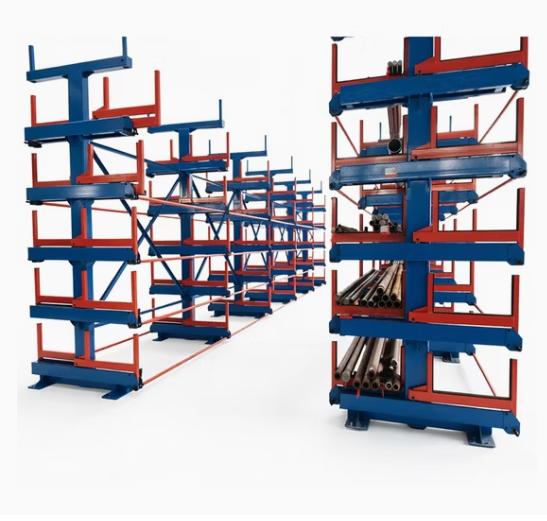

Herochu manufactures each system to order, accommodating pipe lengths from standard six-meter stock through custom dimensions. The HC-G6053S single-sided configuration suits wall-adjacent installations where aisle space is constrained, while the HC-G6053 double-sided variant doubles storage capacity within the same upright framework. Both models accept five storage tiers as standard, with layer counts adjustable to match ceiling height and access frequency.

For operations where six-meter pipe represents a primary inventory category, Herochu’s heavy duty cantilever system converts an organizational liability into a structured, accessible asset. The combination of verified structural engineering, roll-out accessibility, and space-efficient layout makes it a practical investment for steel service centers, pipe distributors, and fabrication facilities alike.
