Sheet Metal Handling Manipulator | Herochu Servo Swing Arm for Laser Cutting Lines

The modern sheet metal fabrication industry demands equipment that not only accelerates throughput but also ensures operator safety and material integrity. Herochu has engineered a solution that meets these rigorous requirements: the Sheet Metal Handling Manipulator. This advanced material handling system is designed specifically for industrial environments where heavy, oversized, or delicate sheets must be moved repeatedly between raw material storage and processing machinery such as laser cutters, punch presses, or shears. Unlike traditional manual handling or basic vacuum lifters, the Herochu manipulator integrates servo-driven motion, a cantilever arm geometry, and fail-safe pneumatic controls to deliver consistent, repeatable, and damage-free transfer of metal sheets.

Core Design Features of the Herochu Sheet Metal Handling Manipulator

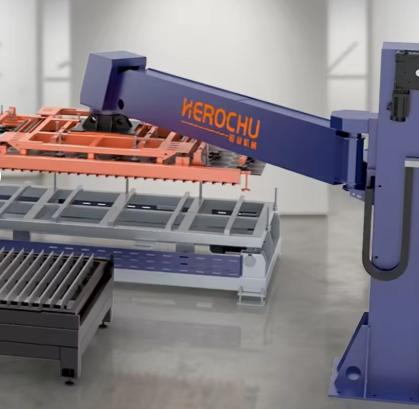

At the heart of this equipment is the servo swing arm mechanism. The servo motor provides precise control over angular acceleration and deceleration, eliminating the jerky movements commonly seen with hydraulic or purely pneumatic systems. This precision is critical when handling thin-gauge sheets that can easily warp or scratch. The cantilever arm design further enhances placement accuracy by allowing the suction cup tooling to approach the target surface from above with minimal lateral deviation. Operators can position sheets onto a laser cutting table with sub-millimeter repeatability, reducing setup time and scrap rates.

The manipulator offers 2800mm of horizontal travel, providing extensive coverage for large-scale operations. This means a single unit can serve a raw material platform on one side and a cutting machine table on the other, covering sheets up to 2.8 meters in width or length without repositioning the base column. The vertical column assembly is constructed from heavy-gauge steel with reinforced welds, ensuring stability even when lifting maximum payloads. Standardized mounting dimensions allow the Herochu manipulator to be integrated into existing production lines with minimal civil works or conveyor modifications.

Operational Workflow – From Raw Material to Cut Part

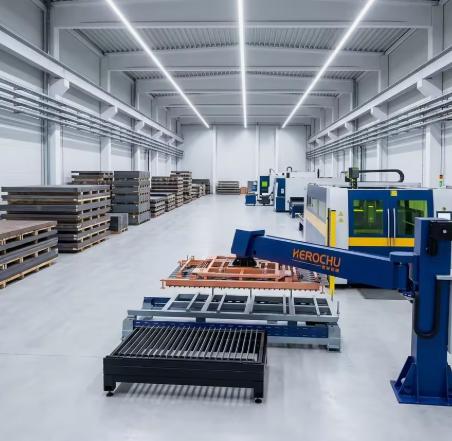

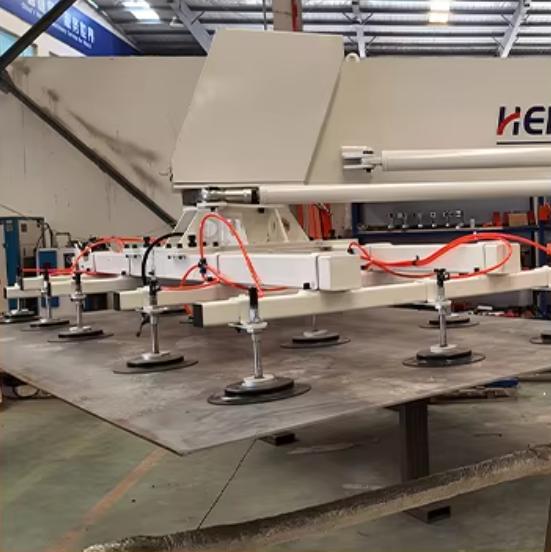

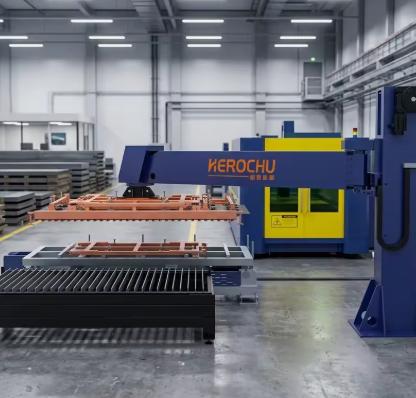

A typical cycle begins with the suction cup tooling extracting raw sheets from the material platform. The operator uses the PLC touch screen – labeled in both Chinese and English – to select automatic mode. The servo motor then rotates the cantilever arm toward the cutting equipment tabletop. Upon reaching the correct angular position, the manipulator lowers the suction cups, releases the vacuum, and deposits the sheet precisely on the cutting table’s alignment pins. After the laser cutting operation completes, the same arm can be used to remove finished panels, although many shops prefer manual unloading for small batches. For continuous production, the manipulator rotates back to the raw material platform to pick up the next sheet, completing the loading cycle in under 15 seconds.

For thinner sheets where two or more plates may stick together due to oil film or static charge, the sheet separation function is activated. This feature briefly pulses compressed air between the sheets or uses a mechanical tapper to break adhesion before lifting. This prevents double-sheet pickup, which could damage the laser nozzle or cause misfeeds.

Engineering for Reliability and Long Service Life

Herochu backs every Sheet Metal Handling Manipulator with a 5-year warranty, covering structural components, servo motors, and pneumatic systems. This confidence stems from conservative design margins: all gas pipes follow a red (orange) for output and blue for input color coding, with every connector labeled for quick identification during maintenance. The device operates on both manual and automatic modes. In manual mode, an operator can jog the arm through each axis using a pendant controller – useful for setup, troubleshooting, or handling odd-shaped workpieces.

The electrical control cabinet communicates with the touch screen via a standard network cable, simplifying diagnostics. PLC logic includes error logging for the last 100 events, allowing maintenance teams to trace intermittent faults. All required gas piping is rated for industrial service, with quick-disconnect fittings at wear points. Installation is guided by Herochu’s experienced technical engineers, who perform on-site calibration of the servo parameters and vacuum system to match the specific sheet sizes and weights of your production mix.

Safety Systems That Go Beyond Compliance

Safety is not an afterthought. The equipment is configured with power-off and air-off protection: if electrical power or compressed air supply is interrupted, the held material will not fall from the suction cups for at least five minutes. This is achieved through a combination of check valves and a vacuum reservoir tank. Even after the five-minute window, a controlled bleed valve releases vacuum gradually, preventing sudden drops. An emergency stop braking system immediately halts all servo motion and applies mechanical brakes to the swing arm and vertical lift axes.

Safety warning labels, maintenance labels, and operation instructions are affixed at key steps – on the column near the electrical cabinet, on the cantilever arm near pinch points, and beside the emergency stop buttons. These labels use universally recognized symbols alongside Chinese and English text, ensuring comprehension across diverse workforces. The emergency stop circuit is dual-channel, meeting Category 3 safety standards per ISO 13849.

Why Fabricators Choose the Herochu Sheet Metal Handling Manipulator

By eliminating manual feeding, the manipulator reduces labor costs and removes a major source of production variability. Worker fatigue no longer affects cycle times; the servo-driven arm delivers identical performance from the first sheet of the morning to the last sheet before shift change. For high-precision scenarios such as electronic component enclosures or medical device chassis, the reduction in handling-induced defects directly improves yield. The ability to handle both thick armor plate and thin stainless steel foil with the same tooling – simply by adjusting vacuum pressure via the PLC – provides flexibility that dedicated lifters cannot match.

In summary, the Herochu Sheet Metal Handling Manipulator is not merely a lifting aid; it is a fully integrated material handling solution that enhances production quality, efficiency, and safety while offering long-term reliability backed by a 5-year warranty. For any fabrication shop processing sheet metal for laser cutting, punching, or forming, this manipulator represents a measurable return on investment through reduced scrap, faster cycle times, and lower operator injury risk.
