Industrial Storage Organizer Steel Rack – Drawer Type Sheet Metal Storage

Organizing a metal fabrication workshop requires more than shelves and bins. Heavy sheets, plates, and blanks demand a storage system that can handle thousands of kilograms while keeping every piece accessible. Herochu developed the Industrial Storage Organizer Steel Rack as a drawer-type solution specifically for sheet metal and laser cutting machine storage. This system replaces messy floor piles with orderly, labeled, full-extension drawers.

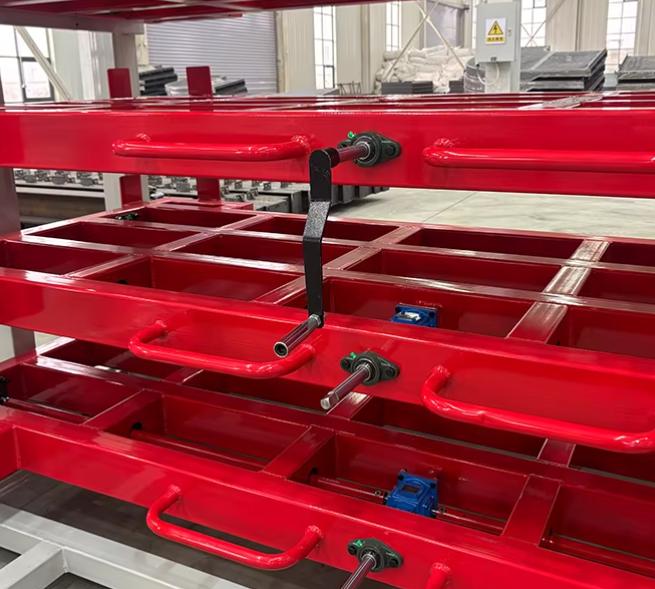

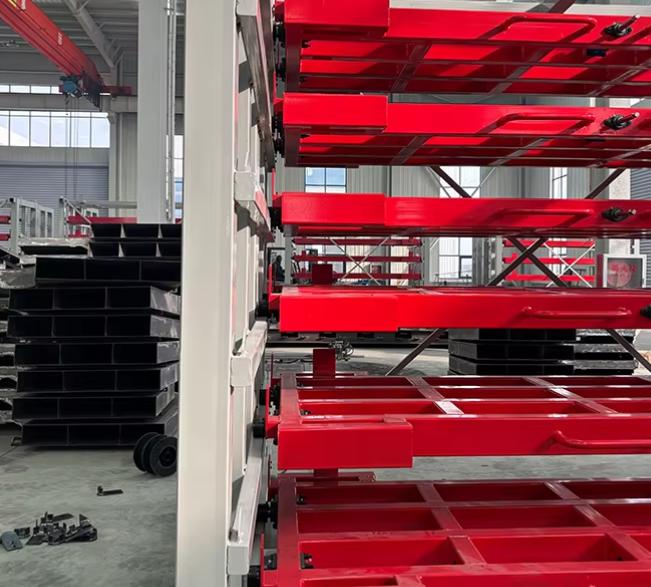

The drawer-type design is straightforward: each layer consists of a steel tray mounted on ball bearing rails. Pull the handle, and the tray glides out 100% of its length, exposing the entire stored sheet. An overhead crane or forklift with a magnet or suction lifter then lifts the sheet straight up. No need to slide sheets across each other. No risk of scratching or bending. This direct lifting preserves material quality and speeds retrieval.

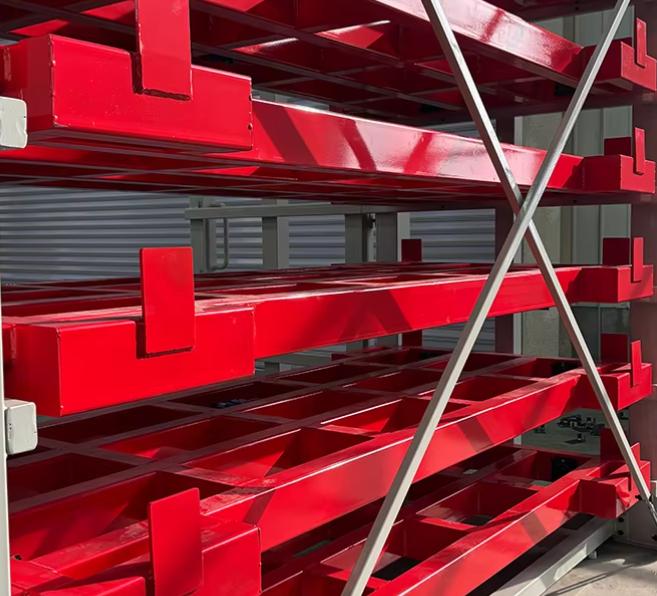

Herochu constructs these racks with industrial steel. Columns and crossbeams form a rigid skeleton. Precision welding ensures joints handle dynamic loads without fatigue. A powder coated finish protects against rust, chemicals, and abrasion. The coating also provides a smooth surface that resists metal dust accumulation—important for laser cutting environments where fine particles can interfere with equipment.

Load capacities set these racks apart. Each drawer tray supports up to 5000 kg. A six-layer rack handles 30 metric tons total. The ball bearing rails incorporate high-precision bearings and hardened raceways. Even under full load, the drawer pulls smoothly with minimal force. An anti-tip mechanism prevents the rack from tilting forward when multiple drawers are open. Foot rollover protection adds stability on uneven floors.

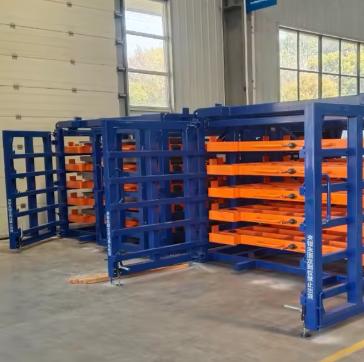

Versatility defines the Herochu industrial storage organizer. Choose from 4, 5, 6, 7, or 8 layers depending on available ceiling height. Layer lengths adjust from 2.5 to 6 meters in 0.5-meter increments. This flexibility accommodates common sheet sizes: 2500×1250 mm, 3000×1500 mm, 4000×2000 mm, 6000×2000 mm. For smaller blanks, optional dividers subdivide a drawer into multiple compartments.

Corrosion resistance is built in. The powder coated finish resists exposure to cutting fluids, humidity, and salt air. Herochu tests the coating for adhesion and hardness per ASTM standards. For shops storing stainless steel or aluminum, the coating prevents galvanic corrosion that occurs when dissimilar metals contact bare steel. An optional rubber matting on drawer trays provides additional scratch protection.

The drawer-type sheet metal storage rack excels in laser cutting machine environments. Laser operators need quick access to various gauges and alloys. With Herochu racks, each drawer holds one material type. Labels on drawer fronts show thickness, grade, and remaining quantity. The operator selects the needed drawer, pulls it open, and the crane lifts the sheet directly to the laser bed. This workflow cuts material handling time by half compared to floor storage.

Space savings are dramatic. Floor storage uses one square meter per square meter of sheet. A six-layer Herochu rack stores six square meters of sheet per square meter of floor, achieving 500% space efficiency. For a workshop with 500 square meters of sheet inventory, floor storage consumes 500 square meters. The same inventory in drawer-type racks occupies just 85 square meters (allowing for aisle access). The freed space can house additional laser cutters, press brakes, or assembly stations.

Installation guidelines from Herochu emphasize safety. The racks must anchor to a concrete slab with minimum compressive strength of 25 MPa. Anchoring bolts resist both shear and tension forces. For earthquake-prone regions, Herochu offers seismic clips that secure the rack to overhead structures. Leveling feet compensate for floor irregularities up to 10 mm per meter.

Maintenance keeps the system operating for decades. Ball bearing rails require lubrication every six months with a lithium-based grease. The powder coated surface cleans easily with mild detergent and water. Inspect welds annually for any signs of stress—though Herochu‘s welding procedures exceed industry standards. Replace any damaged rails immediately; they are modular and bolt on without welding.

Compared to vertical carousels or ASRS, the Herochu drawer-type rack offers mechanical simplicity and lower total cost of ownership. No motors, no sensors, no software updates. Just robust steel and precision bearings. This simplicity appeals to small and medium fabricators who cannot justify six-figure automated systems but still need high-density storage.

Human-centered details improve daily use. Optional sheet material auxiliary devices include side guides that keep sheets aligned during insertion, and cushion strips that protect edges from impact. Drawer handles are designed for gloved hands. Anti-slip treads on drawer fronts provide footholds for operators who need to reach into the back of deep drawers.

For warehouses storing sheet metal for laser cutting, the Herochu Industrial Storage Organizer Steel Rack is a proven solution. It combines drawer-type accessibility with heavy duty capacity, powder coated durability, and space-saving vertical design. To maximize benefits, order racks with layer lengths and counts matched to your typical sheet sizes and inventory levels. Then experience a workshop that is safer, more organized, and more productive.
