Smart Bar Stock Storage Towers Organize Long Materials in High-Capacity Drawers

The fundamental operational challenge with long material storage—bars, tubes, pipes, and profiles—lies in accessibility. Conventional racking systems bury desired materials behind or beneath other inventory, requiring sequential handling that consumes labor hours and risks material damage. Herochu smart bar stock storage towers solve this through high-capacity drawer architecture that organizes long materials in individually accessible positions, eliminating the digging, probing, and repositioning that defines traditional warehouse operations.

Drawer-Style Access Architecture

Each storage position operates on a fully extendable platform that slides out linearly on precision rails, similar to a heavy-duty drawer but engineered for 20-ton loads. When extended, the entire storage position becomes accessible from above with no overhanging structure or adjacent material interference. This design enables direct vertical lifting by overhead cranes or suction cup systems, eliminating manual handling entirely. The linear guide rail and chain drive transmission system powers extension and retraction at 12 meters per minute inlet/outlet speed.

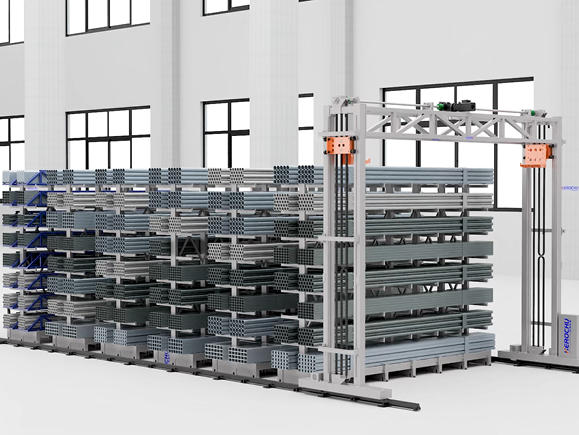

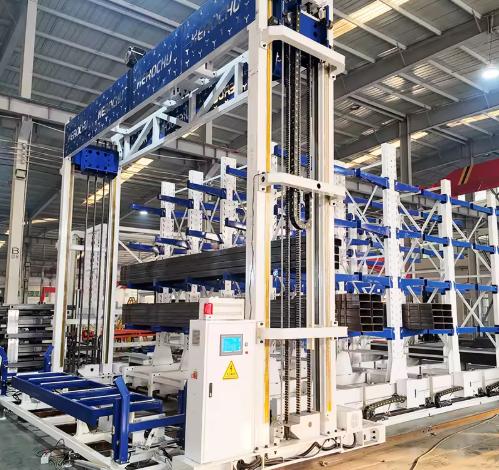

Vertical Tower Configuration for Density

Storage positions stack vertically in tower configurations, with multiple layers accessible through the same lifting mechanism. Standard specifications reach 6000mm in height, with customizable floor counts based on building clearances. Each grid measures 600mm by 500mm, providing stable support for individual bar or tube layers. The number of storage units per tower adapts to facility requirements—narrow towers for limited floor space or wide towers for high-volume inventory.

Independent Layer Safety Engineering

Every drawer-style storage position incorporates its own independent safety lock that engages automatically when the position is stationary. The lock releases only during authorized access cycles, preventing unintentional extension from vibration or operator error. An overall anti-toppling structure spans the full tower height, eliminating lateral movement or sway during retrieval operations even when drawers extend at different heights simultaneously. A standard safety fence completes the safety architecture, establishing clear boundaries for personnel.

Load Capacity and Structural Validation

Maximum load per drawer position reaches 20 tons, sufficient for steel bars, large-diameter seamless tubes, or dense alloy profiles. Sliding rails undergo tens of thousands of full-load cycle tests before deployment, with design specifications requiring zero deformation under rated loads. The electrostatic powder coating process delivers wear resistance against metal dust and abrasion from repeated loading cycles. The coating also resists acids and bases encountered in plating, pickling, or chemical processing environments. Projected service life exceeds 15 years under normal operating conditions.

Cutting Line Efficiency Gains

When deployed adjacent to laser or plasma cutting machines, material changeover time compresses from 20 minutes to under 3 minutes. The cutting machine operator initiates a retrieval command, the smart tower extends the required drawer, and an overhead crane or suction cup system lifts the material directly onto the cutting bed. This 85% reduction in non-cutting time directly increases equipment operational rates and throughput capacity.

Zero-Damage Material Handling Protocol

Traditional long material storage forces operators to slide bars across rack edges, hook straps around buried inventory, or reposition multiple materials to access desired pieces. Each of these actions risks surface damage, end deformation, or worker injury. Herochu smart towers eliminate these risks through fully extended drawer positions with unobstructed top access. Cranes or suction cups lift straight up from the extended position, maintaining material integrity and worker safety.

Intelligent Control and Inventory Tracking

The integrated control system supports automated storage and retrieval with precise material positioning. Operators retrieve materials by entering specifications or part numbers—the system locates the required drawer, extends it to the access position, and confirms readiness for lifting. Real-time inventory monitoring enables data visualization management, showing operators exactly which materials occupy each drawer. Label and color code management options provide visual verification for quality control procedures.

Efficiency Metrics and Labor Impact

Storage and retrieval efficiency improves by over 60% compared to traditional warehouse layouts. Facilities report labor cost reductions directly proportional to time saved on material location, extraction, and repositioning. The system requires no specialized technical personnel—ordinary employees become proficient after basic training. Integration with enterprise production systems enables seamless connection between material storage and production processes.

Industry Application Specializations

Profile processing facilities store various pipe types and profiles paired with cutting machines for automated retrieval sequences. Mechanical manufacturing operations centrally store heavy bars and component profiles under intelligent control. Building materials warehouses organize construction profiles including steel pipes and aluminum extrusions while saving floor space through vertical density. Military, electronics, and petrochemical sectors store precision and specialized profiles with intelligent moisture and damage protection.

Inventory Optimization Through FIFO

The drawer architecture naturally supports first-in, first-out material rotation when configured with appropriate assignment protocols. This prevents pipes and bars from rusting or becoming obsolete due to prolonged storage in inaccessible positions. Optimized inventory turnover reduces stockpile congestion and waste, lowering material carrying costs while ensuring fresh stock reaches production lines.
