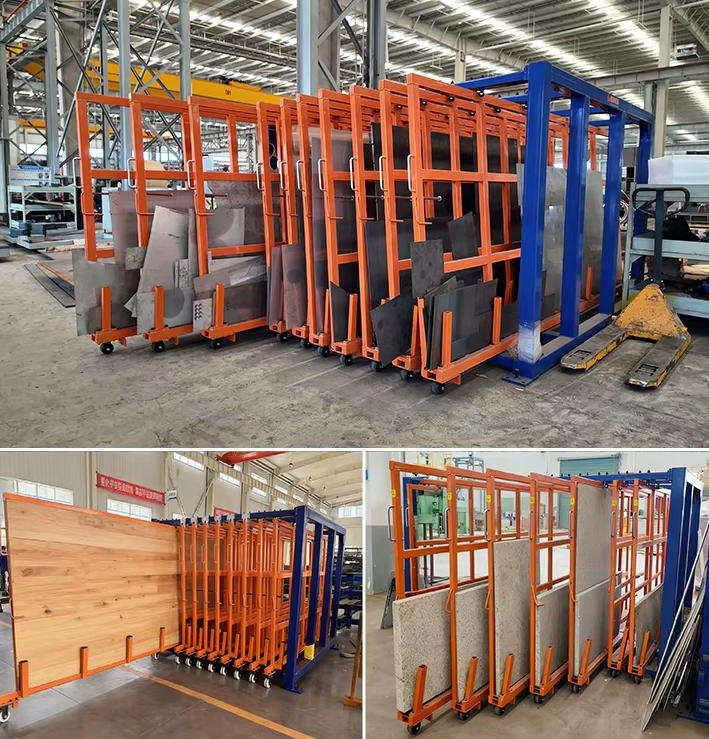

Laser Cutter Vertical Sheet Metal Storage Racks

Laser cutting machines demand rapid material changeover. Pausing a fiber laser to hunt for the right sheet thickness wastes beam-on time and reduces throughput. Herochu engineered the Laser Cutter Vertical Sheet Metal Storage Racks specifically to feed high-speed lasers without interruption. These racks combine vertical density with full extension drawers, allowing forklifts or overhead cranes to load and unload directly above the storage footprint.

The concept is straightforward: instead of storing metal sheets flat on the floor or in shallow cantilever racks, vertical racks stack drawers in tiers. Each drawer tray slides out 100% on load-bearing ball bearing rails. A laser cutting operator can retrieve a 6-meter sheet from the top drawer while the next sheet waits in the drawer below. No reshuffling piles. No crane delays.

Herochu designs these racks with column-and-beam frames welded from carbon steel. The skeletal structure provides stability without excessive weight. Crossbeams connect columns at multiple heights, supporting each drawer tray independently. This layered design distributes loads directly to the floor, preventing rack twist or sway. Powder coating adds corrosion resistance, essential in laser cutting environments where metal dust and coolant mist settle on every surface.

Capacity is a core feature. Each drawer tray supports up to 5000 kg, and a full rack with six layers handles 30 metric tons total. The drawer rails incorporate high-precision ball bearings that maintain smooth operation even under full load. A rail stop mechanism prevents accidental over-extension, while the anti-tip safety system—including foot rollover protection—keeps the rack stable during loading.

For laser cutting shops, material organization directly impacts efficiency. Herochu vertical racks come with adjustable layer spacing. Standard layer lengths of 2.5, 3, 4, 5, or 6 meters match common sheet sizes (e.g., 2500×1250 mm, 3000×1500 mm, 6000×2000 mm). Shops working with multiple gauges can set different drawer heights: thin sheets stack in shallow drawers, thick plates in deeper ones. Optional sheet material auxiliary devices—such as edge guides and protective strips—prevent scratches during insertion and extraction.

Why choose vertical over horizontal storage? Horizontal racks require wide aisles for forklift turning. Vertical racks reduce aisle width because the crane or forklift approaches from the front or above. Herochu racks occupy as little as 1.5 meters of depth, making them suitable for narrow-aisle warehouses. The six-layer design triples or quadruples storage density compared to floor stacking. A laser cutting department that used to spread sheets across 500 square meters can consolidate into 150 square meters, freeing space for additional laser cutters or finishing equipment.

Installation is straightforward. Herochu provides anchoring bolts and leveling shims. The racks ship as knocked-down components or fully assembled, depending on site access. Floor requirements include a flat, load-bearing concrete slab. Overhead clearance must accommodate crane hook height plus sheet thickness. Once installed, the racks require minimal maintenance: periodic lubrication of ball bearing rails and visual inspection of powder coated surfaces.

Durability tests show that Herochu vertical racks withstand years of daily forklift loading. The industrial steel construction resists impact from sheet edges. The powder coated finish doesn’t chip or flake even when scraped. Corrosion protection extends rack life in humid or chemical-laden environments.

Laser cutter vertical storage also improves inventory management. Each drawer can be labeled with material grade, thickness, and supplier. Operators see exactly what’s available without climbing or unstacking. This visibility reduces ordering errors and prevents duplicate purchases. Some shops integrate these racks with laser nesting software: the system knows which drawer holds which sheet and directs the operator to the correct tray.

Compared to automated storage and retrieval systems (ASRS), Herochu vertical racks cost a fraction and require no power or programming. They offer mechanical reliability—no conveyor belts, no sensors, no control panels to fail. For small to medium laser cutting job shops, this balance of price and performance is ideal.

Safety features deserve emphasis. The full extension rails lock when fully opened, preventing sudden retraction. The anti-tip base stops the entire rack from tipping forward if multiple drawers are extended simultaneously. Herochu also offers optional drawer interlocks that allow only one drawer open at a time, though many shops prefer unlimited access for crane convenience.

In practice, a laser cutting operator using Herochu Laser Cutter Vertical Sheet Metal Storage Racks reduces material fetch time from minutes to seconds. The crane hooks onto the sheet from above, lifts, and moves directly to the laser bed. No repositioning. No edge damage. The rack pays for itself through labor savings, space recovery, and reduced material waste.

For any fabrication shop running laser cutters on mild steel, stainless, or aluminum, these vertical racks are a practical investment. Herochu provides customization for drawer tray surfaces, handle types, and safety options. To maximize ROI, order racks with layer counts and lengths matched to your most common sheet sizes. Then watch your laser cutting productivity rise.
