Floor space constraints represent a persistent challenge for metal processing facilities storing long materials. The Herochu Automated Vertical Bar and Tube Storage system multiplies storage density by utilizing vertical height rather than horizontal spread, organizing heavy pipes, seamless tubes, alloy bars, and structural profiles in high-capacity tower configurations that transform warehouse efficiency.

Vertical Architecture for Space Optimization

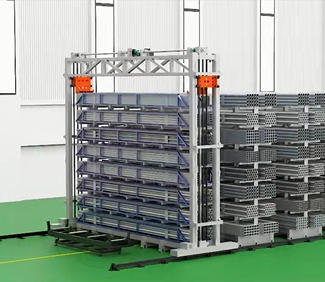

The system operates on a vertical lifting principle, with linear guide rails guiding chain-driven carriages that access storage positions arranged in stacked layers. Standard specifications reach 6000mm in height, with customizable floor counts based on building clearances and material handling equipment capabilities. Each storage position measures 600mm by 500mm, providing stable support for individual tube or bar layers without nesting that could complicate retrieval.

Heavy-Duty Load Engineering

Maximum load per storage position reaches 20 tons, supporting steel pipes, large-diameter tubes, solid bars, and dense alloy profiles. Sliding rails undergo tens of thousands of full-load cycle tests before deployment, with design specifications requiring zero deformation under rated loads. The electrostatic powder coating finish resists wear from metal-to-metal contact and withstands acidic or basic conditions present in plating, pickling, or chemical processing environments.

Multi-Layer Safety Architecture

Each vertical layer incorporates independent safety locks that engage when the storage position is stationary and release only during authorized access cycles. The overall anti-toppling structure has been engineered for high-height configurations, preventing lateral movement or sway during retrieval operations even when uneven loads are present. A standard safety fence surrounds the operational perimeter, establishing clear boundaries between automated equipment movement and personnel work zones.

Cutting Line Proximity Deployment

The vertical tower design requires minimal floor footprint, allowing deployment immediately adjacent to laser cutting machines, plasma cutters, or sawing stations. Material changeover time compresses from 20 minutes to under 3 minutes, directly increasing equipment operational rates. For facilities with multiple cutting machines, the vertical storage tower can be positioned centrally to serve several stations through coordinated retrieval sequences.

Zero-Damage Vertical Access

Fully extendable storage positions create unobstructed top access for overhead cranes or suction cup lifting systems. This design eliminates the need for operators to probe into racking positions, hook straps around buried materials, or manually reposition tubes for crane attachment. Direct vertical lifting prevents material collision damage, maintains surface finish integrity, and eliminates workplace injury risks from heavy bar handling.

Intelligent Management and Control Systems

The integrated control system supports automated storage and retrieval with precise material positioning. Real-time inventory monitoring enables data visualization management, showing operators exactly which materials occupy each storage position. Label and color code management options support visual verification procedures for quality-controlled environments. Storage and retrieval efficiency improves by over 60% compared to traditional horizontal racking systems, with corresponding labor cost reductions.

Enterprise System Integration

The Herochu vertical storage system integrates with existing enterprise production systems, creating seamless connection between material storage and downstream processing operations. Operators retrieve materials by entering part numbers or material specifications—the system locates the required bar or tube, extends the storage position, and presents the material for lifting access. Operation requires no specialized technical personnel; standard training enables ordinary employees to operate the system effectively.

First-In, First-Out Inventory Management

Vertical tower architecture naturally supports first-in, first-out material rotation when configured with appropriate layer assignment protocols. This prevents pipes and bars from rusting or becoming obsolete due to prolonged storage at inaccessible positions. Optimized inventory turnover reduces stockpile congestion and waste, lowering overall material carrying costs while ensuring fresh stock reaches production lines.

Application Across Heavy Industries

Laser cutting operations store various tube types and profiles paired with cutting machines for automated retrieval sequences. Mechanical manufacturing facilities centrally store heavy bars and component profiles under intelligent control. Building materials warehouses organize construction profiles including steel pipes and aluminum extrusions while saving valuable floor space. Military and electronics sectors store precision profiles with intelligent moisture protection. Petrochemical operations organize specialty alloys and corrosion-resistant materials requiring segregation from standard inventory.

Customization and Implementation Support

Herochu provides free 3D layout plans customized to facility dimensions, load requirements, and layer configurations. Customizable options include storage position size, load capacity per layer, number of vertical floors, and access point locations. The electrostatic powder coating finish can be specified in multiple colors for visual zone identification or inventory categorization.
