Intelligent Gantry Loading Manipulator for Laser Cutting & CNC

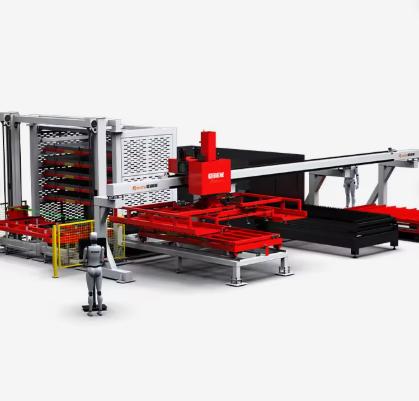

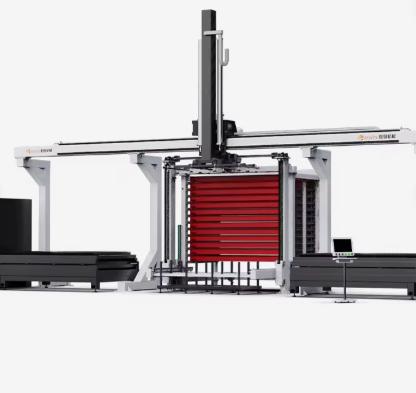

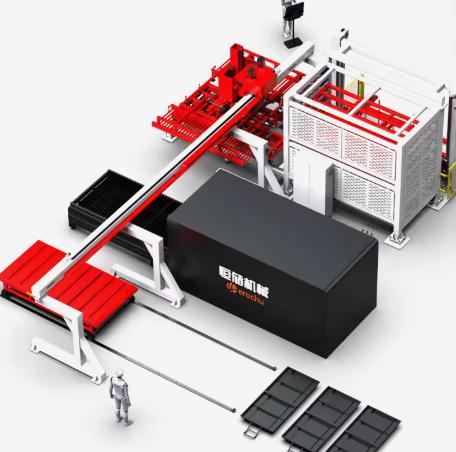

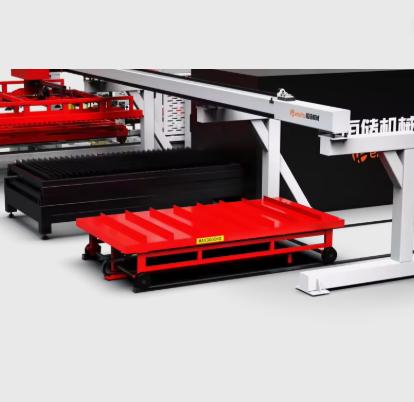

Modern sheet metal fabrication demands precision, uninterrupted workflow, and seamless integration between storage, handling, and cutting operations. The Herochu Intelligent Gantry Loading Manipulator for Laser Cutting & CNC represents a systematic response to these requirements, engineered as a complete automatic production unit rather than a mere accessory. This system combines a three-dimensional storage warehouse, a bilateral gantry truss, a composite truss manipulator for loading and unloading, a finished material truck, and a PLC control architecture that directly communicates with laser cutting equipment.

At the core of the Herochu design philosophy lies the elimination of production bottlenecks caused by manual material handling. Conventional setups require operators to fetch raw sheets, position them onto the cutting bed, remove finished parts, and manage remnant materials – tasks that introduce variability, fatigue-related errors, and safety risks. The intelligent gantry loading manipulator addresses each of these pain points through a fully coordinated electromechanical system. The three-dimensional storage warehouse accommodates up to 13 layers of sheet material, with each layer capable of bearing 3 to 5 metric tons depending on the configuration. Standard footprint options include 3×1.5 meters, 4×1.5 meters, and 4×2 meters, with custom dimensions available upon request.

The bilateral gantry truss structure provides the mechanical backbone for high-speed, high-repeatability movements. Unlike single-beam designs that can suffer from torsional flex under heavy loads, the Herochu bilateral configuration distributes forces symmetrically, maintaining positioning accuracy even when handling maximum payloads ranging from 300 kg to 3000 kg. This rigidity directly translates to cleaner edge quality on laser-cut parts, as any vibration or misalignment during sheet placement would otherwise propagate into the cutting process. The manipulator itself employs vacuum suction cups sourced from established component manufacturers, ensuring reliable grip without surface marring. Each suction cup operates independently with its own control switch, allowing operators to deactivate specific cups through the controller when handling pre-cut or irregularly shaped sheets.

Integration with CNC and laser cutting systems occurs through the PLC control unit, which manages not only the manipulator’s motion but also coordinates with the laser machine’s operational status. The system supports automatic feeding to two separate laser machines, with users able to toggle between automatic and manual feeding modes directly from a touchscreen interface located near each laser. This flexibility proves valuable during maintenance, tool changes, or when processing specialty materials that require operator intervention. The intelligent gantry loading manipulator also performs automatic sheet separation – a critical function for materials with protective films or residual adhesion from stacking. By controlling the lifting speed and vacuum activation sequence, the Herochu system prevents double-sheet pickup, reducing waste and preventing laser head collisions caused by unexpected stack feeding.

From a productivity standpoint, the 24/7 reliable automatic handling capability means production can continue across shift changes, lunch breaks, and off-hours without degradation in throughput. The high-speed variable frequency motors driving the manipulator achieve rapid traverse speeds while maintaining repeated positioning accuracy within tight tolerances. For applications requiring directional changes, the pneumatic rotating structure can pivot plates by 90 degrees, accommodating both transverse and longitudinal feeding requirements without manual reorientation. This feature is particularly valuable when the same laser cutting machine processes parts from sheet orientations that vary by job type.

Cost reduction manifests in three measurable areas: labor, material utilization, and machine utilization. By automating the loading and unloading cycle, a single operator can oversee multiple production units instead of being tethered to a single machine. The precise placement reduces scrap caused by misaligned cuts near sheet edges. And because the intelligent gantry loading manipulator keeps the laser cutter fed continuously, capital equipment amortizes faster through higher duty cycles. Maintenance requirements remain low due to the simple mechanical architecture – the gantry design uses linear guides and rack-and-pinion drives that are accessible for inspection and lubrication. Replacement parts for the vacuum system and motors are standard industrial components, avoiding proprietary pricing traps.

For fabrication shops seeking to upgrade from manual or semi-automatic feeding methods, the Herochu Intelligent Gantry Loading Manipulator for Laser Cutting & CNC delivers a documented path to higher output with consistent quality. The system records production data through the PLC, enabling managers to analyze cycle times, material consumption, and equipment availability. Debugging and parameter adjustments occur entirely through the touchscreen interface, eliminating the need for external programming devices. Whether processing mild steel, stainless steel, aluminum, or coated sheets within the load capacity range, this manipulator adapts through adjustable suction cup positions and programmable vacuum levels. By integrating storage, handling, and cutting into a unified automated workflow, Herochu provides a foundation for lights-out manufacturing where the laser cutter operates unattended through entire nights and weekends.
