Automatic Gantry Handling Manipulator

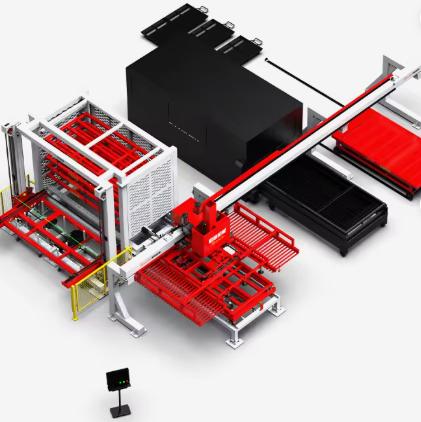

The transition from isolated machine operation to fully automated production cells requires material handling equipment that not only moves sheets but also intelligently manages inventory, prioritizes jobs, and responds to real-time machine status. The Herochu Automatic Gantry Handling Manipulator has been developed specifically for this role, operating as the central logistics node in a sheet metal fabrication environment. This system integrates a double-tower automatic loading and unloading warehouse, a bilateral gantry structure, and a PLC-controlled manipulator to execute a complete sequence of tasks: centralized three-dimensional storage, automatic issuance, automatic reclaiming, automatic sheet separation, automatic feeding, and automatic blanking. The result is an end-to-end automated production process requiring minimal human intervention.

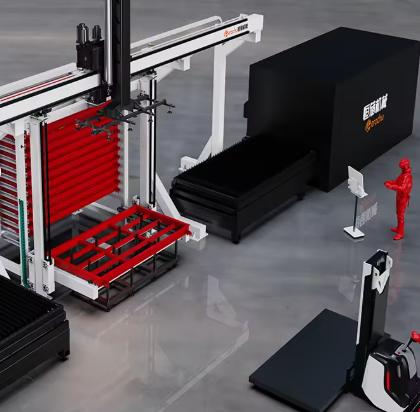

The double-tower warehouse configuration represents a significant advancement over single-tower or flat-storage designs. Two independent storage towers operate in parallel, allowing the automatic gantry handling manipulator to retrieve sheets from one tower while the other tower undergoes reloading by forklift or overhead crane. This overlapping operation eliminates downtime associated with material replenishment. Each tower accommodates 8 to 13 layers, with per-layer load capacities of 3 or 5 tons depending on the specification ordered. The warehouse footprint can be customized to match available floor space, with standard base dimensions of 3×1.5 meters, 4×1.5 meters, or 4×2 meters per tower. Sheet sizes are not limited to the base dimensions – the manipulator’s reach and suction cup arrangement can handle plates that extend slightly beyond the storage footprint through programmed overhang management.

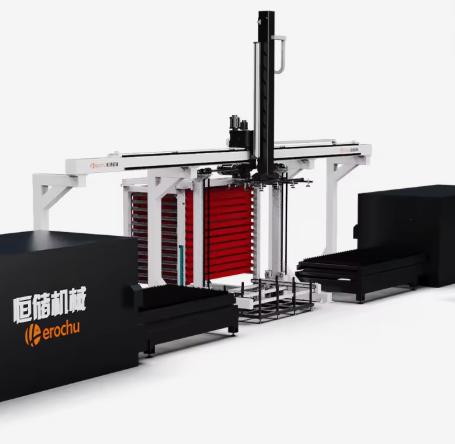

What distinguishes the Herochu automatic gantry handling manipulator from simpler pick-and-place devices is its ability to perform full one-to-two loading and unloading operations. The “one-to-two” designation means that a single manipulator system can alternately feed two separate laser cutting machines or CNC punch presses. Through the PLC control interface, users assign priority levels to each machine. When one machine completes its cutting cycle, the manipulator automatically unloads the finished skeleton and remnant, then loads the next raw sheet from the warehouse. Meanwhile, the second machine continues cutting uninterrupted until its own cycle finishes, at which point the manipulator switches service. This dynamic scheduling maximizes the utilization of both downstream machines without requiring a dedicated loader for each.

Automatic sheet separation deserves particular attention because it addresses a common failure point in automated handling. Sheets stored in stacks often develop adhesion due to residual oil, static charge, or protective films. The Herochu system implements a controlled lifting sequence: vacuum suction cups engage the top sheet while a pneumatic edge-lifting device introduces an air wedge to break adhesion. The manipulator then raises the sheet by a programmed distance while sensors verify that only one sheet has been lifted. If double-sheet pickup is detected, the system automatically returns the extra sheet to the stack and retries with modified vacuum parameters. This closed-loop control reduces waste and prevents the dangerous scenario of feeding two stacked sheets into a laser cutter, which can cause collisions, lens damage, and fire hazards.

The automatic blanking feature completes the production cycle by removing finished parts and skeleton remnants from the cutting bed. The system uses a separate unloading manipulator or the same gantry head equipped with auxiliary grippers, depending on the configuration. Finished parts are deposited into a double-layer finished material truck, which organizes parts by job or material type. The double-layer design effectively doubles the storage capacity within the same floor footprint, reducing the frequency of truck changes. Skeleton remnants – the scrap grid left after part nesting – are either stacked on a separate pallet or fragmented through a integrated breaker system when specified. By handling both raw material input and finished material output, the automatic gantry handling manipulator turns the laser cutting machine into a nearly self-contained production cell.

Operators interact with the system through a touchscreen panel that provides visual status of warehouse inventory, machine schedules, and manipulator position. All settings – including suction cup activation patterns, acceleration profiles, and positioning tolerances – are adjustable without writing code. The system supports two operational modes: fully automatic, where the manipulator sequences jobs based on a production queue; and manual override, where operators use a handheld pendant to control movement for setup or maintenance. A critical safety feature is the integration of light curtains and zone scanners that slow or stop manipulator motion when personnel enter defined areas, while allowing the laser cutter to continue operating.

From an economic perspective, the Herochu Automatic Gantry Handling Manipulator reduces labor costs by eliminating the dedicated material handler role. In many fabrication shops, one person spends the majority of their shift walking between the storage rack, the laser cutter, and the finished goods area – a pattern that involves substantial non-productive travel time. By automating these movements, the same person can supervise multiple production cells or perform higher-value tasks such as quality inspection and nesting optimization. Additionally, the system’s precise sheet placement reduces the safety margins that operators typically add when programming cuts around unevenly loaded sheets, improving material yield by 3 to 7 percent depending on part geometry.

Maintenance of the automatic gantry handling manipulator follows a straightforward schedule based on running hours. The gantry rails require periodic cleaning and lubrication, the vacuum pump filter needs replacement at specified intervals, and the suction cup rubbers should be inspected for wear. Herochu provides a diagnostic interface within the PLC that logs error conditions and suggests corrective actions, reducing troubleshooting time. Because the system uses industrial-standard pneumatic components and variable frequency drives, replacement parts are available from multiple suppliers, avoiding extended downtime caused by proprietary part shortages.

For manufacturers processing sheet metal in volumes that exceed manual handling capacity but do not justify a full robotic workcell, the Herochu Automatic Gantry Handling Manipulator offers a cost-effective middle ground. It delivers the reliability of dedicated automation with the flexibility to change job parameters through software rather than hardware reconfiguration. As production demands grow, additional towers or finished material trucks can be integrated into the existing control architecture, scaling the system without obsolescence.
