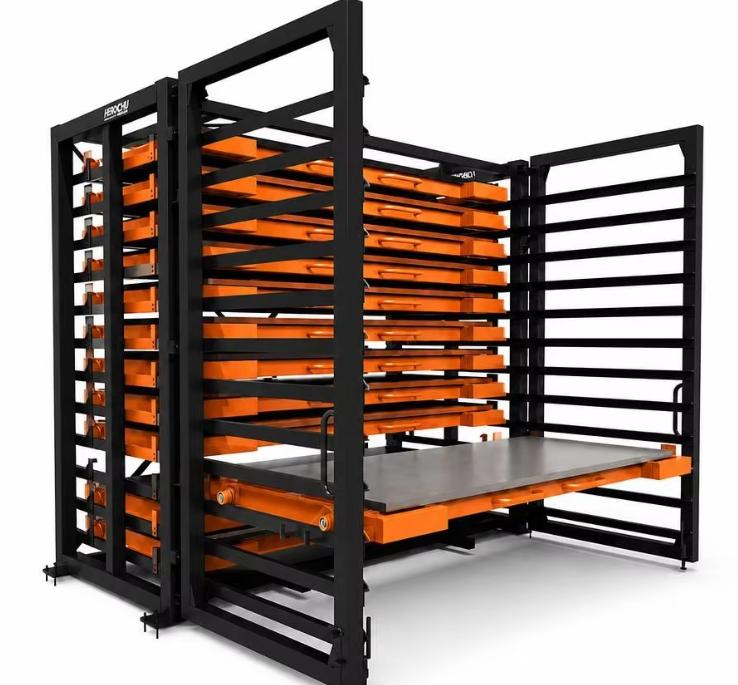

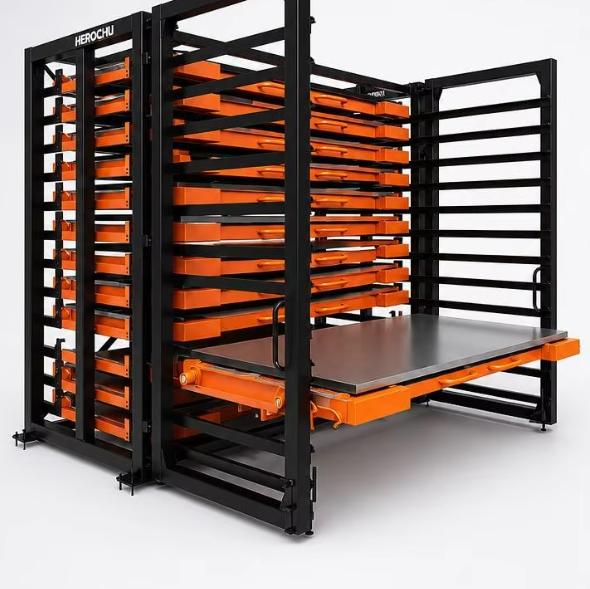

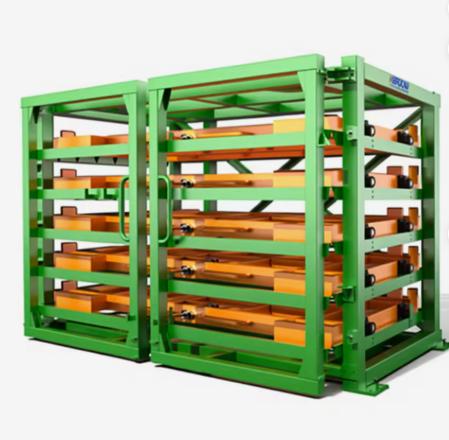

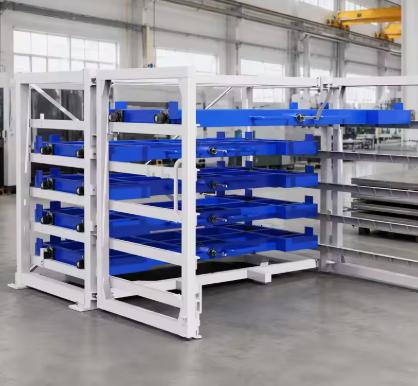

Motorized Roll-Out Sheet Storage Rack 5 Ton Per Layer

High-capacity sheet metal storage demands more than brute structural strength. When a single drawer carries five metric tons of steel plate, the engineering challenges multiply: the extension mechanism must move that mass smoothly and safely, the frame must resist the overturning forces generated at full extension, and the control system must position the drawer precisely so crane operators can pick plates without lateral drift or sudden stops. The Herochu Motorized Roll-Out Sheet Storage Rack with a 5 ton per layer capacity addresses each of these demands through integrated mechanical, structural, and control engineering.

The Five-Ton Extension Challenge

Storing 5,000 kg of plate steel on a single drawer level sounds straightforward until the physics of extension are considered. As the drawer rolls forward, the center of gravity of that five-ton load moves beyond the rack’s base footprint. The frame must counteract the resulting overturning moment through its base anchoring, column rigidity, and the structural tie between the extended rail and the fixed rack body. Herochu addresses this with a dual-beam crossbar design that locks the columns into a rigid rectangular geometry, distributing extension forces through the full frame structure rather than concentrating them at the rail mounts.

The guide rails themselves are induction-hardened steel sections paired with sealed roller bearings rated for sustained heavy-load cycling. The bearing arrangement is specified so that contact stress remains well below the material fatigue limit, even when the drawer operates at full rated load day after day. This engineering margin is what separates a rack that performs for five years from one that develops rail play, uneven extension, and progressive bearing failure within months.

Q235B Steel Frame and Dual-Beam Crossbar Construction

The structural core of the 5-ton roll-out rack is a Q235B high-strength steel frame. Q235B is specified for its yield strength, weldability, and toughness in workshop environments where temperatures fluctuate and impact loads from crane placement are routine. The uprights and cross-members are formed into welded box-beam sections—hollow rectangular profiles that resist bending and torsion far more effectively than open-channel or angle-section alternatives.

At each tier, a dual-beam crossbar ties the front and rear columns together. This dual-beam configuration serves two functions: it maintains the column spacing under load, preventing the rails from pinching or spreading as drawers extend, and it creates a load path that transfers extension forces back into the frame base. The result is a structure that remains dimensionally stable whether the drawers are fully retracted or fully extended.

Smooth Sliding Rails Under Full Load

The roll-out mechanism relies on heavy-duty rollers and guide rails engineered for full-load operation. Each drawer glides out on paired rails, with roller clusters positioned to distribute the load evenly along the rail length. The system is designed so that extension remains smooth and controlled whether the drawer holds 500 kg or 5,000 kg—no jerking, no binding, no progressive resistance as the drawer reaches full extension.

When fully extended, the drawer locks into a stable position that allows operators to load or pick plates using overhead cranes, vacuum lifters, or forklifts without the drawer shifting under the load transfer. This stability is critical for safe material handling. A drawer that drifts or rocks when a crane lifts a plate off it creates a serious hazard for nearby personnel and risks dropping the material.

Single-Side Operation and Floor Space Efficiency

Because every level pulls out for front access, the rack requires only one working aisle rather than access from both sides. This single-side operation can reduce the storage footprint by up to 50 percent compared to traditional double-side access racks. In workshops where floor space is at a premium, this density gain translates directly into additional production area, more equipment placement flexibility, or additional rack capacity within the same building envelope.

The working aisle width is determined by the handling equipment specified—a vacuum lifter on a light crane needs less aisle than a forklift—and Herochu configures the rack layout to match the intended material handling method. The roll-out drawers present materials at a comfortable working height, reducing the bending, stretching, and heavy lifting that contribute to operator fatigue and musculoskeletal injuries over a shift.

Technical Specifications

The 5-ton per layer model is represented by the HC-B6015E-65 configuration, designed for plates up to 6000 × 1500 mm across five customizable layers. Drawer traveling speed is 2.28 m/min under the frequency-conversion drive system, which provides soft-start and soft-stop acceleration to prevent plate slippage. Clear space between levels is standardized at 120 mm, adjustable for specific plate thickness ranges. Material discharge is electric-assisted throughout, with no manual pushing or pulling required to extend or retract a loaded drawer.

Ergonomic and Organizational Benefits

The roll-out drawer design transforms how operators interact with stored materials. Instead of reaching deep into a rack or climbing structures to access rear-stored plates, workers pull out the relevant drawer and pick directly from the front at a natural working height. This ergonomic improvement reduces fatigue, accelerates picking speed, and lowers the risk of strain injuries that plague traditional flat storage and deep-reach cantilever racks.

Multiple roll-out levels keep different materials separated and clearly visible. Grade, thickness, and heat number can be organized by level, making identification immediate and keeping the workshop tidy. When a specific plate is needed for a production order, the operator extends the correct drawer, picks the plate, and retracts the drawer—all within a fraction of the time required to locate and extract material from a stacked pile.

Customizable Configuration for Real Workflows

Herochu builds each roll-out storage rack to match the specific material dimensions, load requirements, and site conditions of the customer. Layer count, drawer dimensions, rack height, load rating per level, surface treatment, and control integration are all configurable. For facilities handling mixed material types, drawers can be subdivided with removable dividers to segregate grades within a single level. For operations integrated with automated cutting lines, the control system can be specified with PLC frequency conversion, wireless remote operation, and WMS connectivity for real-time inventory tracking.

The Herochu Motorized Roll-Out Sheet Storage Rack with 5 ton per layer capacity is engineered for facilities that refuse to compromise between storage density, load capacity, and operator safety. Every component—from the Q235B frame to the induction-hardened rails to the frequency-conversion drive—reflects a design philosophy built for sustained heavy-load performance in the real conditions of industrial production.
