Gantry Loading Systems for Fiber Laser and Cutting Lines

The high cutting speeds and exceptional precision of modern fiber laser cutting machines demand equally responsive and reliable material handling. Gantry loading system for Fiber laser and cutting lines are specifically designed to meet this challenge, serving as the perfect symbiotic partner to high-throughput lasers. These systems manage the entire material logistics process, ensuring that the laser’s speed is never compromised by slow manual feeding. They are the backbone of a fully automated fabrication line, capable of supporting everything from thin, delicate sheets to thick plates, making them indispensable for metal service centers and high-volume manufacturers.

Gantry Loading Systems for Fiber Laser and Cutting Lines

Precision and Power: Gantry Loading Systems for Fiber Laser and Cutting Lines

Introduction: Engineered for High-Speed Fiber Laser Demands
The high cutting speeds and exceptional precision of modern fiber laser cutting machines demand equally responsive and reliable material handling. Gantry loading system for Fiber laser and cutting lines are specifically designed to meet this challenge, serving as the perfect symbiotic partner to high-throughput lasers. These systems manage the entire material logistics process, ensuring that the laser’s speed is never compromised by slow manual feeding. They are the backbone of a fully automated fabrication line, capable of supporting everything from thin, delicate sheets to thick plates, making them indispensable for metal service centers and high-volume manufacturers.

System Architecture and Technical Specifications

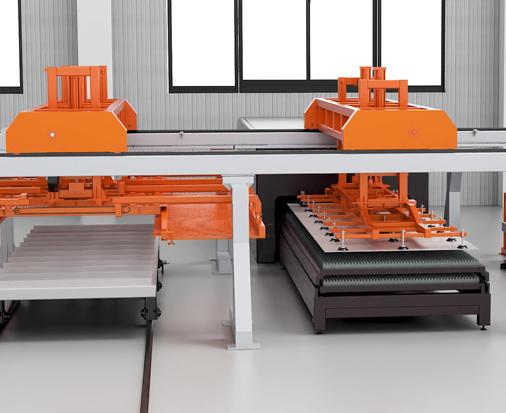

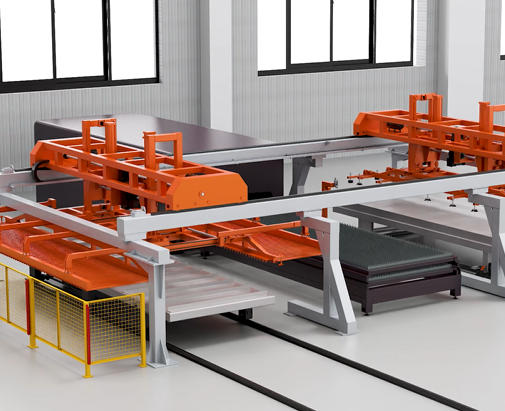

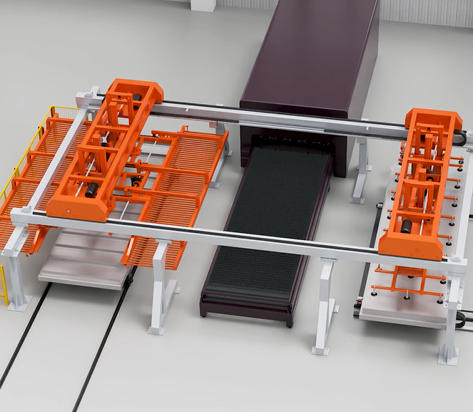

This automation solution is built around a modular and scalable gantry profile laser cutting machine concept. The system’s framework is constructed from heavy-duty aluminum or steel profiles, providing the rigidity needed for high-speed acceleration and deceleration without vibration. Key specifications like a maximum load capacity of 500kg and the ability to handle skid loads up to 3T make it incredibly versatile. The vacuum lifting system is tailored for fiber laser applications, often featuring specialized suction cups that can handle oily or slightly uneven sheet metal commonly processed in fast-paced environments. With standard working ranges like 4020mm or 4025mm, it accommodates the most common sheet sizes, ensuring broad applicability.

Intelligent Control and Smart Features
The true power of this setup lies in its brain: the advanced CNC control system. This hub orchestrates the entire ballet of automation. It synchronizes the movements of the gantry loader with the laser cutter’s CNC, manages the double-layer material car’s indexing, and monitors the vacuum system’s integrity. Features like automatic sheet size detection, collision avoidance algorithms, and remote diagnostics are often integrated. This smart laser automation with auto loading/unloading can store hundreds of job parameters, allowing for quick changeovers between different material types and thicknesses, pushing the envelope towards true flexible manufacturing.

Applications and Industry Impact
The applications for these integrated lines are vast. They excel in producing parts for the automotive, agricultural equipment, and construction industries, where volume and consistency are key. The system’s ability to run unattended for extended periods allows for significant expansion of production capacity without proportional increases in labor or floor space. By creating a continuous flow from raw material storage, through automated loading, precision cutting, and automated unloading, these gantry loading and unloading systems of Laser Cutting Machines minimize work-in-progress and streamline inventory management. They represent a critical step towards the smart factory, delivering not just automated motion, but integrated, data-driven production.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
