Intelligent Vertical Profile Storage Warehouse: Herochu Smart ASRS Technology

Steel pipes, aluminum extrusions, and structural alloy profiles share a common storage problem: they are long, heavy, and prone to deformation when stacked on warehouse floors. Conventional horizontal storage consumes large floor areas, creates material handling bottlenecks, and exposes profiles to warping under their own weight. Herochu engineered the Intelligent Vertical Profile Storage Warehouse to resolve these issues by stacking materials in multi-level vertical towers served by an automated gantry retrieval system.

The result is a storage architecture that reclaims over 50% of facility floor space while protecting material integrity. Instead of spreading storage outward across the plant, the system builds upward — converting a single picking aisle into access for every storage layer.

How the Intelligent System Works

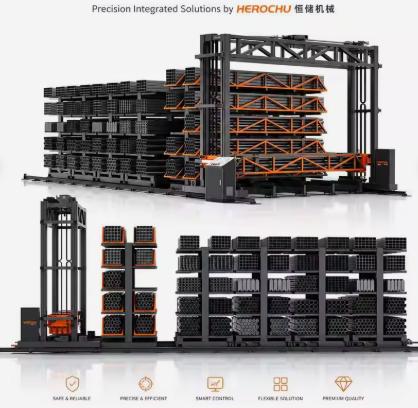

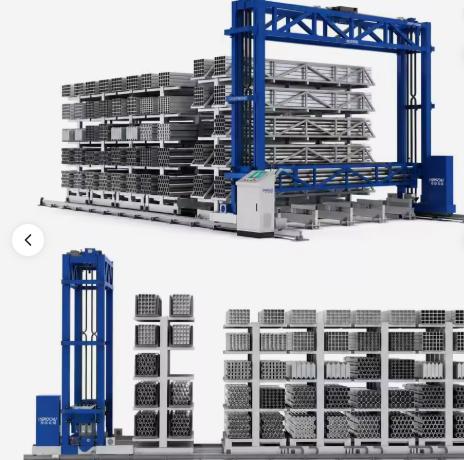

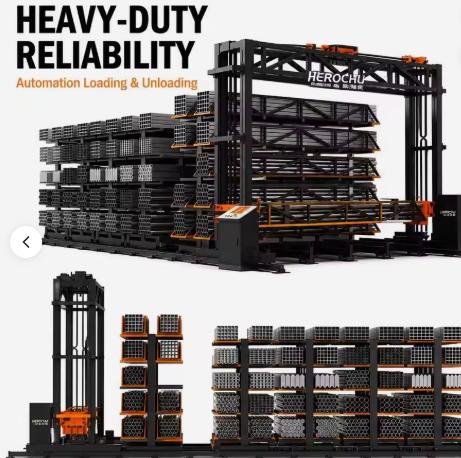

The core mechanism relies on independent shelf movement within a vertical tower structure. Each storage layer holds material bundles in bin cell grids measuring 600 mm × 500 mm, which support long profiles at regular intervals to prevent point-loading deflection and central sagging. A gantry system travels along floor-mounted rails, positioning itself at the correct tower level and layer coordinates to retrieve or deposit material bundles.

What makes the system intelligent is not just the mechanical automation — it is the data layer underneath. A Siemens S7-1200 PLC governs all gantry movements, communicating over PROFINET industrial networks to synchronize mechanical operations with inventory database transactions in real time.

Operators interact with the system through a 12-inch color touchscreen HMI. The interface displays current stock levels, individual bundle locations, storage duration, and retrieval status. When a production order requires a specific profile, the operator selects the material on screen, and the gantry automatically travels to the stored coordinates, retrieves the bundle, and delivers it to the picking station.

Digital Inventory Management

The closed-loop inventory logging system tracks every SKU by location, quantity, and storage duration. This eliminates manual stock counting and spreadsheet reconciliation. Warehouse managers can query the system at any moment to determine how much of a given alloy profile is in stock, where each bundle sits within the tower, and how long it has been stored.

For facilities operating under Smart Manufacturing Execution Systems (MES), the Herochu vertical storage warehouse functions as an active data node. Inventory data flows bidirectionally between the storage PLC and the facility MES or ERP platform. Production scheduling software can trigger automatic material calls — when a laser cutting center requests a specific profile, the storage system receives the order, retrieves the bundle, and stages it for pickup without operator involvement.

Structural Engineering and Load Performance

Herochu designs the tower structures for ton-level industrial loads. Each storage layer supports working loads up to 5,000 kg. The framework uses Q235B high-strength steel, verified through Simsolid and Ansys finite element analysis to confirm structural rigidity under maximum dynamic loading conditions.

Three standard model configurations accommodate different material lengths and tower heights:

• HC-X6053-8: 6,000 mm pipe length, 5 layers, 3,000 kg per level, 8 racks
• HC-X7065-10: 7,000 mm pipe length, 6 layers, 5,000 kg per level, 10 racks
• HC-X8085-10: 8,000 mm pipe length, 8 layers, 5,000 kg per level, 10 racks

All layer counts and rack quantities are customizable to match on-site ceiling clearance and material volume requirements.

Precision Kinematics and Cycle Time

The gantry delivers horizontal travel at 5–30 m/min and vertical lift at 5–15 m/min. Transfer speed during material handoff reaches up to 12 m/min, maintaining pace with continuous production lines. Positioning repeatability holds within ±2 mm — a tolerance that matters when storing high-value alloy profiles where surface contact damage from misalignment is unacceptable.

A typical retrieval cycle completes in under two minutes from order initiation to bundle delivery at the picking station.

Modular Scalability

As production volumes grow, the storage system grows with them. Herochu designs the vertical profile storage warehouse with modular scalability: additional physical layers and software-configured storage zones can be added without rewiring the control architecture or replacing the PLC system. The gantry rails extend along the floor slab to accommodate additional tower sections, and the inventory software reconfigures storage maps automatically.

Application Scenarios

The intelligent vertical profile storage warehouse serves facilities handling long, heavy materials across multiple industrial sectors:

• Steel service centers storing seamless tubes, alloy pipes, and structural profiles
• Aluminum extrusion plants managing finished profiles awaiting anodizing or packaging
• Laser cutting and plasma cutting operations requiring staged material delivery
• Fabrication shops integrating storage with downstream machining cells

Summary

The Herochu Intelligent Vertical Profile Storage Warehouse replaces land-inefficient horizontal storage with a vertically integrated, digitally managed architecture. With per-layer capacities up to 5,000 kg, ±2 mm positioning repeatability, Siemens PLC control, and closed-loop inventory tracking, it delivers measurable gains in space utilization, material protection, and production workflow continuity for industrial facilities managing long, heavy profiles.
