Manual Crank Racks for Steel Bar, Metal Tubing and Pipe Storage

Industrial operations that handle steel bars, metal tubing, and pipes require storage solutions that match the diversity and weight of these materials. The Herochu Manual Crank Steel Bar, Metal Tubing and Pipe Rack delivers a versatile storage platform that accommodates the full spectrum of long materials while maintaining efficient access and organized inventory management.

Comprehensive Material Compatibility

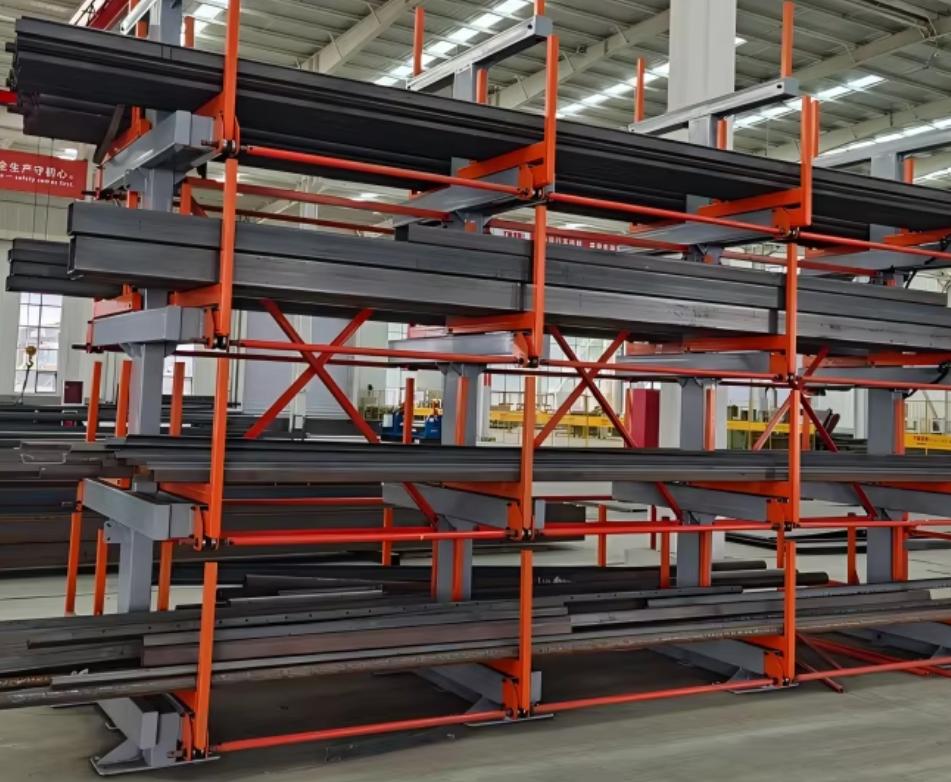

The Herochu manual crank rack handles an extensive range of long materials including solid steel bars, hollow metal tubing, structural pipe, aluminum extrusions, and plastic conduit. This broad compatibility makes the rack suitable for workshops serving multiple industries or handling diverse material inventories. The adjustable tier spacing and customizable compartment configurations ensure that each material type receives appropriate support regardless of diameter or cross-sectional shape.

The rack’s design accommodates both bundled and loose material storage. Bundled materials can be placed directly on the cantilever arms, while loose materials benefit from the containment provided by the compartment structure. This flexibility allows workshops to store materials in their received condition without requiring additional packaging or reconfiguration.

Manual Crank Operation: Access Without Aisle Congestion

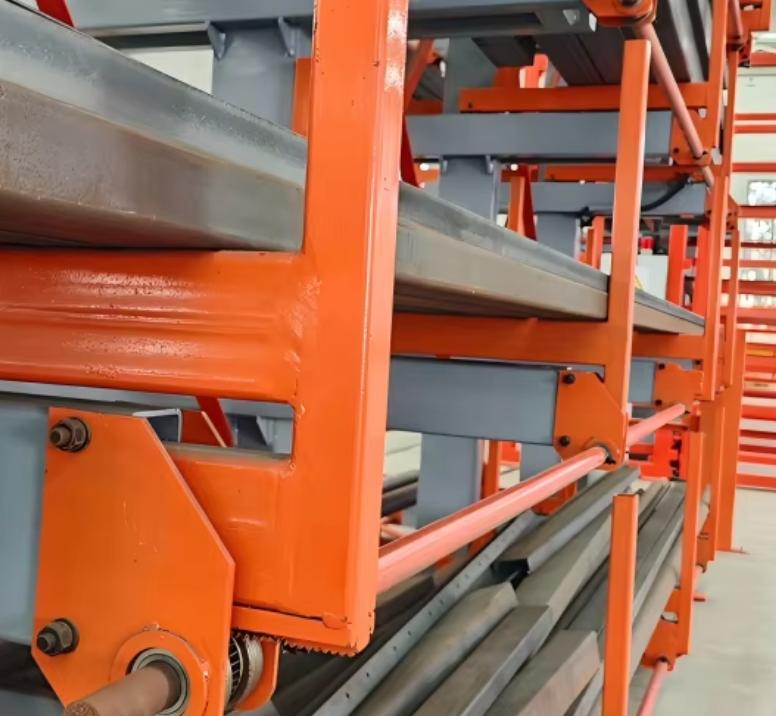

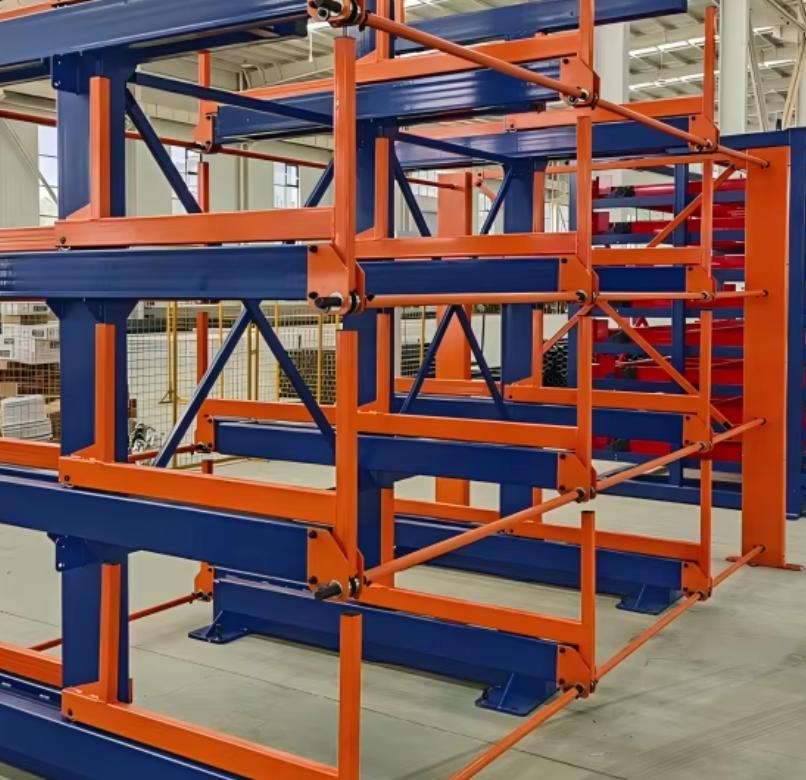

The defining feature of the Herochu system is the manual crank mechanism that enables full arm extension into the aisle. When an operator needs to access a specific material, they simply engage the crank for the corresponding tier and extend the arm into the workspace. This operation brings the material directly to the operator, eliminating the need to reach into the rack or maneuver around fixed obstructions.

The crank mechanism provides a significant advantage over fixed cantilever racks, where operators must reach between arms or use specialized equipment to access stored materials. With the Herochu system, each tier extends independently, providing 100% access to the stored materials on that tier. This full extension capability reduces retrieval time and minimizes the physical strain associated with material handling.

Space Optimization Through Retractable Design

When not in use, the telescopic arms retract to a compact footprint, creating open aisle space that would otherwise be occupied by protruding cantilever arms. This retractable design allows workshops to operate with narrower aisles, potentially increasing overall storage density by reclaiming space that traditional racks would consume.

The space-saving benefits extend beyond aisle width. The rack’s vertical orientation utilizes overhead space that often goes unused in workshops with floor-stacked materials. By storing materials at height while maintaining ground-level accessibility through the crank mechanism, the rack effectively doubles or triples the usable storage capacity of the same floor area.

Load Capacity and Structural Integrity

Herochu manual crank racks deliver impressive load capacities that accommodate the heaviest industrial materials. Depending on configuration, each tier supports between 3,000 and 5,000 kilograms of material. This capacity handles everything from lightweight aluminum tubing to dense steel bar stock, ensuring that the rack remains useful as workshop material requirements evolve.

The structural frame utilizes Q235B high-strength steel with a dual-beam crossbar design. This construction provides exceptional rigidity and resistance to deflection, maintaining stable material support even at maximum rated loads. The robust design also resists the cumulative stress of repeated loading and unloading cycles, ensuring long service life in demanding industrial environments.

Customization for Specific Material Types

Herochu offers extensive customization options to match specific material storage requirements. Tier spacing can be adjusted to accommodate varying material diameters, ensuring that each material type receives appropriate support. The number of tiers can be configured based on workshop ceiling height and storage density requirements.

For workshops handling particularly long materials, the HC-G12065 model accommodates 12,000-millimeter lengths. This extended capacity makes the rack suitable for construction material storage, where 12-meter steel sections are common. For smaller workshops or those handling shorter materials, the 6,000-millimeter HC-G6053 series provides an appropriately sized solution.

Independent Compartments for Organized Storage

Each tier of the Herochu rack provides independent storage compartments on both sides of the central structure. This compartmentalization enables organized storage by material type, size, or project. Steel bars can be separated from tubing, different diameters can be segregated, and project-specific materials can be grouped for easy retrieval.

The independent compartment design also supports visual inventory management. Workers can quickly assess material availability by glancing at the compartments, reducing the time spent searching for specific items. This visual management capability supports lean manufacturing initiatives and improves overall operational efficiency.

Dual-Side Mechanical Assistance

The dual-side mechanical assistance feature streamlines loading and unloading operations. Materials can be loaded from one side of the rack while simultaneously retrieved from the other, maintaining continuous material flow without interference. This capability proves particularly valuable in high-throughput workshops where material movement is constant.

The mechanical assistance also supports crane loading operations. The rack positions materials precisely for crane pickup, reducing the handling time and minimizing the risk of material damage during transfer. This integration with existing material handling equipment ensures that the rack complements rather than complicates workshop operations.

Durability for Long-Term Value

Herochu manual crank racks are built for durability in demanding industrial environments. The Q235B steel frame resists corrosion and wear, maintaining structural integrity even in workshops with high humidity or temperature variations. The mechanical crank components are engineered for repeated use, with wear surfaces designed for long service life.

This durability translates into long-term value for workshop operators. The rack remains functional and reliable for years, providing consistent storage performance without the maintenance issues that plague lesser-quality equipment. The initial investment is amortized over an extended service life, making the Herochu rack a cost-effective storage solution.
