Heavy Duty Hand-Cranked Metal Plate Storage Rack with Precision Slide Rails

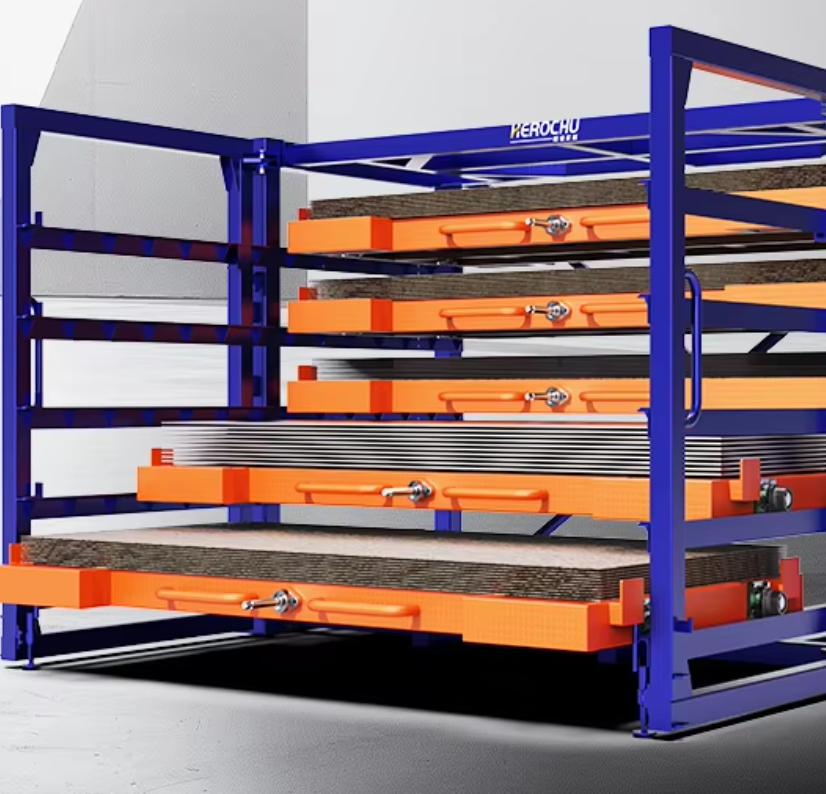

Storing steel plates weighing several tons per sheet presents a logistical bottleneck that few warehouse managers anticipate until the rack is already installed. When a 4-meter steel panel sits buried beneath three other sheets inside a fixed shelf bay, retrieving it demands a forklift shuffle that eats into production time. The solution is not more shelving—it is a drawer-type racking system that lets operators pull any stored layer into open access without disturbing adjacent sheets. Herochu engineered its heavy duty hand-cranked metal plate storage rack around this exact principle, combining manual crank actuation with precision slide rails rated to carry drawer loads that would stall lesser mechanisms.

The hand-crank operates a chain-and-sprocket drive train that translates rotational input into linear drawer extension. Unlike hydraulic or motorized actuators, the manual crank gives the operator direct tactile feedback: resistance increases proportionally with load, so the user senses exactly how the drawer is behaving during extraction. This mechanical transparency eliminates the risk of over-extension or sudden release that can occur with powered systems when a limit switch fails. Every Herochu drawer rack ships with a calibrated crank handle positioned at ergonomic waist height, allowing a single operator to pull out a fully loaded drawer without powered assistance.

Precision Slide Rails Engineered for 8-Ton Drawer Loads

The slide rail assembly is the defining subsystem of any heavy-duty drawer rack. Herochu uses a proprietary rail profile machined from hardened alloy steel with induction-hardened ball tracks. Each drawer rides on four independently adjustable roller carriages, distributing the total drawer weight across sixteen contact points per side. This multi-point load sharing means that even when a drawer carries eight metric tons of sheet steel, the force required at the crank handle stays within the capability of a single adult operator.

What sets Herochu slide rails apart from commodity alternatives is the crown-ground raceway geometry. Conventional linear rails use flat or slightly concave tracks that concentrate contact stress at the roller edges under heavy deflection. Crown-ground tracks taper inward by a few microns toward each shoulder, creating a central contact band that widens as the load increases. At full rated capacity, the contact patch has expanded to cover roughly 70 percent of the roller width, preventing brinelling and surface fatigue even after tens of thousands of open-close cycles. This is the same crown-ground principle used in CNC machine tool way systems, scaled up for industrial storage.

The rail carriages incorporate sealed needle roller bearings rather than ball bearings for the vertical load axis. Needle rollers offer roughly four times the static load rating of equivalent-diameter balls because their line contact geometry distributes force across a continuous surface rather than a single point. This design choice is what allows Herochu to rate its drawers for continuous static loads without the progressive deformation that turns a smoothly operating drawer into one that binds and judders after a few months of daily use.

Anti-Tipping Safety Lock Mechanism

Every heavy duty hand-cranked metal plate storage rack from Herochu includes a spring-loaded locking pin that engages automatically when the drawer reaches either the fully open or fully closed position. The lock pin is a hardened steel plunger driven into a mating socket in the frame by a compression spring, so it engages without operator input. This passive safety design means the drawer cannot drift out of position while a crane operator is positioning a vacuum lift over the exposed plate—an essential safeguard in any facility where personnel work near overhead handling equipment.

To release the lock and retract the drawer, the operator pulls a thumb lever on the crank assembly that retracts the pin via a Bowden cable linkage. The lever must be held continuously during crank rotation; releasing it re-engages the lock at the next detent position. This fail-safe arrangement eliminates the risk of the drawer sliding shut under its own weight if the crank handle slips from the operator’s grip.

Workshop and Warehouse Applications

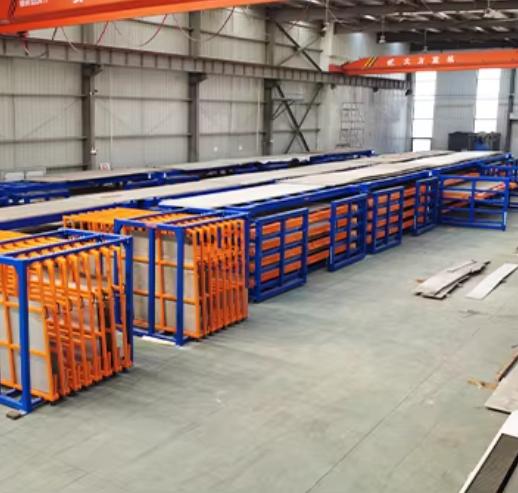

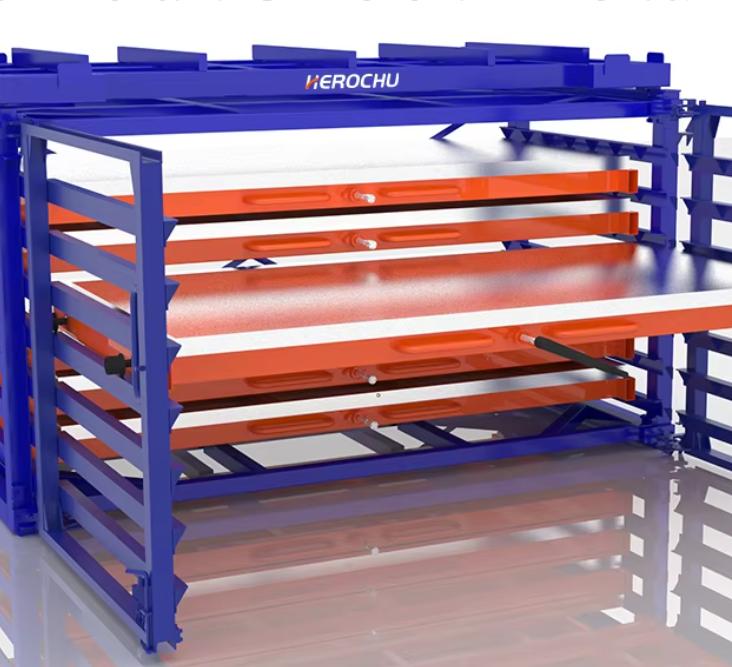

Herochu hand-operated plate storage racks serve fabrication shops, steel service centers, and heavy manufacturing plants where mixed-thickness sheets need to be accessed in production sequence rather than stack order. A typical installation might store 3 mm aluminum sheet on one drawer, 6 mm mild steel on the next, and 12 mm stainless on a third, all within a single vertical bay. The 100 percent fully extendable drawer exposes the entire plate surface to overhead crane hooks or vacuum lifting frames, so no manual repositioning is needed before a lift.

The rack frame is constructed from Q235B structural steel with bolted cross-beam connections that allow the user to adjust drawer spacing during installation or reconfiguration. Each drawer bay is independently rated for up to five metric tons per layer on the standard models, with the heavy-duty variant reaching ten tons per layer for large-format plates up to six meters by two meters. The powder-coated finish on all exposed surfaces protects against the ambient humidity, cutting fluid mist, and occasional chemical exposure common in metalworking environments.

Because the crank-driven extraction uses no electricity, compressed air, or hydraulic fluid, the rack can be installed anywhere in a facility without running utilities. For fabrication shops that lease space or reconfigure production lines periodically, this self-contained operation is a practical advantage: racks can be relocated with nothing more than anchor bolt removal and forklift transport.

Reducing Operator Fatigue and Cycle Time

A hand-cranked drawer that requires excessive force to operate becomes a bottleneck. Herochu addressed this through gear reduction in the crank drive head. The standard ratio provides enough mechanical advantage that the force at the handle rim stays below 15 kilograms even with a fully loaded ten-ton drawer. For facilities that handle particularly heavy or awkward sheet formats, a low-gear option reduces the rim force further by increasing the number of crank revolutions per meter of drawer travel. The trade-off between speed and effort is configurable at order time based on the facility’s typical sheet inventory.

The crank handle itself is a cast steel wheel approximately 300 millimeters in diameter with a knurled grip ring. This diameter was selected because it falls within the optimal ergonomic range for sustained rotational force application by operators of average build. A smaller handle would reduce mechanical advantage; a larger one would force operators to reach above shoulder height during the top portion of the crank rotation, increasing fatigue over repeated drawer cycles.

Quality Assurance and After-Sales Support

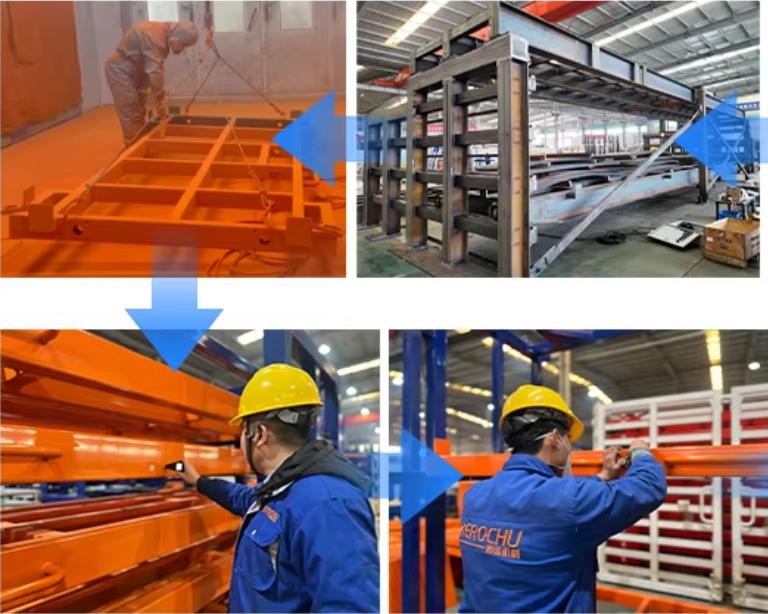

Herochu manufactures these racks in a 16,000-square-meter production facility under ISO 9001 quality management. Each rack undergoes a full-cycle load test before crating: every drawer is loaded to 125 percent of its rated capacity and cycled through ten complete open-close sequences while technicians measure rail deflection and crank torque. Only units that maintain deflection within the design envelope and torque within the ergonomic specification receive a test certificate and CE marking before shipment.

Installation, commissioning, and operator training are available as part of Herochu’s integrated service package. The company deploys its own installation crews rather than relying on third-party riggers, which means the engineers who designed the rack also supervise its placement and alignment. This direct accountability shortens the commissioning timeline and ensures that every drawer operates to specification from the first day of production use.
