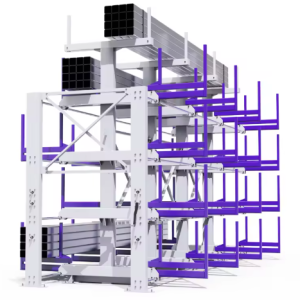

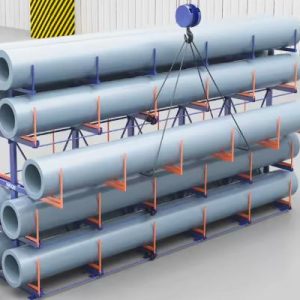

High-Capacity Storage System for Industrial Steel Pipe

The industrial steel pipe presents one of the most persistent storage challenges in material handling. Its cylindrical geometry, extended length, and substantial weight combine to create a logistical problem that conventional pallet racks and shelving units simply cannot resolve. When steel pipes are stacked on the floor—a practice still distressingly common in many facilities—the consequences cascade through every aspect of operations: damaged inventory, unsafe working conditions, wasted floor space, and retrieval times that drain productivity.

Herochu has engineered a definitive answer to this challenge through its High-Capacity Storage System for Industrial Steel Pipe, a cantilever-based architecture that fundamentally reimagines how metal service centers, steel mills, and large fabrication shops manage their tubular inventory.

The Cantilever Advantage: Why Front Columns Are a Liability

The defining characteristic of a cantilever storage system is the complete absence of front vertical columns. This is not a minor aesthetic difference—it is a functional revolution in long goods storage. Traditional pallet racks obstruct end-loading, forcing operators to maneuver 6-meter steel pipes through narrow side channels or resort to cumbersome handling procedures. The Herochu cantilever configuration eliminates these obstructions entirely, allowing overhead cranes or forklifts to access materials from the front with unobstructed horizontal clearance.

This open-front design transforms the storage dynamic. A 6-meter steel pipe can be placed directly onto the cantilever arms without the need for complex angling or multiple handling steps. The result is a dramatic reduction in loading and unloading time, less wear on material handling equipment, and significantly lower risk of accidental pipe damage during placement and retrieval.

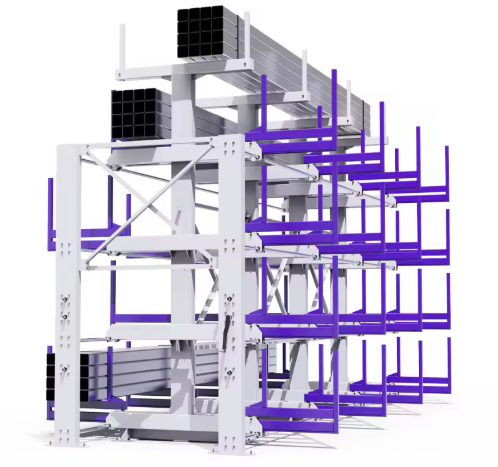

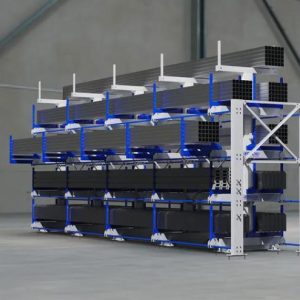

Structural Anatomy of a High-Capacity Pipe Storage System

Understanding the engineering behind a high-capacity storage system requires examining its four primary structural components, each of which must perform under extreme loads.

The Vertical Column (Upright): This is the vertical spine of the entire system. Herochu fabricates columns from high-strength structural steel, typically employing full-walled, hot-rolled IPE steel profiles that deliver exceptional rigidity and resistance to buckling under compression. The column bears the entire vertical load of every cantilever arm and transfers that weight directly to the foundation. Column height is a critical design variable—systems are frequently built from 4 to 8 meters high, creating multiple vertically stacked storage tiers that utilize available ceiling height.

The Cantilever Arms: These extended horizontal beams support the steel pipes directly. For loads in the 3-ton range, arms are fabricated from high-strength H-beam steel or structural I-beams, materials chosen specifically for their resistance to bending under concentrated loads. Each arm is bolted or pinned to the column with custom incline angles that prevent material roll-off—a critical safety feature when storing cylindrical pipes.

Horizontal and Diagonal Bracing: Heavy-duty steel structural members connect vertical columns together, providing essential lateral stability. This bracing prevents system sway and guards against catastrophic domino-effect collapses under multi-ton loads. Without proper bracing, a single overloaded arm could trigger a progressive failure across the entire racking structure.

The Base Frame: An ultra-wide, heavy steel foot bolted directly into the concrete warehouse foundation. The base acts as the primary stabilizing anchor and often serves as the lowest, ground-level storage tier. Proper anchoring is non-negotiable for any system handling 3-ton pipe bundles—unsecured racks present an unacceptable safety risk.

Load Distribution Engineering for 6-Meter Steel Pipes

A 3-ton (6,000-pound) steel pipe bundle cannot be supported by one or two cantilever arms without risking sag, warp, or permanent deformation over time. Proper engineering demands precise load distribution mathematics.

Arm Spacing Requirements: A typical 6-meter bundle requires at least three to four evenly spaced cantilever arms. When a 3-ton load is distributed across four arms, each arm must have a minimum rated capacity of 0.75 tons. This distribution ensures that no single arm bears an excessive proportion of the total weight, preventing localized stress that could lead to arm deflection or failure.

Overhang Management: The material overhang past the outermost arms must never exceed 1.5 meters—roughly one-third of the distance between the arms. Excessive overhang creates a lever effect that multiplies the effective load on the supporting arms, dramatically increasing the risk of bending or catastrophic failure. Engineering calculations must account for this lever effect when determining arm placement.

Deflection Control: Industrial racking standards require structural safety factors typically ranging from 1.5 to 1.9 times the rated load limit. Furthermore, arms must feature a slight upward pitch (approximately 1 to 2 degrees) when unloaded. When a heavy 3-ton bundle is placed on the rack, the natural downward deflection brings the arm perfectly parallel to the ground rather than sloping downward. This seemingly minor detail prevents the gradual accumulation of pipe slippage that could lead to roll-off incidents.

Operational Benefits Beyond Simple Storage

Floor Space Recovery: By moving massive 6-meter bundles from chaotic floor stacks into vertical rows, warehouses can reclaim up to 50 to 75 percent of their footprint. This freed floor space can be reallocated to manufacturing, processing machinery, or safer transit lanes—each square meter recovered represents a direct operational efficiency gain.

100 Percent Selectivity: Traditional floor stacking forces a Last-In, First-Out workflow where workers must move multiple heavy bundles just to reach a specific batch buried at the bottom. The Herochu High-Capacity Storage System offers complete selectivity. Forklift operators can immediately access any specific 3-ton bundle without touching surrounding inventory, drastically reducing material handling times and improving inventory tracking accuracy.

Material Integrity Protection: Heavy steel pipes stored on uneven floors are susceptible to bending or permanent deformation. Ground-level storage also exposes pipes to moisture, leading to corrosion that can render inventory unsaleable. Elevated cantilever arms keep steel dry, straight, and structurally sound, eliminating costly scrap and quality control rejections.

Safety Systems and Material Handling Integration

Essential safety equipment for any high-capacity pipe storage system includes removable pipe stoppages—vertical steel pins inserted at the tip of each cantilever arm to act as physical barriers that prevent round bars or tubes from rolling off the rack. These pins are a simple yet indispensable safeguard against one of the most common cantilever racking failure modes.

Herochu systems are engineered for compatibility with specialized material handling equipment. Side-loader forklifts, designed specifically for long loads, allow operators to carry 6-meter steel parallel to the aisle, drastically narrowing required aisle width. Multi-directional forklifts capable of driving sideways, forwards, and backwards seamlessly navigate narrow spaces. For facilities with overhead gantry cranes, Herochu offers cantilever configurations with open-top roof access, enabling cranes to lift bundles straight out of the racking vertically—eliminating the need for wide drive aisles entirely.

The High-Capacity Storage System for Industrial Steel Pipe from Herochu represents not merely a storage solution but a comprehensive operational transformation. By combining engineering precision with practical material handling considerations, it delivers the throughput, safety, and space utilization that modern steel warehouses demand.
