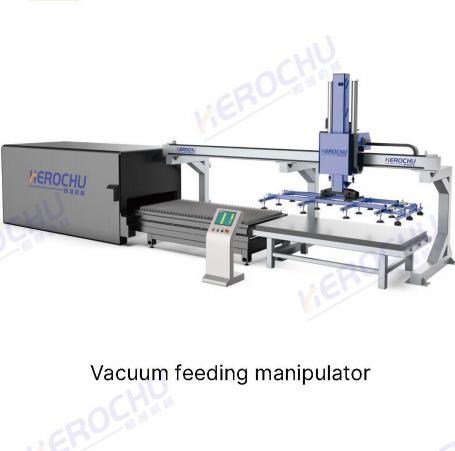

Heavy-Duty Gantry Loader Unloader for Steel Plate Handling — Herochu Industrial Automation

Steel plate handling inside a modern fabrication shop presents a set of challenges that conventional overhead cranes and manual forklift operations cannot fully resolve. Plates arriving at the shop floor measure anywhere from 3,000 × 1,500 mm to 6,000 × 2,500 mm, with individual sheets weighing hundreds of kilograms. Moving these sheets from raw material staging areas onto CNC punching machines, plasma cutting tables, or fiber laser beds demands precision that manual methods struggle to deliver — and speed that directly governs machine utilization rates.

Herochu addresses this bottleneck with a purpose-built heavy-duty gantry type loader unloader system engineered specifically for steel plate workflows. Rather than adapting a general-purpose material handling frame, Herochu designed this platform from the ground up around the mechanical demands of ferrous and non-ferrous sheet handling at industrial scale. The result is an automated loading and unloading solution that cuts idle time between cutting cycles, preserves surface quality through controlled gripping, and integrates vertically with multi-tier storage towers that reclaim up to 70% of the floor space otherwise consumed by flat-stacked inventory.

This article examines the structural engineering, motion dynamics, end-effector technology, and safety architecture that define Herochu’s heavy-duty gantry loader unloader for steel plate applications.

Structural Engineering: The Bilateral Truss Architecture

The mechanical backbone of every Herochu heavy-duty gantry loader unloader rests on a dual-sided overhead bilateral gantry truss design. This is not a cantilevered single-beam frame — a configuration that introduces deflection under load and amplifies vibration during high-acceleration translation cycles. Instead, the bilateral truss distributes structural stress across two parallel load-bearing members fabricated from high-tensile profile steel and heavy rectangular steel tubing.

The practical consequence of this architecture matters at every stage of operation. When the gantry accelerates a 2,500 kg steel plate across a 50-meter-per-minute horizontal traverse, the bilateral frame suppresses the torsional twisting and dynamic resonance that would otherwise degrade positioning accuracy and accelerate wear on linear guide bearings. Stress-relieved weldments eliminate residual internal stresses introduced during fabrication, which means the frame maintains its geometric integrity over years of continuous multi-shift operation rather than gradually deforming as internal stresses release.

Critical mounting faces — the surfaces where linear guide rails bolt to the frame, where rack-and-pinion drive systems mesh, and where vertical lift assemblies anchor — undergo finish machining on large-scale column gantry milling centers. This step ensures absolute parallelism between rail axes across the full span of the machine. Without this precision machining step, even sub-millimeter rail misalignment would generate tracking friction, increase servo motor current draw, and produce premature wear patterns that cascade into positioning errors during automated sheet placement.

The entire moving structure is enclosed in protective industrial sheet metal shrouding. This dual-purpose design serves as a physical barrier against the flying metallic debris, oil mist, and abrasive dust particles that saturate the air around plasma and laser cutting stations, while simultaneously providing structural safety for operators working in proximity to the gantry’s travel envelope.

Motion Dynamics: Speed Without Sacrifice

Horizontal translation on Herochu gantry systems employs variable-frequency servo motors coupled with heavy-duty linear guide rails and ground rack-and-pinion drive mechanisms. This configuration achieves travel speeds of up to 50 meters per minute across the X and Y axes — a pace that outruns standard CNC shuttle table cycles and ensures the gantry completes its loading or unloading sequence before the processing machine finishes its cutting cycle.

Vertical lifting along the Z-axis relies on synchronized pneumatic cylinders or high-torque hydraulic rams, depending on the payload class of the specific installation. Lift speeds range from 9 to 12 meters per minute, which translates to a full vertical stroke of roughly two to three seconds for typical storage tower pick-and-place operations. The choice between pneumatic and hydraulic actuation reflects a deliberate engineering trade-off: pneumatic systems offer faster cycle times and cleaner operation for shops with compressed air infrastructure already in place, while hydraulic configurations deliver the sustained holding force required for the heaviest 5-ton-per-layer payload applications.

High-resolution encoders on every driven axis provide sub-millimeter repeated positioning accuracy. This precision is not merely a specification on a data sheet — it prevents the kind of part-nesting misalignments and cutting-head collisions that occur when a sheet lands even a few millimeters off its programmed coordinate on the machine bed. For shops running nested layouts where dozens of parts share a single plate, accurate placement directly determines whether cutting paths intersect part boundaries or remain within scrap zones.

End-Effector Technology for Steel Plate Handling

The end-effector assembly on Herochu’s heavy-duty gantry loader unloader represents the critical interface between the machine and the material. Steel plates present specific gripping challenges that lighter material handling systems are not designed to address: surface oil films from the rolling mill, stacked sheet adhesion, and the risk of surface marring on finished or coated materials.

Herochu addresses these challenges through a zoned vacuum suction matrix. The end-effector carriage mounts a field of oil-resistant vacuum suction cups arranged in a grid pattern with adjustable spacing. Operators or the control system can physically reconfigure cup positions to match the geometry of plates ranging from 3,000 × 1,500 mm up to 6,000 × 2,500 mm. This adjustability prevents the common problem of oversize suction cup arrays overhanging plate edges on smaller sheets, which would bleed vacuum pressure and risk dropping the load.

The vacuum manifold splits into independently controlled sectors through the Siemens PLC interface. This zoned architecture makes it possible to activate only the suction cups positioned over solid material, while deactivating zones that fall over cut-out areas, pre-cut part nests, or the skeletal scrap frame remaining after laser cutting. Maintaining full vacuum pressure on a skeletonized sheet — where perhaps 40% of the original plate area has been removed as finished parts — requires this selective activation capability; a non-zoned manifold would lose grip the moment cutting was complete.

For the specific problem of oil-film adhesion between stacked steel plates, Herochu integrates automated sheet separation routines into the loading cycle. The gantry executes a micro-flexing motion — a controlled, small-amplitude bending of the top sheet — combined with localized compressed air injection between plate layers to break the surface tension that causes sheets to cling together. Integrated thickness sensors or magnetic proximity detectors confirm single-sheet pickup before the gantry proceeds with the transfer. If a double-sheet condition is detected, the cycle pauses and the system re-executes the separation routine rather than attempting to load two plates simultaneously onto the machine bed.

A pneumatic rotary axis integrated into the end-effector carriage enables 90-degree rotation of the gripped sheet mid-transit. This capability matters when the raw material storage orientation differs from the required processing orientation — for instance, when plates stored lengthwise in a tower must be rotated to match the transverse feed direction of a specific laser cutting machine.

Safety Architecture and Load Management

Herochu heavy-duty gantry loader unloader systems carry CE compliance certification and are designed to meet ISO 9001 quality management standards. The safety architecture operates on multiple independent layers.

Fail-safe check valves on all pneumatic gripping circuits maintain holding pressure even during a complete shop air supply failure. This means a sudden compressor shutdown does not result in a dropped steel plate — a scenario that would create immediate operator danger and material damage. The check valves lock pressure in the closed circuit until power or air pressure is restored under controlled conditions.

LiDAR path scanners monitor the gantry’s travel envelope in real time, detecting obstacles, personnel, or misplaced equipment in the machine’s path. When the scanner identifies an intrusion, the system executes a controlled deceleration rather than an abrupt emergency stop, which would risk shifting or dropping the payload. Perimeter safety light curtains create defined exclusion zones around the automated work area, with interlocks that prevent automatic cycle restart until the zone is verified clear.

Integrated load cells mounted in the vertical lift assembly weigh the gripped material before each transfer cycle. This weight data serves two functions: it prevents the system from attempting to lift a load exceeding its rated capacity, and it feeds inventory tracking data into the control system for real-time material consumption monitoring. A discrepancy between expected and measured weight triggers an operator alert — a practical safeguard against double-sheet loading, incorrect material grade substitution, or plate thickness mismatch.

Factory Floor Integration and ROI

The economic case for automating steel plate handling with a Herochu gantry loader unloader centers on machine utilization rates. In a typical manual-handling shop, CNC punching machines and laser cutting tables spend 30% to 50% of each shift idle — waiting for an operator to crane-load the next plate, clear finished parts, or remove scrap skeletons. By transforming material handling into a parallel background process that executes while cutting continues, Herochu systems compress this idle time toward zero.

The system operates in a one-to-two configuration: a single gantry serves two processing machines simultaneously. While one machine cuts, the gantry retrieves the next raw sheet from storage, stages it above the waiting machine, and loads it the moment the cutting cycle completes and the table opens. On the return traverse, the gantry reclaims the finished cut parts or scrap skeleton from the second machine and deposits them in the designated output zone. This continuous loop eliminates the sequential delays inherent in manual handling.

Vertical storage integration completes the automation picture. Herochu gantries interface directly with multi-tier cantilever storage towers holding 8 to 13 or more levels, each tier rated for 3,000 kg to 5,000 kg payloads. By stacking plates vertically rather than spreading them across the shop floor, these automated storage and retrieval systems (AS/RS) reclaim roughly 70% of the floor area that flat-stacked inventory would occupy — space that can be repurposed for additional processing equipment or improved workflow layout.

For shops running unattended night shifts, the combination of automated loading, unloading, and vertical storage enables genuine lights-out manufacturing. Raw material loaded into the storage tower during the day shift feeds the gantry through the night, with the control system tracking inventory depletion and pausing operations when pre-programmed material limits are reached.

Conclusion

Heavy steel plate handling represents one of the highest-ROI automation targets in a fabrication environment, precisely because it consumes so much operator time and machine idle capacity under manual methods. Herochu’s heavy-duty gantry loader unloader system replaces that manual bottleneck with a structural, kinematic, and control architecture purpose-built for ferrous sheet handling at production scale. The bilateral truss frame suppresses deflection under load, the zoned vacuum end-effector handles everything from solid plates to skeletonized scrap, and the Siemens PLC-driven control matrix enables continuous multi-machine coordination with documented safety compliance. For fabrication shops evaluating their next step toward automated material flow, this platform provides a direct path to higher spindle utilization, lower per-part handling cost, and the floor space efficiency that vertical storage integration unlocks.
