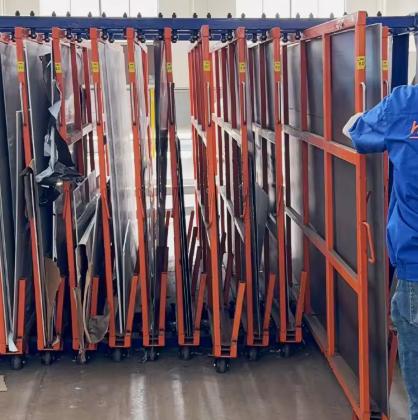

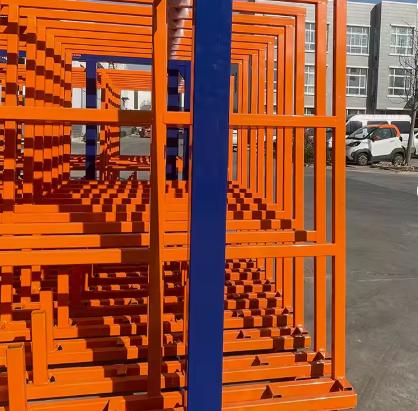

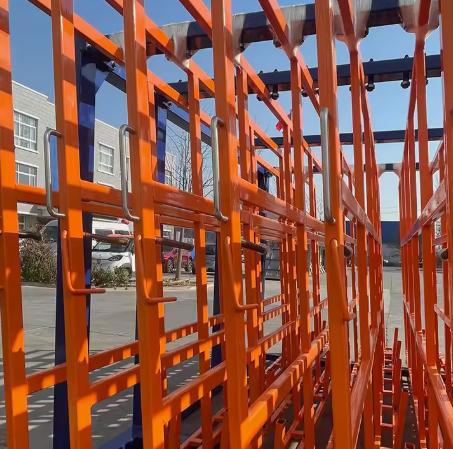

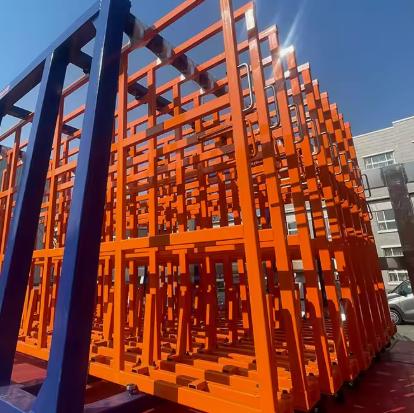

Heavy-Duty Vertical Pull-Out Rack with Multi-Layer Shelves

Modern metal fabrication facilities face a persistent challenge: storing large quantities of sheet material in a way that maintains accessibility while maximizing floor space utilization. Traditional horizontal stacking consumes vast floor areas and makes material retrieval a labor-intensive process. Fixed shelving systems offer organization but lack the flexibility to accommodate varying sheet sizes and weights. The Herochu Heavy-Duty Vertical Pull-Out Rack with Multi-Layer Shelves addresses these limitations through an engineering approach that prioritizes density, accessibility, and adaptability.

The Multi-Layer Advantage

The multi-layer configuration of Herochu vertical pull-out racks transforms storage efficiency by utilizing vertical space that would otherwise remain unused. Each rack accommodates up to fifteen independently operating pull-out shelves per section, with standard configurations offering eight layers as a baseline. This vertical density enables facilities to store substantial material volumes within a footprint as small as 2700mm in length.

The engineering behind the multi-layer design ensures that each shelf remains at a practical, operable height. Operators retrieve material from the top drawer as easily as from the bottom because full extension and smooth roller bearing operation do not degrade with elevation. This consistent performance across all layers eliminates the accessibility problems that plague traditional tall shelving systems.

Each independently sliding shelf acts as a heavy-duty drawer, capable of handling immense weights. The structural integrity of the system ensures that loaded shelves operate smoothly without binding or sagging, even under maximum capacity conditions.

Customizable Configuration for Diverse Material Types

The Herochu multi-layer pull-out rack system offers extensive customization options to match specific operational requirements. Layer count can be adjusted based on material types and storage volumes, with configurations ranging from standard eight-layer setups to expanded fifteen-layer systems.

Sheet dimensions accommodate standard industrial sizes including 2500mm × 1000mm and 3000mm × 1500mm, with custom dimensions available for specialized applications. The clear space between layers can be adjusted from the standard 60mm to accommodate thicker materials or facilitate specific handling equipment.

Removable holding dividers provide additional organization flexibility. These adjustable support arms can be reconfigured to secure odd-shaped remnants or sensitive metals such as stainless steel or titanium alloys without surface scratching. This adaptability ensures that the storage system evolves alongside changing inventory requirements.

Pull-out directions support either front-back or left-right drawer motion, allowing workshop managers to match specific spatial layouts, aisle widths, and machinery clearance requirements. This directional flexibility maximizes the utility of available floor space in facilities with irregular layouts or constrained aisle ways.

Load Capacity and Structural Performance

The heavy-duty designation of Herochu vertical pull-out racks reflects genuine engineering capability rather than marketing terminology. Each roll-out drawer safely supports up to 1000 kg (approximately 2200 pounds), enabling high-density steel plate storage across demanding manufacturing environments.

Constructed from structural grade steel, these racks maintain structural integrity under the heaviest loads. The robust steel frame is reinforced at key stress points, ensuring long-lasting durability even with frequent use and heavy loads. Unlike lightweight storage racks that require regular replacement, Herochu systems are built to last, providing a reliable storage solution that protects investment and reduces long-term costs.

The all-welding process delivers exceptional structural integrity, ensuring the racks can bear several tons of steel sheets without compromising stability. This construction quality is particularly important in high-throughput environments where racks experience constant loading and unloading cycles.

Workflow Integration and Efficiency Gains

The Herochu multi-layer pull-out system integrates seamlessly with existing workshop operations. The 100% pull-out drawer access allows overhead cranes, vacuum lifters, and manual handling equipment to load and unload materials without obstruction. This accessibility eliminates the bottlenecks associated with deep shelving or stacked storage.

Single-person operation is a defining feature of the system. Smooth rolling mechanisms enable one operator to retrieve or load heavy metal sheets safely, drastically lowering labor costs and reducing machine idle time during setup operations. This efficiency is particularly valuable in CNC workshops where machine downtime directly impacts production throughput.

The visual inventory control provided by layered vertical storage eliminates stock guesswork and reduces searching times. Operators can quickly assess available material and select appropriate sheets without the need for inventory management systems or time-consuming physical counts.

Quality Assurance and Global Standards

Herochu multi-layer pull-out racks are produced in ISO9001-compliant facilities and carry CE certification. Each system undergoes strict pre-shipment structural load testing to verify performance specifications. This commitment to quality ensures that every rack delivered meets the demanding requirements of industrial applications.

With over 15 years of engineering experience and global installation support, Herochu serves industries ranging from aerospace and automotive to railway and heavy machinery fabrication. The combination of German-engineered durability with customizable Asian manufacturing efficiency delivers storage solutions that balance performance with cost-effectiveness.

The Herochu Heavy-Duty Vertical Pull-Out Rack with Multi-Layer Shelves provides the ideal solution for facilities seeking to maximize storage density while maintaining exceptional material accessibility. For workshops committed to lean manufacturing principles and operational efficiency, this system delivers the organization and performance needed to compete in demanding industrial environments.
