Fully Automatic Sheet Metal Storage & Handling System for Laser Cutting Machines

Fully Automatic Sheet Metal Storage & Handling System for Laser Cutting Machines

In high-mix, variable-volume sheet metal manufacturing, managing physical material inventory effectively is critical to success. Traditional storage methods—such as horizontal floor staging, cantilever arm racks, and manual forklift transport—lead to disorganization, material damage, and lengthy setup times. The Herochu Fully Automatic Sheet Metal Storage & Handling System for Laser Cutting Machines provides a comprehensive answer, replacing fragmented material handling with a digitized, automated logistics matrix.

Category Automated Handling and Storage Solutions Tag Fully Automatic Sheet Metal Storage & Handling System for Laser Cutting Machines

Fully Automatic Sheet Metal Storage & Handling System for Laser Cutting Machines

Evolution of Modern Sheet Metal Storage & Logistics

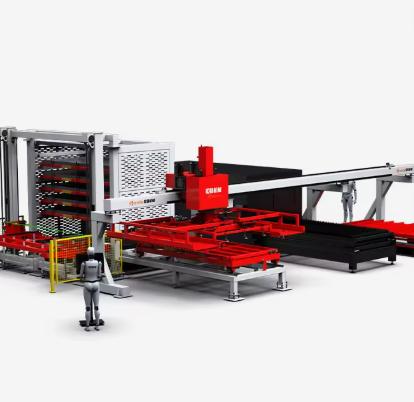

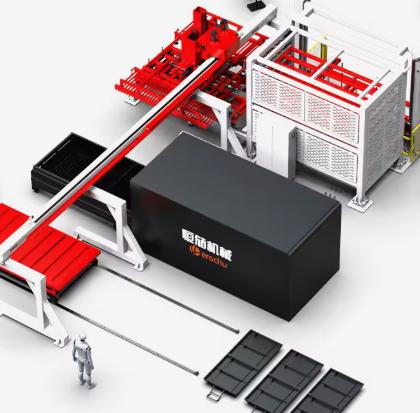

This intelligent system bridges the gap between raw material staging and laser cutting execution. By uniting automated vertical storage towers (ASRS), motorized material shuttles, and integrated machine interfaces under a central software brain, Herochu turns traditional fabrication shops into streamlined Industry 4.0 smart factories.

System Architecture & Technical Specifications

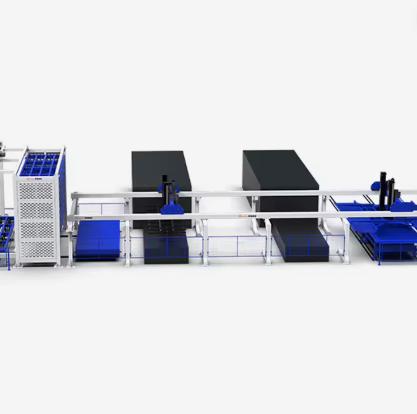

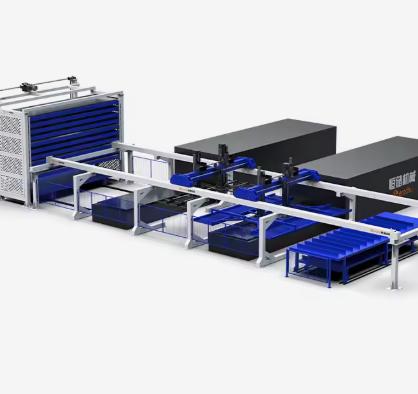

Herochu sheet metal storage and handling systems are built using modular engineering principles. Whether deployed as a single storage tower serving one laser cutter or as a multi-tower system feeding an entire row of machines, the equipment maintains strict positioning accuracy and high dynamic stability.

Technical Performance Matrix

Engineering Metric	HC-A3015-83	HC-A4015-85	HC-A4020-85	HC-A6020-105	Custom Options
Max Sheet Dimensions	3000 × 1500 mm	4000 × 1500 mm	4000 × 2000 mm	6000 × 2000 mm	Up to 6000 × 2500 mm
Storage Tower Layers	8 Levels	8 Levels	8 Levels	10 Levels	Expandable
Pallet Load Capacity	3,000 kg	5,000 kg	5,000 kg	5,000 kg	Heavy-Duty Construction
Vertical Shelf Clearance	350 mm	350 mm	350 mm	350 mm	Tailored to plate range
Material Transit Velocity	5–15 m/min	5–15 m/min	5–15 m/min	5–15 m/min	Smooth VFD Drive
Max Single Sheet Mass	500 kg	500 kg	500 kg	500 kg	Suction Lifter Rating
Loading Arm Speed (Horiz.)	10–30 m/min	10–30 m/min	10–30 m/min	10–30 m/min	Servo Driven
Loading Arm Speed (Vert.)	5–10 m/min	5–10 m/min	5–10 m/min	5–10 m/min	Synchronized Hoist
Fork Actuation Speed	5–20 m/min	5–20 m/min	5–20 m/min	5–20 m/min	Rapid Mechanical Clamping

Core Digitalization: Herochu WMS & WCS Intelligence

The backbone of the Herochu Fully Automatic Sheet Metal Storage & Handling System for Laser Cutting Machines is its software suite. Designed to seamlessly link enterprise management with shop-floor machinery, the software acts as a central operational controller.

Enterprise Software Connectivity (ERP/MES): The Herochu WMS continuously synchronizes with plant management software. As purchase orders or production nests are generated, material requisitions trigger automated retrieval without manual operator data entry.
Real-Time Inventory Visibility: Fabricators maintain full traceability over stock levels. The system monitors plate dimensions, thicknesses, material certifications, heat numbers, and precise shelf locations in real time.
Automated Batch Management & Remnant Tracking: Off-cut sheets and reusable remnants are assigned unique tracking codes and stored in designated tower locations, ensuring expensive alloy remnants are fully utilized before new sheets are cut.

End-to-End Material Flow & Process Integration

The fully automatic material lifecycle within a Herochu-equipped facility follows a streamlined path:

Intake & Automated Placement: Raw sheet packs enter the facility and are loaded onto a heavy-duty entry cart. The Herochu stacker crane elevates the material tray and stores it in an open vertical slot.
On-Demand Material Supply: When a specific laser cutting job is queued, the stacker crane automatically retrieves the correct tray and transports it to the automated loading station.
Gentle Suction Pickup: A multi-zone vacuum system lifts the top sheet, verifies thickness with integrated sensors, and delivers it onto the cutting machine exchange table.
Post-Cut Automated Unloading: Once laser processing concludes, comb forks lift the cut sheet and skeleton frame clear of the machine, transferring them to downstream sorting or storage stations.

Key Advantages of Herochu Automated Handling Systems

Maximum Floor Space Utilization

By taking sheet storage vertical, Herochu systems condense loose floor stacks into a compact footprint, freeing up to 80% of floor space. This opens valuable floor area for additional processing stations without expanding facility footings.

Continuous Unattended Manufacturing

With material storage and loading completely automated, laser cutting machines run continuously through lunch breaks, shift changes, and overnight shifts. This automated operation boosts annual machine output significantly.

Zero Surface Damage on Delicate Alloys

Manual plate handling often causes friction scratches and edge damage on stainless steel, aluminum, and brass. Herochu vacuum lifters grip material clean from above, protecting pristine surface finishes throughout the handling cycle.

Operator Safety & Ergonomics

By removing operators from manual plate rigging and heavy crane handling, Herochu systems reduce workplace injury risks and create a clean, safe manufacturing environment.

Strategic Value for Modern Fabricators

In an increasingly competitive global market, sheet metal manufacturers must optimize material throughput and cut unit costs. The Herochu Fully Automatic Sheet Metal Storage & Handling System for Laser Cutting Machines provides the operational efficiency, software intelligence, and physical reliability necessary to convert standalone cutting tools into an integrated, highly profitable manufacturing engine.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
