Gantry Type Panel Handling Machine for Laser Cutting Automation

In precision sheet metal fabrication, the gap between raw material storage and the cutting machine has traditionally been bridged by manual labor—operators using overhead cranes, forklifts, or manual lifting equipment to move heavy steel plates from storage racks to the laser cutting bed. This approach is not only slow and labor-intensive but also introduces risks of panel damage, operator injury, and inconsistent production flow. Herochu’s Gantry Type Panel Handling Machine addresses these challenges through purpose-engineered automation that combines heavy-duty gantry robotics with intelligent control systems.

The Gantry Type Panel Handling Machine Architecture

The Herochu Gantry Type Panel Handling Machine is a high-performance automation solution built around a structurally rigid overhead gantry frame that spans across the storage and loading area. The gantry structure supports transverse movement of the composite manipulator, enabling coverage of the entire storage and loading footprint.

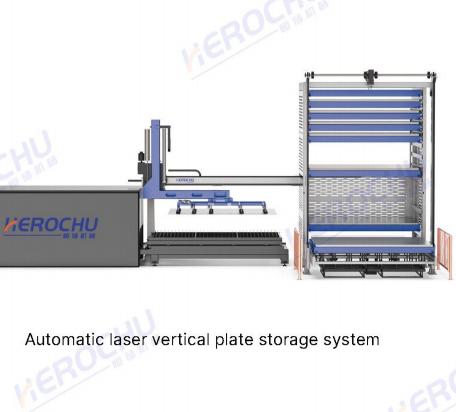

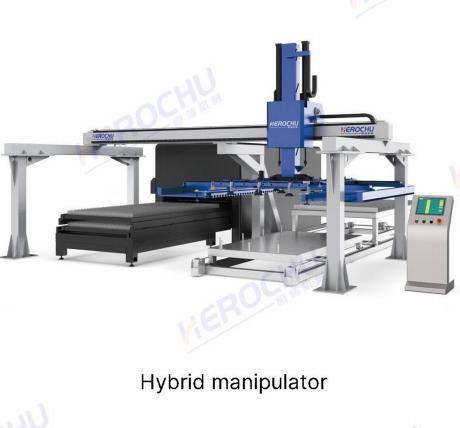

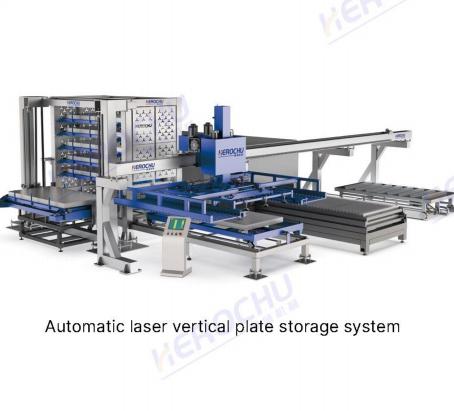

The system integrates several specialized subsystems: a three-dimensional double-tower storage warehouse that keeps raw materials clean, organized, and ready for instant access; a bilateral gantry truss that provides a smooth path of travel for the robotic manipulators; a loading and unloading composite truss manipulator optimized for high-capacity lifting and sensitive sheet manipulation; a double-layer finished material truck designed to receive finished parts and scrap sheets; and a PLC control network that oversees safety sensors, tracks sheet locations, and synchronizes perfectly with the cutting machine.

Precision and Power in Panel Handling

The Gantry Type Panel Handling Machine is engineered for both precision and power. The manipulator incorporates advanced handling technologies: computer-controlled vacuum suction for automatic loading with precise sheet positioning and separation, and gripper mechanisms for automated unloading.

Key technical specifications include:

• Sheet Dimensions: 2500×1300 mm, 3000×1500 mm, 4000×1500 mm, 4000×2000 mm, and 6000×1500 mm

• Maximum Load Capacity: 300 kg to 500 kg depending on model

• Robot Arm Traverse Speed: 10–30 m/min

• Lifting Speed: 5–10 m/min

• Fork Adjustment Speed: 5–20 m/min

• Repeatability: ±2 mm

• Air Supply: 0.6–0.7 MPa

The system handles sheets from 3000×1500 mm up to 6000×2500 mm, with maximum sheet weights of 500 kg per lift. This combination of precision and power enables the Gantry Type Panel Handling Machine to handle the full spectrum of sheet metal types: stainless steel, aluminum, mild steel, pre-coated blanks, and specialty alloys.

Automated Panel Handling Workflow

The Herochu Gantry Type Panel Handling Machine executes a complete sequence of automated tasks: centralized three-dimensional storage, automatic sheet separation, automatic feeding, and automatic blanking. The result is an end-to-end automated production process requiring minimal human intervention.

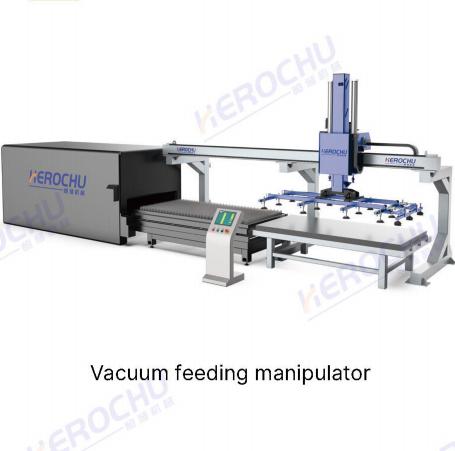

The loading process is fully computer-controlled: a matrix of vacuum suction cups lifts the top sheet cleanly off the stack and transfers it to the laser cutting bed with precise positioning. Integrated sheet separation technology prevents double-pick or sheet sticking. For unloading, gripper mechanisms automatically remove cut parts and scrap skeletons from the cutting bed.

Multi-Machine Synchronization

What distinguishes the Herochu Gantry Type Panel Handling Machine from simpler automation solutions is its ability to synchronize with multiple laser cutting machines simultaneously. The system coordinates material retrieval, loading, cutting, and unloading across multiple machines, creating a fully automated production center that operates with minimal human intervention.

In a 1-to-2 multi-machine configuration, a single gantry or truss manipulator can span overhead rails to service two fiber laser cutting machines simultaneously, doubling production efficiency within the same floor plan. This multi-machine synchronization delivers several operational advantages: end-to-end automation from storage to finished part staging; continuous material flow that eliminates machine idle time; and unified control through a single PLC system that governs all robotic and machine operations.

Integration with Smart Factory Environments

The Herochu Gantry Type Panel Handling Machine is designed for seamless integration into smart factory environments. The system features universal PLC controls with touch-screen HMIs, supporting standard fieldbus protocols including PROFINET, EtherNet/IP, and Modbus for instant connectivity with major CNC brands.

Integrated fail-safe vacuum valves, interlock protections, and real-time sensor diagnostics prevent dropping loads during power interruptions or pressure losses, ensuring safe and reliable operation. The system is certified to CE, UE, and ISO 9001 standards, guaranteeing quality and reliability in demanding industrial applications.

Operational Benefits

The Herochu Gantry Type Panel Handling Machine delivers measurable operational improvements: reduced manual handling that eliminates physical strain and safety risks; superior panel protection through computer-controlled vacuum suction and precise positioning; and continuous production workflow that enables sustained, high-throughput operation.

By replacing manual crane lifting and dangerous heavy handling, fabricators reduce labor costs, eliminate machine idle time, minimize scrap rate, and achieve rapid return on investment through round-the-clock “lights-out” manufacturing.
