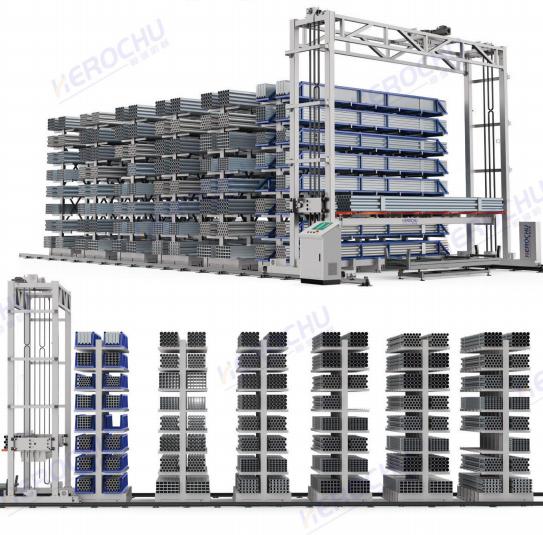

Fixed Vertical ASRS Storage System for Steel Profiles

A fixed vertical ASRS storage system for steel profiles offers steel service centers a permanent, high-throughput backbone for long-goods inventory. Where mobile systems provide layout flexibility, a fixed installation maximizes structural rigidity, lifting speed, and storage density within a dedicated bay. The Herochu fixed vertical ASRS is engineered for warehouses that have settled their process flow and now need the highest possible storage capacity and retrieval accuracy in a defined footprint.

Permanent Foundation, Maximum Structural Performance

Because a fixed vertical ASRS does not travel on rails, its columns are anchored directly to a reinforced concrete foundation engineered for the static and dynamic loads of long steel profile handling. The Herochu design uses Q235B high-strength steel columns with welded base plates, anchor bolt arrays sized for pull-out resistance, and Simsolid-verified cross-bracing. Without the constraint of rail-mounted mobility, the frame achieves greater torsional stiffness and sustains heavier cumulative shelf loads across taller rack structures.

Taller columns mean more storage levels. Where a conventional profile warehouse stores material on two or three floor-level racks, a fixed Herochu vertical ASRS routinely builds to eight, twelve, or more levels within the same ceiling height. The storage density per square meter of footprint can reach four to six times that of horizontal staging.

Material Handling Architecture

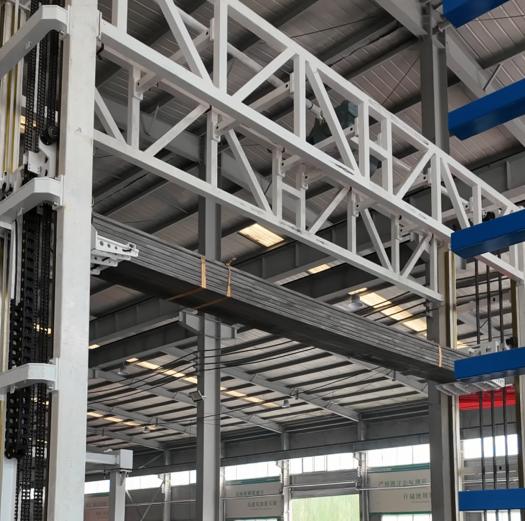

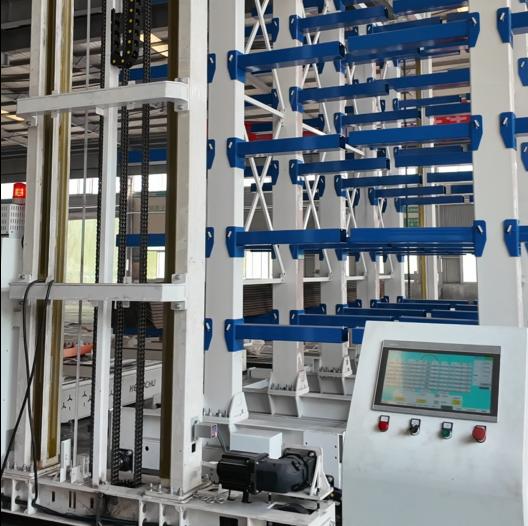

The fixed system centers on a vertical lifting carriage that travels between the rack columns on precision guide rails. The carriage carries a material handling unit — telescopic forks, chain-driven shuttle arms, or specialized profile cradles depending on the material mix — that extends into each rack compartment to deposit or retrieve bundles.

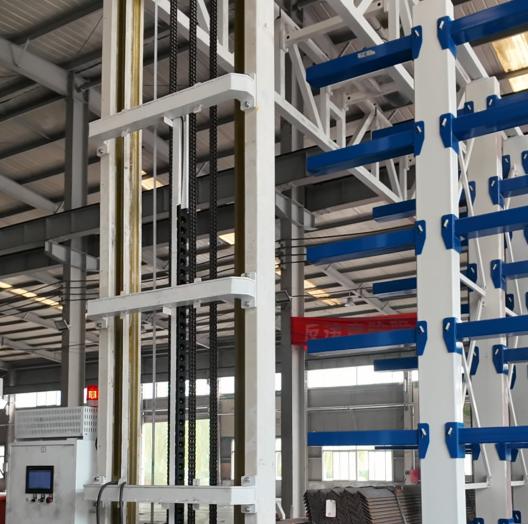

Servo motors with closed-loop position control drive the vertical lift. A rack-and-pinion or heavy-duty chain mechanism provides the lifting force, rated for the full working load of the longest steel profile bundles. Positioning repeatability holds within ±2 mm across all levels, which matters when downstream sawing or punching lines require precisely staged raw material.

WMS Integration for Profile-Specific Inventory

Steel profiles are not generic stock. A round bar differs from a square section, which differs from an aluminum extrusion, which differs from a copper busbar. Each has a different length, cross-section, grade, and retrieval priority. The Herochu WMS treats every bundle as a unique inventory record — length, weight, material grade, heat number, customer order reference, and storage timestamp.

When a production order calls for twenty bars of a specific grade at a specific length, the WMS identifies the correct storage location, confirms the bundle identity at retrieval, and releases it to the loading station. No manual verification. No miscounts. No shipping the wrong grade to a customer.

Throughput and Retrieval Strategy

Fixed installations excel at sustained throughput. Because the lifting carriage follows a predictable vertical path without horizontal travel, cycle times are shorter than mobile configurations. The Herochu system typically completes a full store-or-retrieve cycle in well under two minutes for mid-range shelf heights.

The WMS optimizes retrieval sequencing through dynamic slotting. Fast-moving profiles migrate to the most accessible levels during low-traffic periods. Slow-moving stock sinks to deeper locations. The result is a self-optimizing warehouse where retrieval time improves as the system learns operational patterns.

Engineered for the Long Term

A fixed vertical ASRS is a twenty-year investment. The Herochu design reflects that horizon. Drive components are selected for continuous-duty cycles. Wear items — guide rollers, lift chains, fork assemblies — are accessible from maintenance platforms integrated into the rack structure. Control cabinets use sealed enclosures rated for the dust and oil mist typical of steel service environments. The Siemens S7 PLC platform supports long-term spare availability and straightforward integration with existing ERP systems.

When Fixed Is the Right Choice

Choose a fixed vertical ASRS when the warehouse layout is settled, when throughput requirements are high, when the material mix is broad but stable, and when the priority is extracting maximum storage capacity from a defined footprint. The Herochu fixed vertical ASRS storage system for steel profiles delivers the structural performance, inventory precision, and sustained retrieval speed that a permanent steel service operation demands. It is the infrastructure that turns a profile warehouse into a profile distribution engine.
