High-Density Profile Steel Racks for Bars, Pipes & Angles

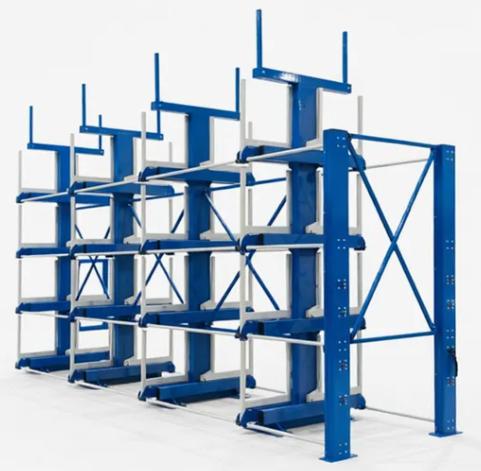

The term “high-density” in industrial storage has a precise meaning: maximizing the cubic volume of material stored per square meter of floor space while maintaining full selectivity—the ability to retrieve any item without moving others. For steel bars, pipes, and angles, achieving high density without sacrificing selectivity requires a rack architecture that addresses the conflicting demands of vertical stacking and horizontal access. Herochu’s high-density profile steel rack system resolves this conflict through independent compartment design, dual-side accessibility, and telescopic extraction.

The Density Equation

Floor stacking of steel bar stock achieves high density in the crudest sense—material occupies the minimum possible volume. But density without selectivity is not storage; it is warehousing. Retrieving a specific bundle from a floor-stacked pile requires moving every bundle above it, a process that consumes labor hours and creates damage risk with each handling operation.

Traditional cantilever racks improve selectivity by providing horizontal access to each tier. But they compromise density in two ways. First, the aisle required for forklift or crane access consumes floor area that could otherwise store material. Second, the fixed arms occupy horizontal space even when not loaded, preventing the rack from achieving the material-to-air ratio of a solid stack.

Herochu’s high-density approach addresses both compromises. The telescopic mechanism reduces the required aisle to the depth of one extended arm, typically 1.0–1.2 meters. When arms are retracted, the rack footprint is essentially the column depth plus the stored material width. For a double-sided rack, that means two storage faces share a single column line, with no wasted space between them.

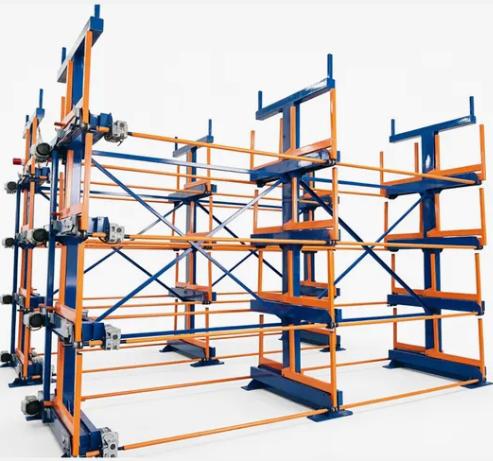

Independent Compartments per Tier

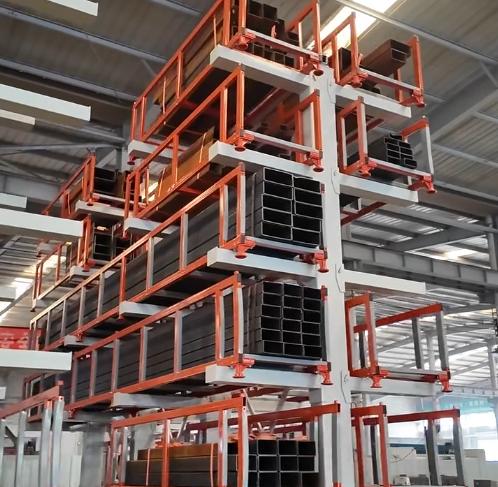

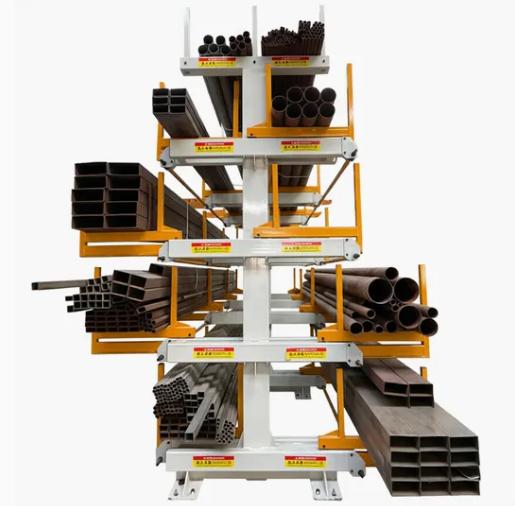

The density claim depends on the ability to store different material types and sizes within the same rack framework. Herochu’s independent compartment design divides each tier into dedicated storage slots on both sides of the column. A single 6-meter bay might contain:

• Tier 1 left: 3-ton bundle of 50mm solid round bar

• Tier 1 right: 2-ton bundle of 100×100mm angle iron

• Tier 2 left: 1.5-ton bundle of 80mm OD pipe

• Tier 2 right: 2.5-ton bundle of 60×40mm rectangular tube

Each compartment is isolated. Loads in adjacent compartments do not contact each other. Retrieval from one compartment does not disturb material in any other compartment.

This classification storage capability is what transforms a rack from a simple shelving unit into a managed inventory system. Instead of searching through mixed piles for a specific material, the operator consults the compartment assignment and retrieves directly.

Dual-Beam Crossbar and Structural Efficiency

The structural key to high-density cantilever storage is the dual-beam crossbar design. In a conventional cantilever rack, each arm attaches to the column at a single point. The moment load—the force that tries to pull the arm downward and away from the column—concentrates at that attachment. Increasing arm capacity requires either a larger, heavier attachment or a reduction in load.

Herochu’s dual-beam design adds a horizontal tie between adjacent arms on the same tier. This tie transforms the individual arms into a structural group. The moment load from one arm partially counteracts the moment from its neighbor. The result is higher capacity per arm without increasing column size, and greater resistance to progressive deflection under cyclic loading.

For high-density applications, this structural efficiency means more tiers per column height and more arms per tier without exceeding the column’s load rating. A rack that might be limited to four tiers with single-attachment arms can support five or six tiers with the dual-beam configuration.

Space Utilization Metrics

Herochu’s high-density rack systems typically achieve floor space savings of 40–60% compared to floor stacking and 25–35% compared to traditional fixed cantilever racks. The exact figure depends on material mix, rack height, and the aisle space required by the facility’s handling equipment.

For a 12-meter bay storing 150×150×8mm steel angle at 2.1 tons per bundle:

• Floor stacking: 15 m², bottom-access-only retrieval

• Traditional cantilever: 8 m² plus permanent 3-meter aisle

• Herochu telescopic: 4.5 m² plus retractable 1.2-meter aisle

The Herochu configuration stores nine bundles in 4.5 m²—a 3.3× density improvement over floor stacking and 100% selectivity.

Material Versatility

The high-density rack platform accommodates the full range of long stock: steel bars (round, square, flat, hexagonal), pipes (seamless, welded, structural), angles (equal and unequal leg), channels, and I-beams. The adjustable compartment system allows the same rack to transition from one material mix to another without structural modification. Arm heights adjust in 50–100mm increments; compartment dividers reposition along the arm; polyurethane pads replace bare steel for softer materials.

This versatility matters for steel service centers and job shops where the inventory mix changes with market demand and contract awards. A rack installed for structural angle storage can be reconfigured for pipe storage in a single shift, preserving the capital investment through changing business conditions.

Operational Efficiency and Safety

The mechanical-assist crank mechanism serves density indirectly by reducing the labor and risk associated with high-tier access. An operator at ground level extends the arm, loads or unloads material, and retracts the arm. No climbing, no reaching, no working at height. The constrained movement path prevents loads from swinging into adjacent compartments or into the aisle.

For facilities using overhead cranes, the extended arm provides a fixed target for the crane hook, eliminating the coordination challenge of placing a swinging load into a narrow fixed-rack opening. The crane operator positions the bundle over the extended arm; the ground operator cranks the arm inward. This division of labor reduces the communication errors that cause collision damage in dense storage environments.

Certification and Quality Assurance

Herochu manufactures these rack systems under ISO 9001 quality management protocols. Every load-bearing weld undergoes visual and dimensional inspection before finishing. Completed racks carry CE and EU compliance markings, confirming structural design, material traceability, and safety factor calculations meet European standards.

Load testing is performed on representative configurations before shipment. The test verifies that deflection under full rated load stays within design tolerances and that the structure returns to true position when unloaded. This pre-shipment verification eliminates the uncertainty that accompanies field-assembled racking where installation quality varies with crew skill.
